View the Tunnel Establishment Status

{{ $t('productDocDetail.updateTime') }}: 2026-04-29

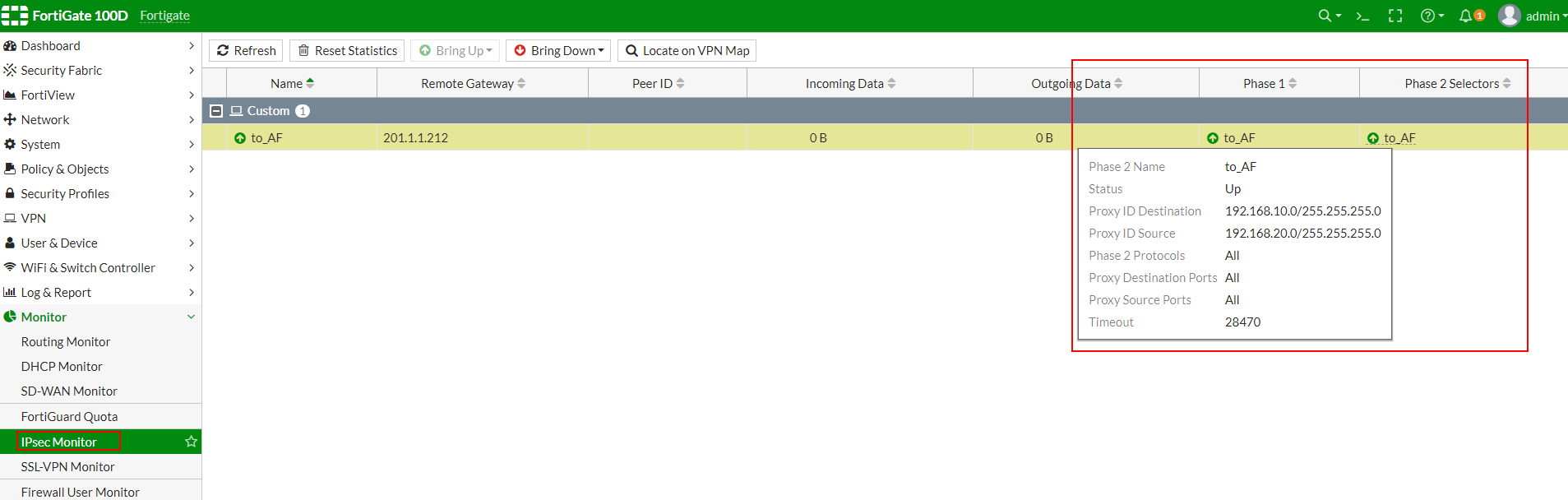

• As shown in the following figure, you can view that the IPsec VPN tunnel has been established on the Fortinet firewall.

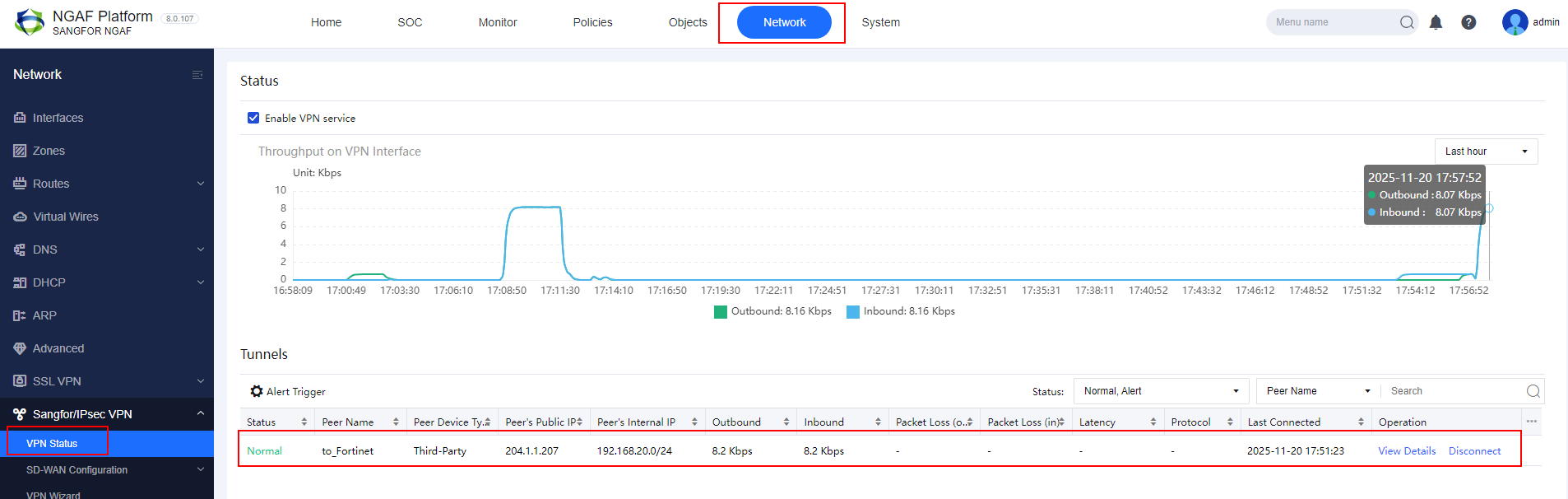

• As shown in the following figure, you can view that the IPsec VPN tunnel has been established on the Athena NGFW firewall.

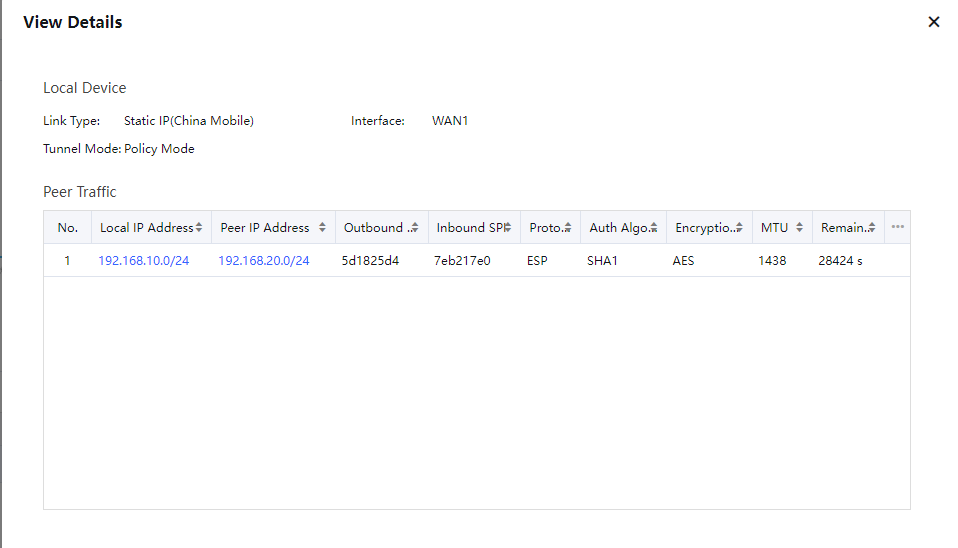

Click View Details to view the tunnel details.

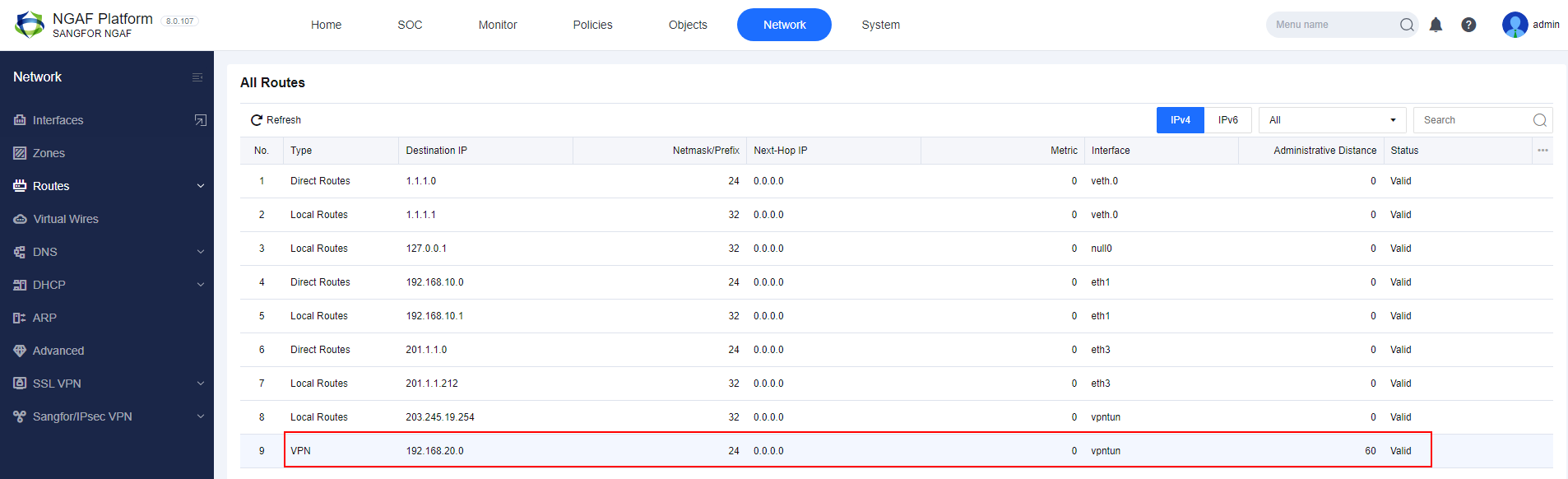

On the All Routes page, you can view that a route to access peer-end PC2 has been automatically generated.
