Topology

{{ $t('productDocDetail.updateTime') }}: 2026-04-29

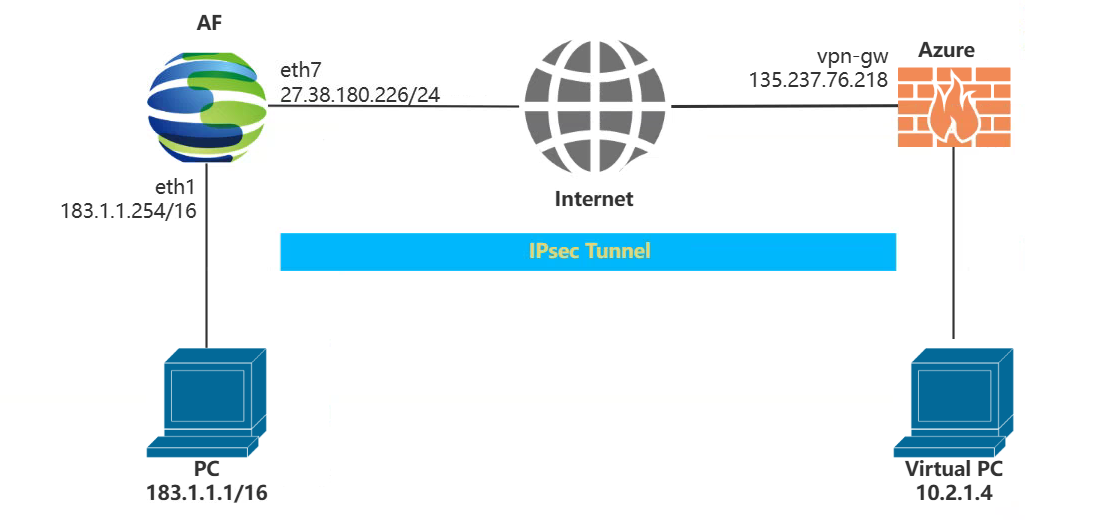

As shown in the following figure, Sangfor's Athena NGFW firewall and Microsoft Azure's virtual network gateway are connected to the Internet as the enterprise's HQ gateway and branch gateway, respectively. An IPsec VPN tunnel in route mode is established between the Athena NGFW firewall and Microsoft Azure's virtual network gateway to secure communication between the PC connected to the Athena NGFW firewall and the virtual machine inside Microsoft Azure.

Firewall version:

Firewall

Version

Description

Athena NGFW

V8.0.107

This topology applies to Athena NGFW V8.0.107 and later.
