Scenario

You can use this tool for the following purposes: check the online status and health of the hardware of HCI nodes before delivery;

Check whether delivered devices are damaged;

Check the health of a test device to be replaced.

Steps

1. Enter aDeploy and click the Toolkit tab.

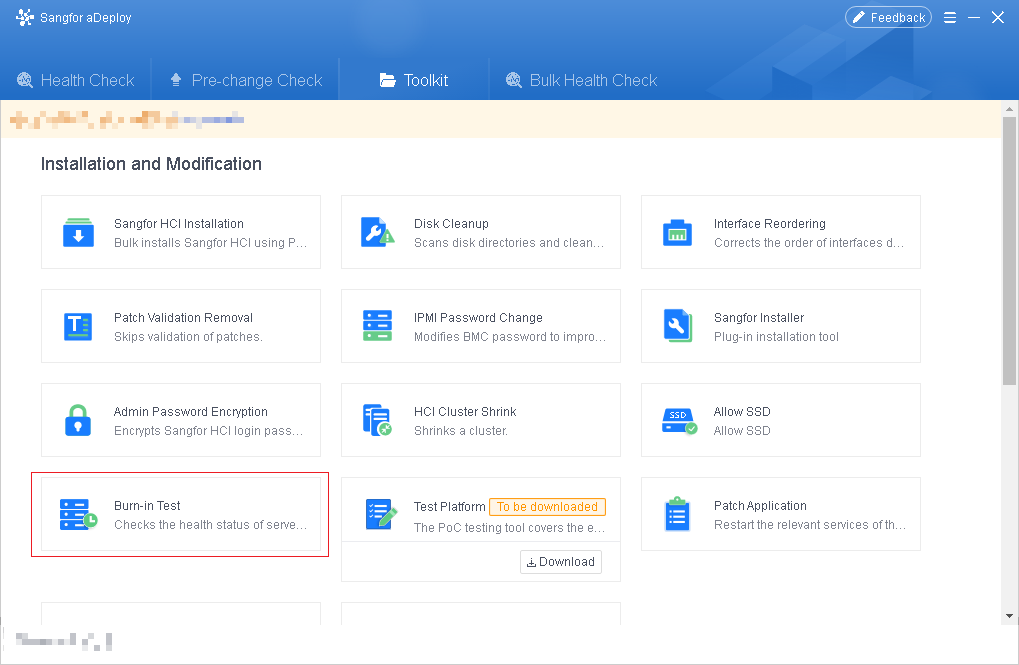

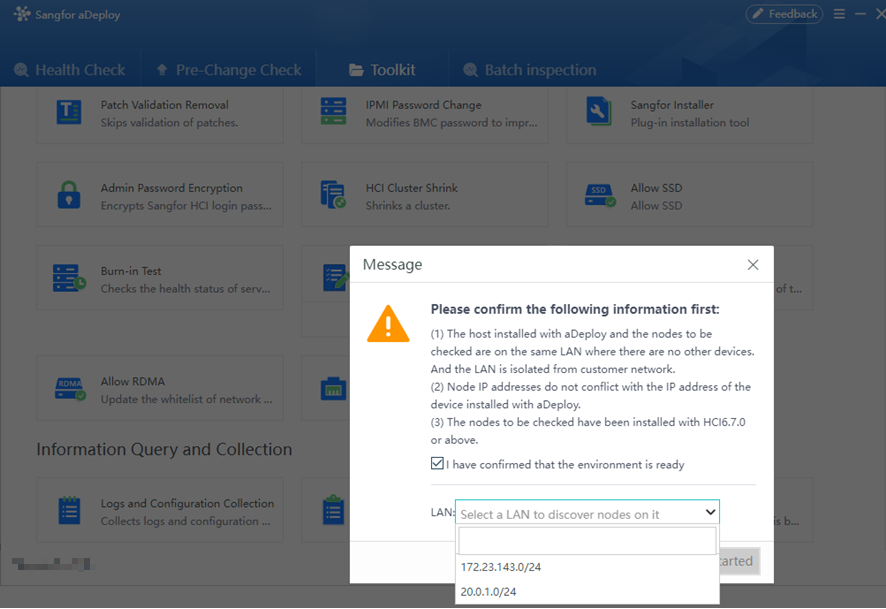

2. In the Installation and Modification section, click Burn-in Test. In the pop-up window, select I have confirmed that the environment is ready, select a LAN, and click Get Started.

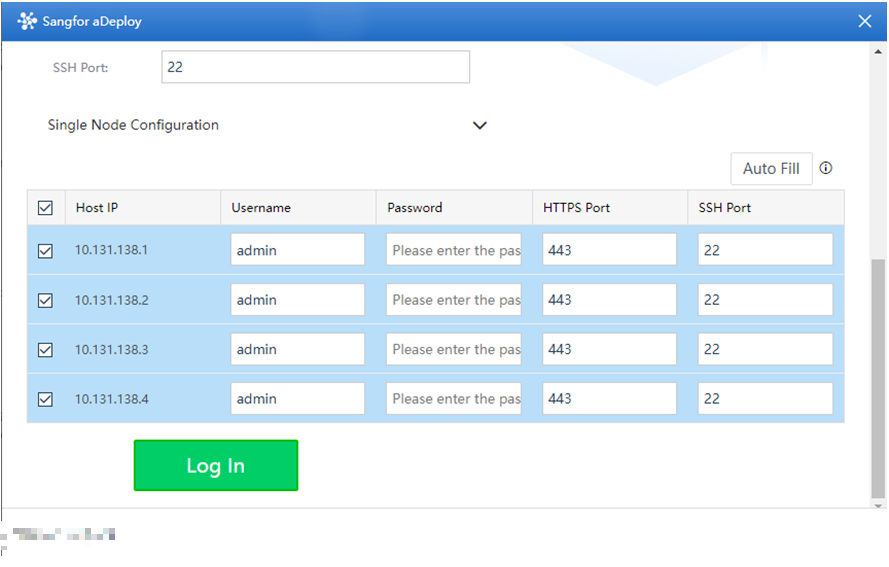

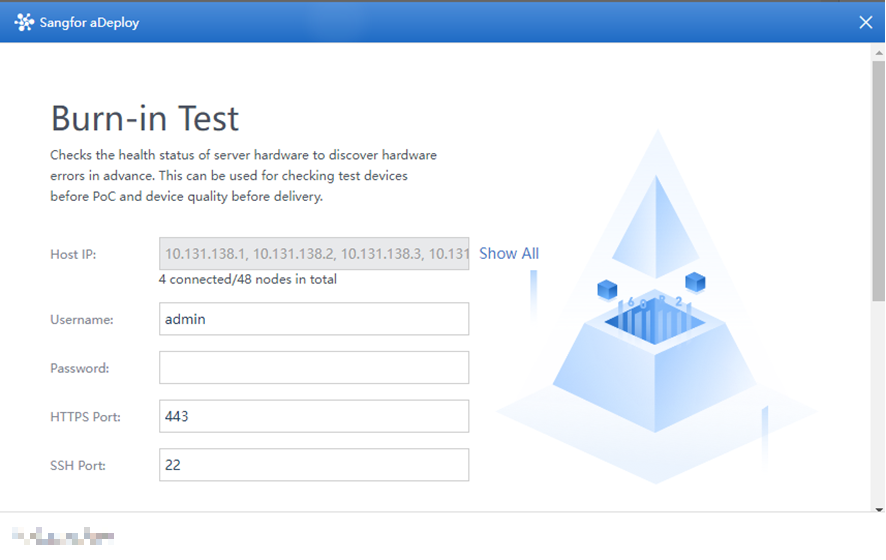

3. On the displayed page, enter the environment information. If the information of a node needs to be modified, click Show All, enter the information separately, and click Log In.

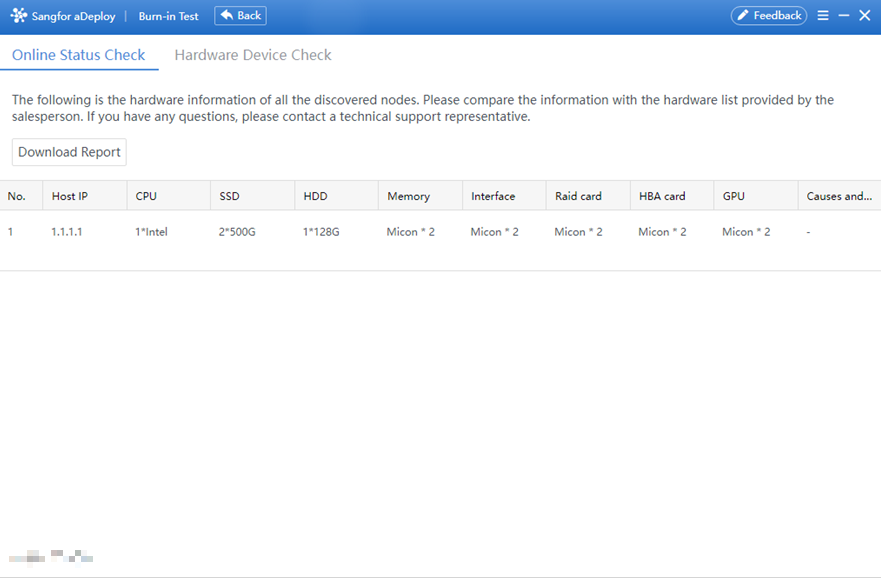

4. After login, click the Online Status Check tab and view the hardware status of the server.

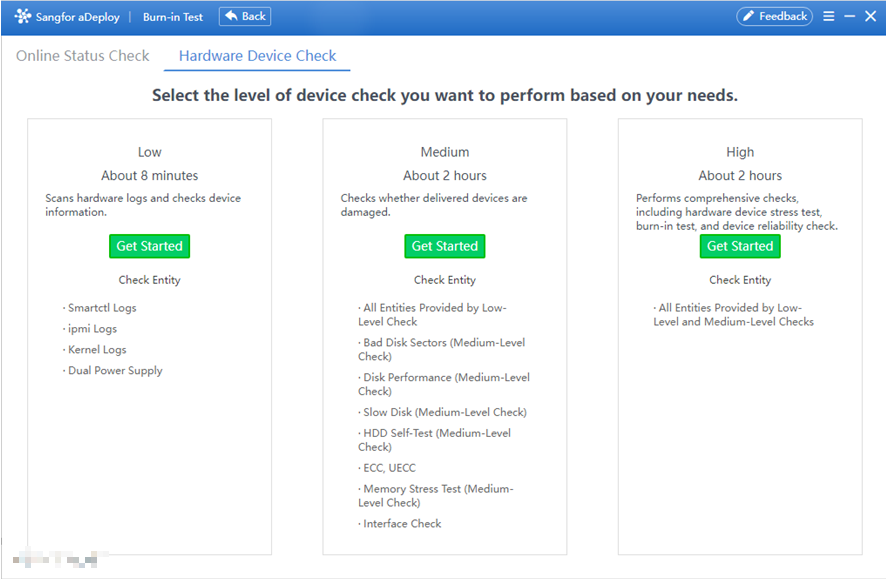

5. Click the Hardware Device Check tab and then click Get Started for the check you want to perform.

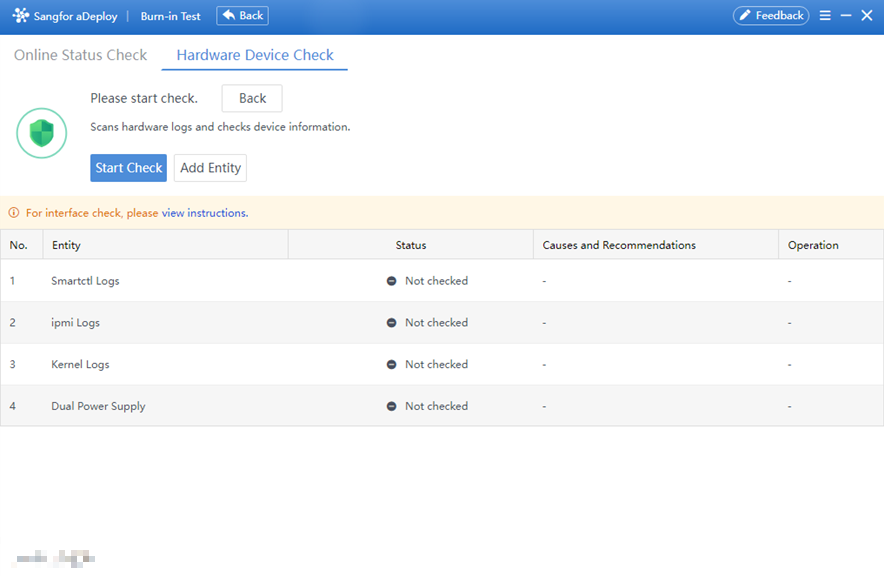

6. Click Start Check.
