Procedure

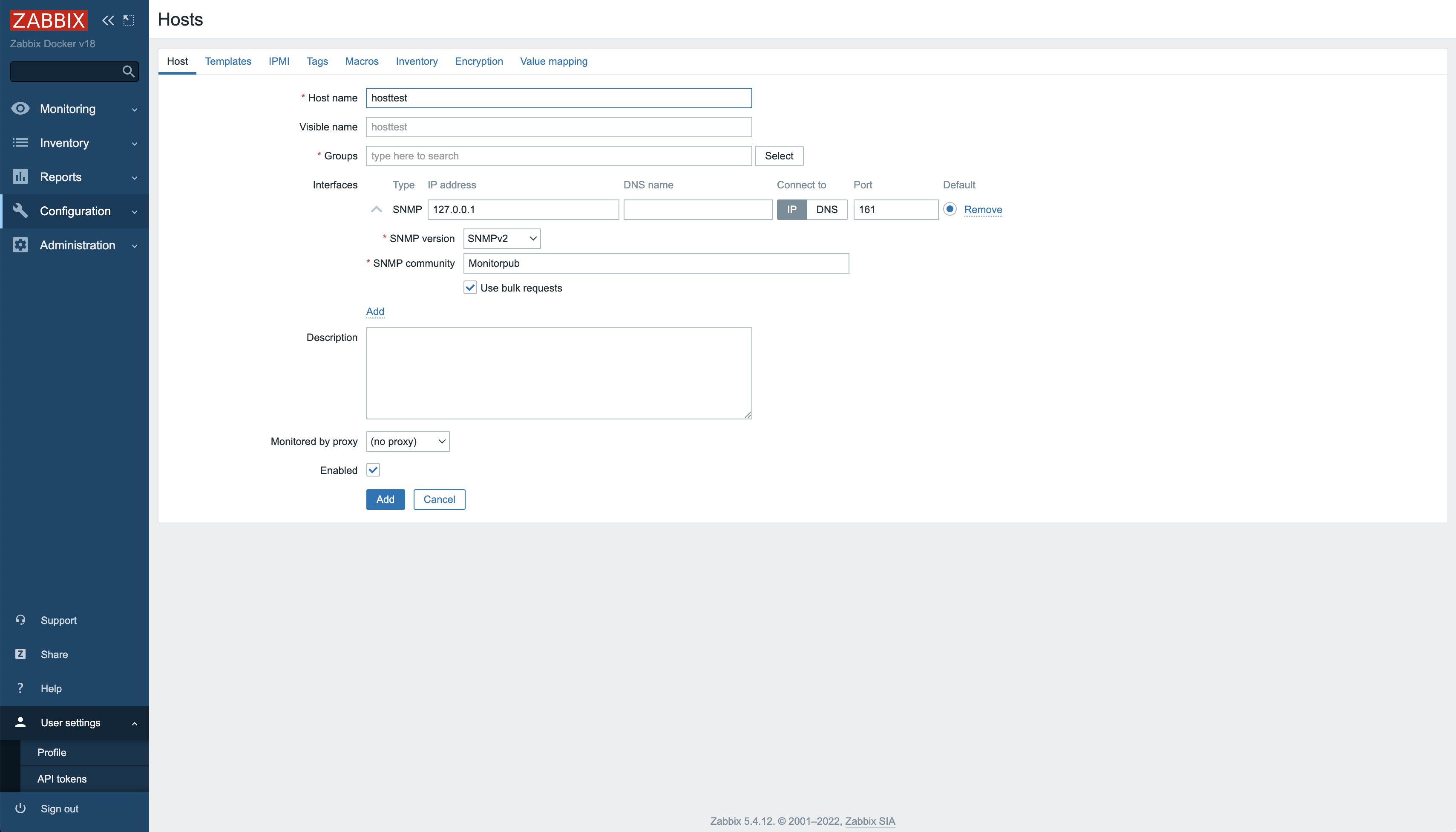

1. After you complete the above steps, specify the SCP IP address, port, SNMP version, and SNMP community name, as shown in the figure below.

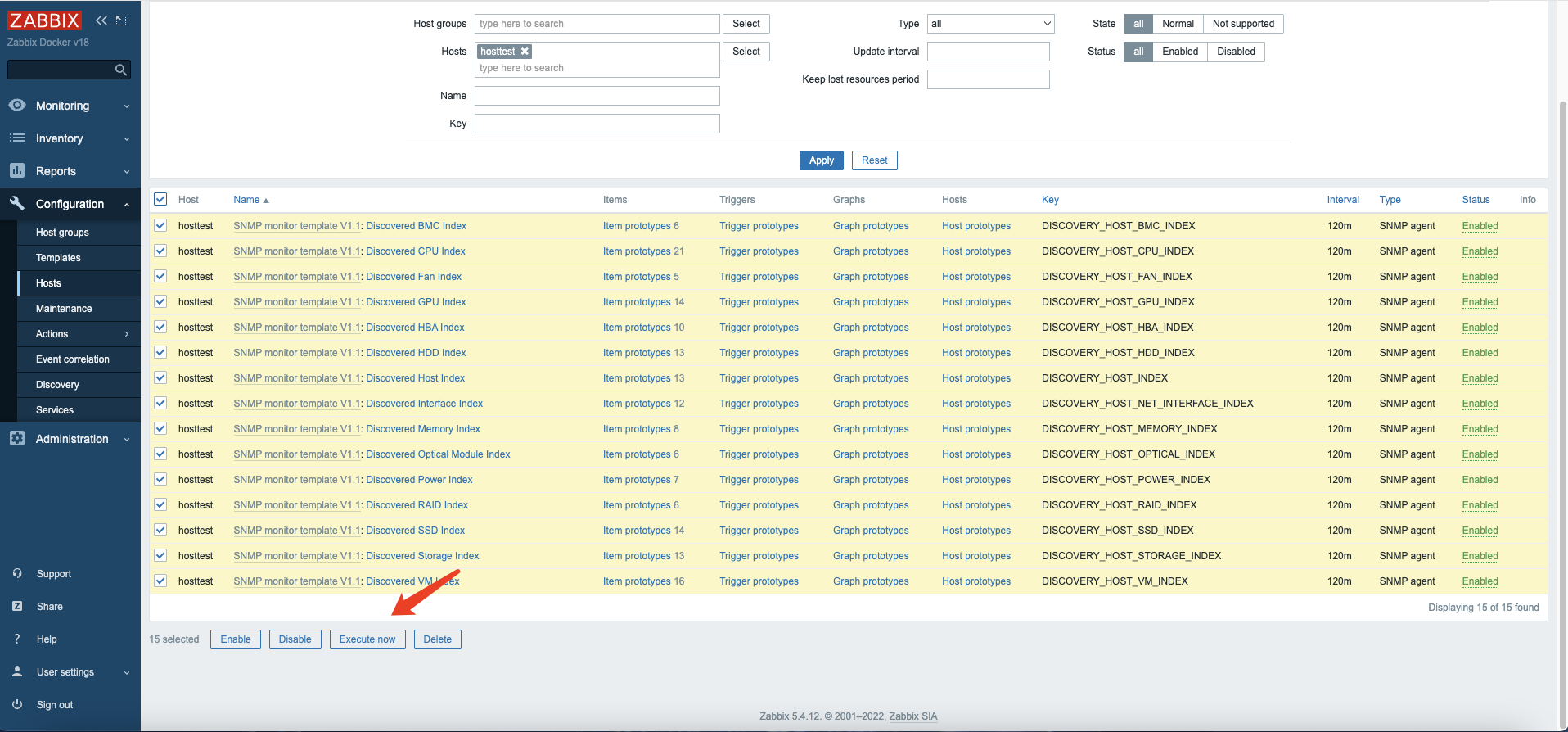

2. In the discovery rule, select all monitoring items and click Execute now to manually trigger data collection, as shown in the figure below.

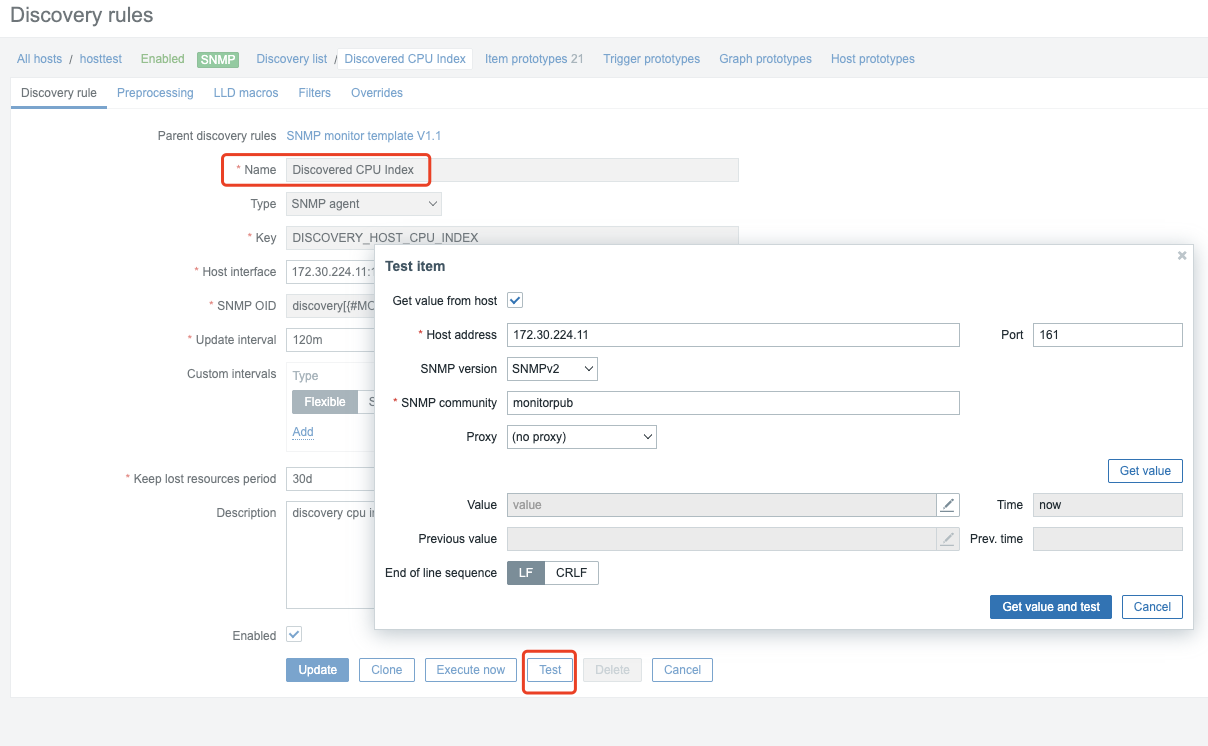

3. You can also click an index and test whether metrics can be successfully collected. The figure below takes the CPU index as an example. If metric values are displayed, it means that metrics can be successfully collected.

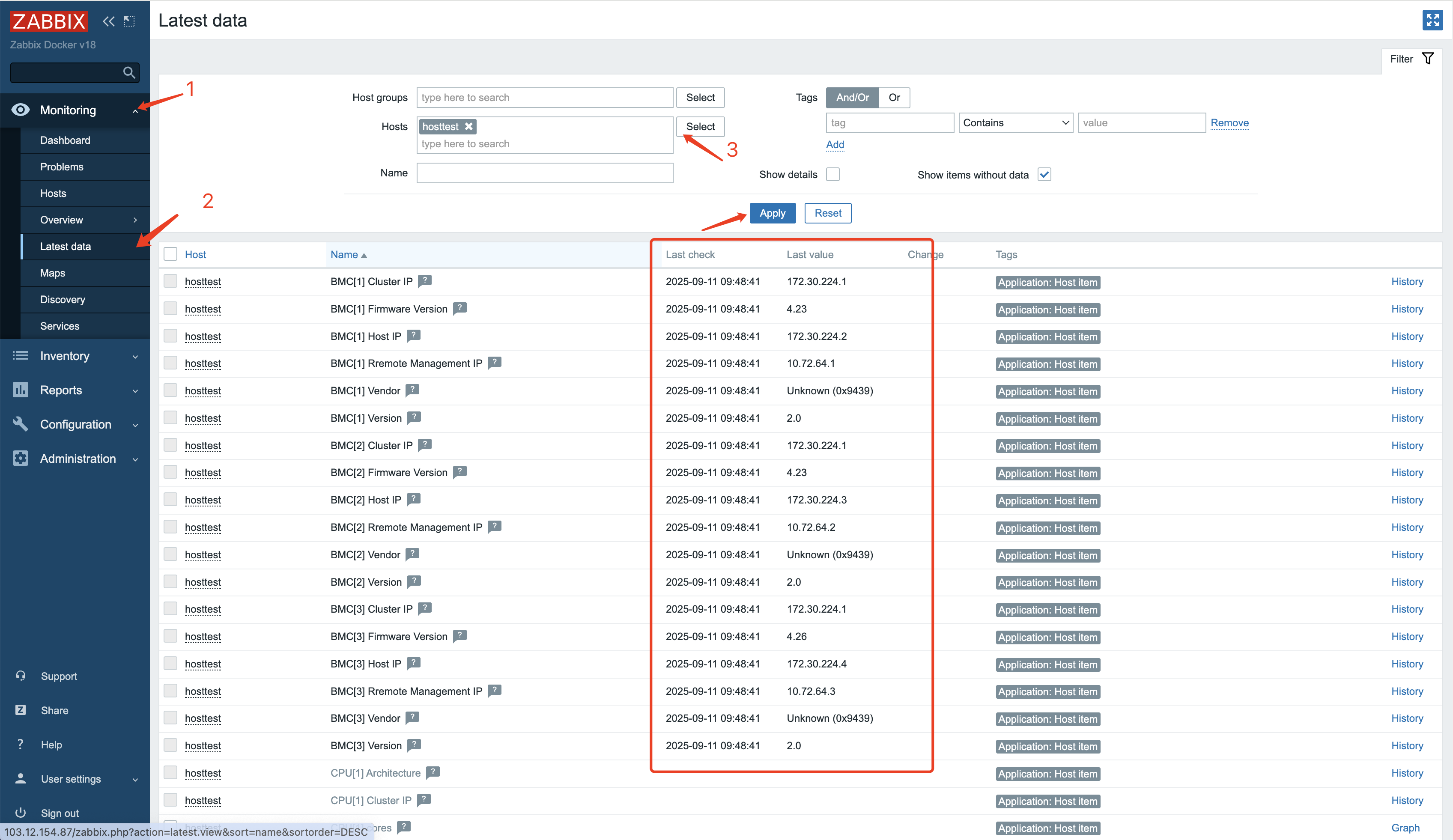

4. Select all discovery rules and click Execute now. Observe the page to check whether monitoring data is collected. Go to Monitoring > Latest data, and follow the steps in the figure below to check for monitoring data. If monitoring data is successfully collected, you have completed monitoring configuration. If monitoring data cannot be collected, contact technical support.
