To add excluded items to rules that affect services or false positives. The rules with excluded items will not go through detection or be alarmed. The rules with excluded items include botnet detection, intrusion protection exclusion, passive vulnerability scan, web protection exclusion, content security, email exclusion, and file antivirus exclusion.
Click Advanced. Then, the Advanced dialog box appears, as shown in the following figure.

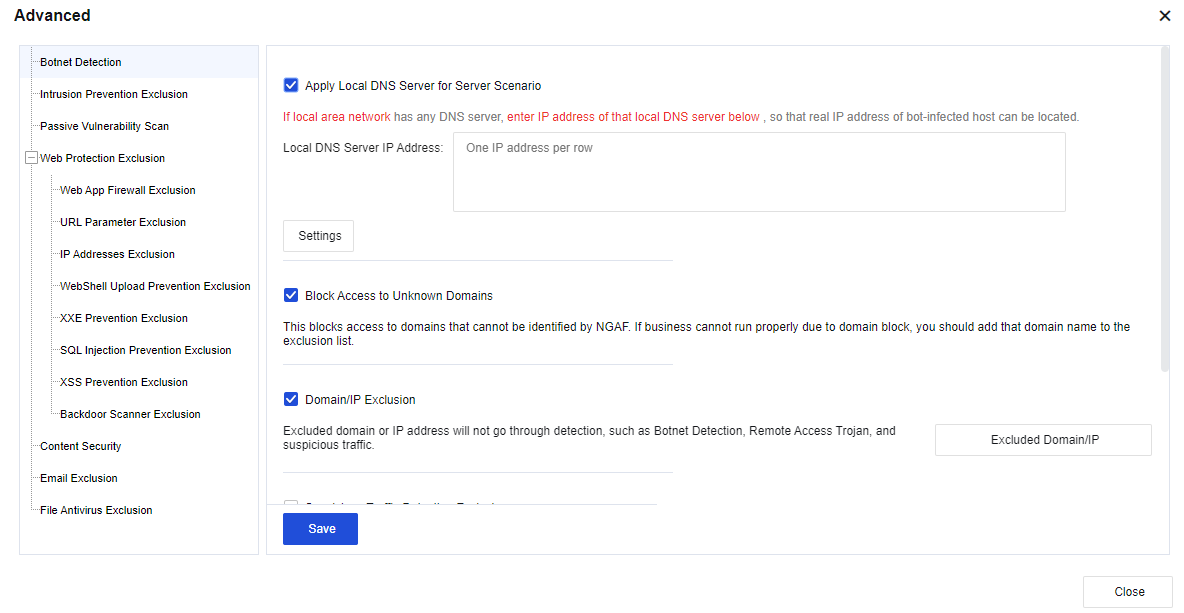

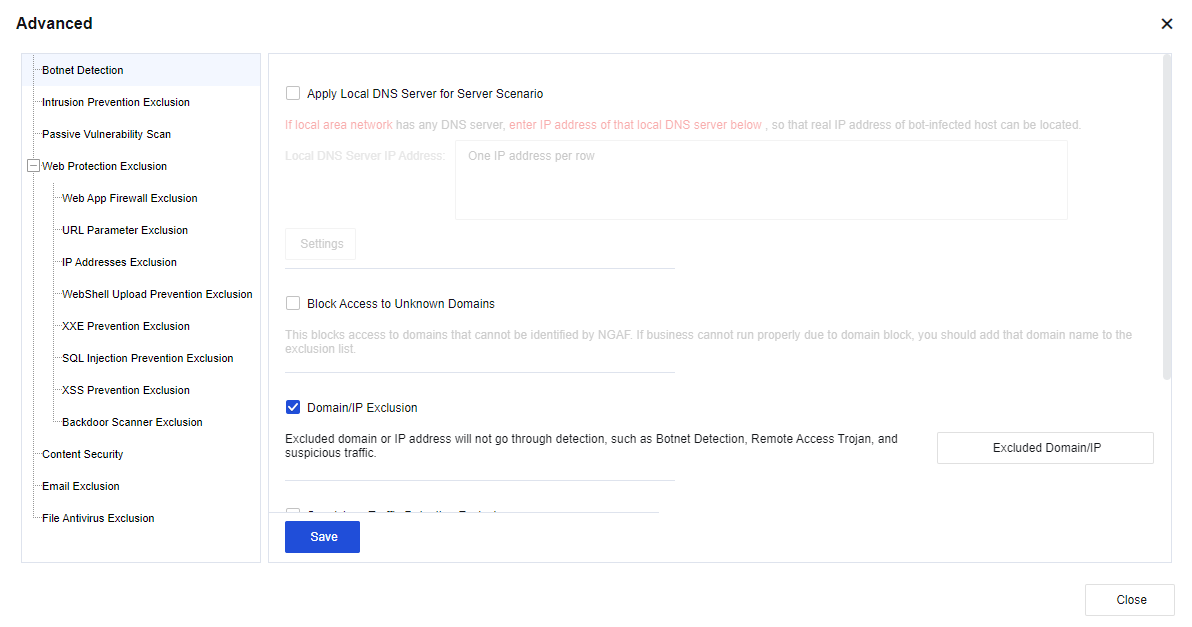

You can set the advanced functions of botnet detection. See the figure below.
Apply Local DNS Server for Server Scenario: Select this option if a DNS server exists in the LAN. This function is used to locate the real IP address of the bot-infected host in the LAN.

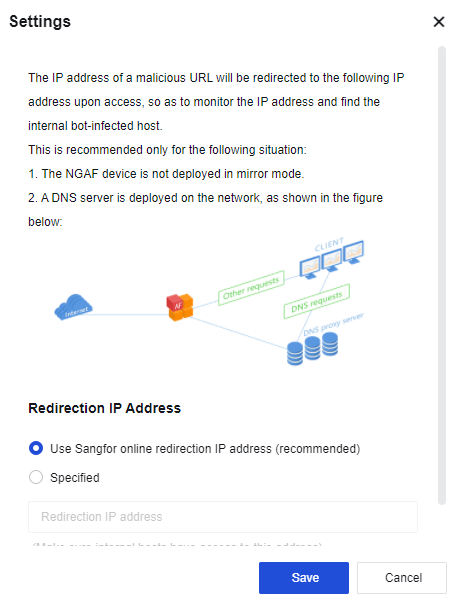

Click Settings to redirect the IP address of a malicious URL to the following honeypot IP address, to monitor the access to the IP address, and locate the real IP address of the bot-infected host in the LAN.
Block Access to Unknown Domains: If you select this option, access to the URLs that cannot be identified by the domain name database of the Athena NGFW device will be blocked. This option is often used in scenarios with high-security requirements. If the normal service cannot be accessed, it is recommended that the service's domain name be added to the whitelist.
Domain/IP Exclusion: Excluded domain names or IP addresses will not go through detection, such as Botnet Detection, Remote Access Trojan, abnormal connections, malicious URLs, and mobile security.
Suspicious Traffic Detection Exclusion: This option is valid only for abnormal connections. If you select this operation, the excluded rules during security detection of abnormal connections for the specified destination IP addresses will not be detected.

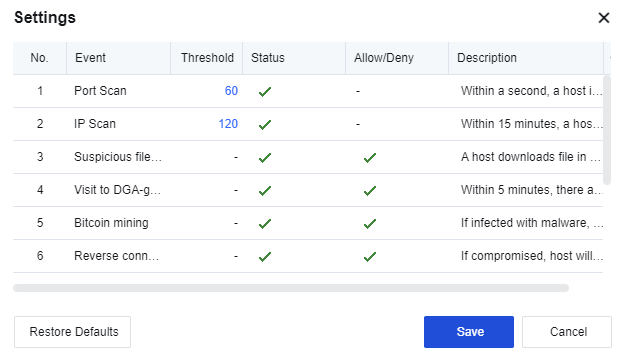

Botnet Detection: Locate suspected botnet hosts by performing suspicious activity detection. However, all rules will only perform detection and record logs rather than blocking data traffic.
Click Save to save the advanced settings for botnet detection.

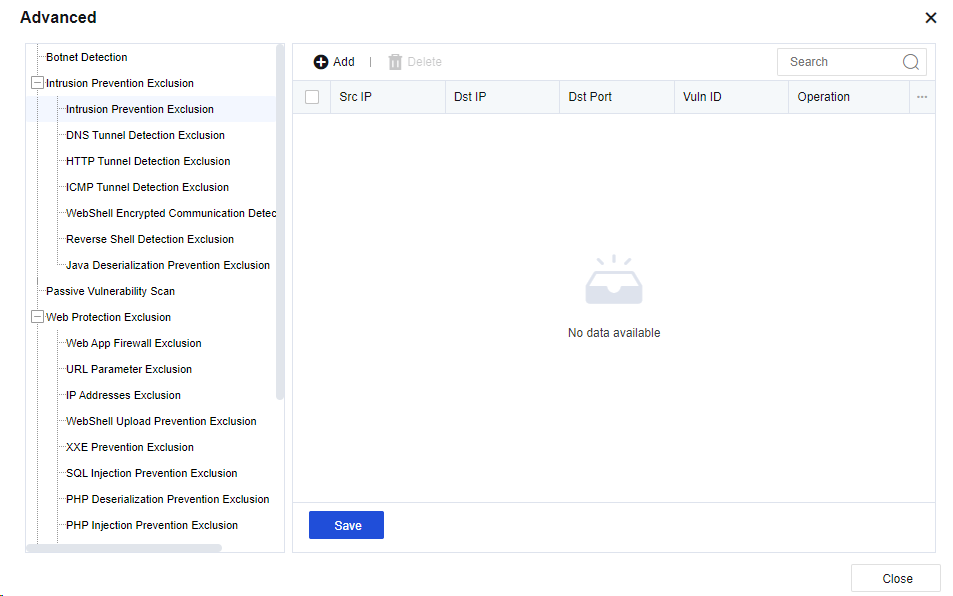

To set exclusion data that does not need to be detected for intrusion prevention. See the figure below.

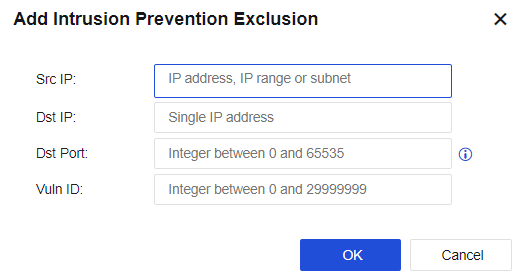

Click Add. Then, the Add Intrusion Prevention Exclusion dialog box appears. See the figure below.
Src IP: Specify the source IP address. You can enter a single IP address, subnet, or IP address range.
Dst IP: Specify the destination IP address.
Dst Port: Specify the destination port.
Vuln ID: Specify the vulnerability ID.
Click OK. Then, the configuration is complete.
Click Save to save the settings of intrusion prevention exclusion.

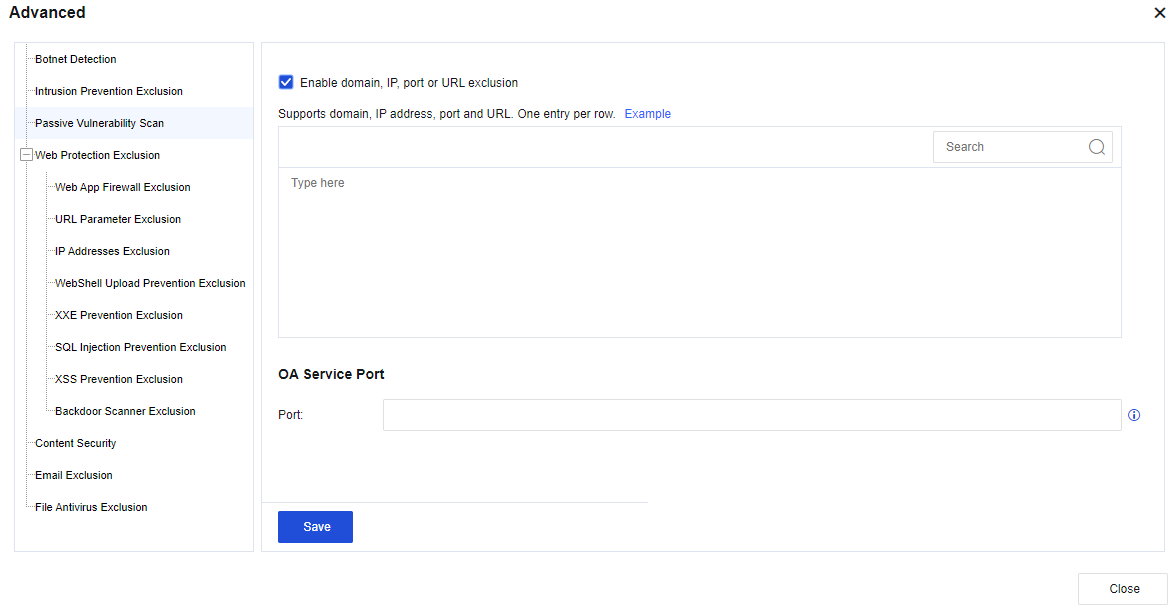

You can enable domain name, IP address, port, or URL exclusion, and set the OA service port.
Click Save to save the advanced settings of the passive vulnerability scan.
Excluded items can be added to the rules that contain false positives in web detection, including Web App Firewall Exclusion, URL Parameter Exclusion, IP Addresses Exclusion, WebShell Upload Prevention Exclusion, XXE Prevention Exclusion, SQL Injection Prevention Exclusion, XSS Prevention Exclusion, Backdoor Scanner Exclusion, etc., to reduce the occurrence of false positives, as shown in the following figure.

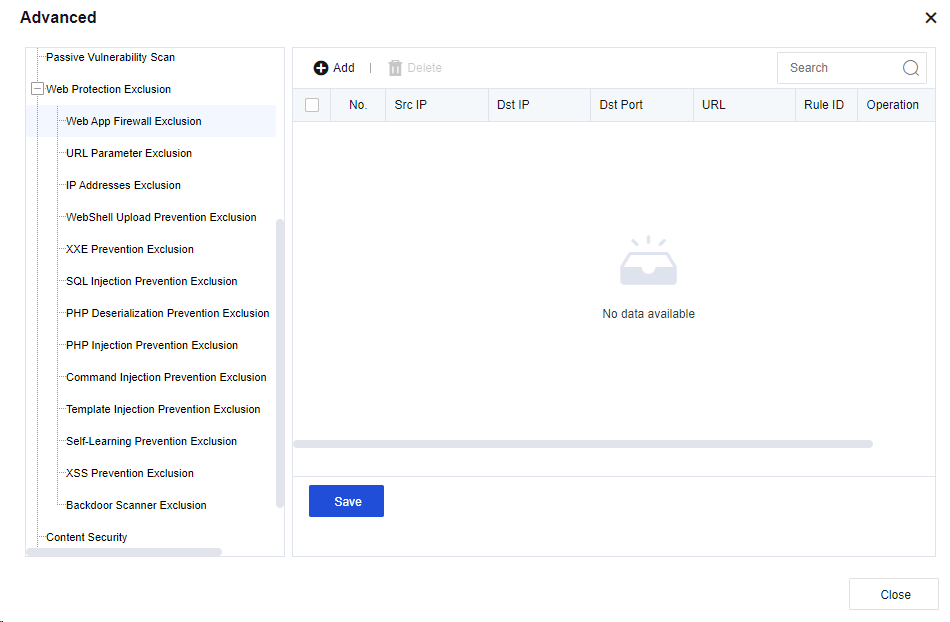

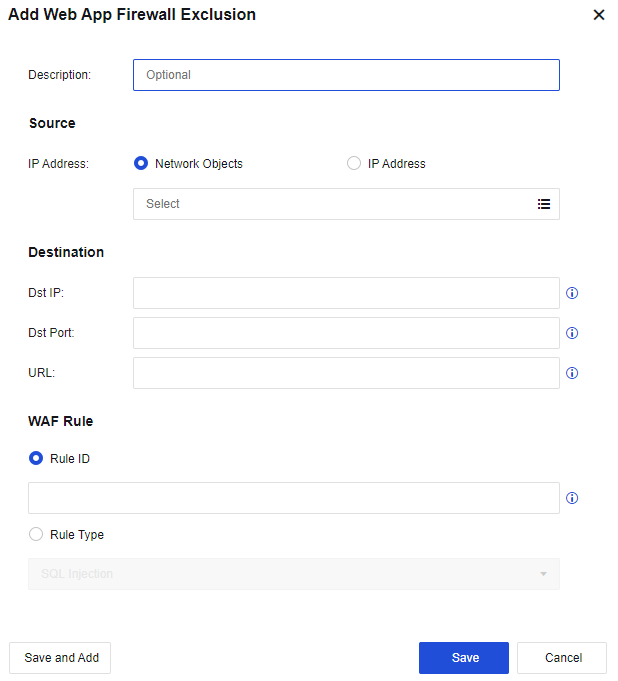

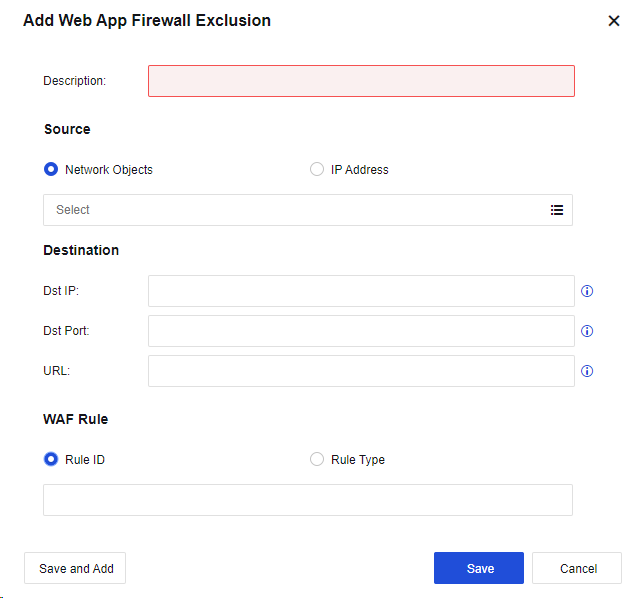

Web App Firewall Exclusion: Exclude the false positive rules detected by the web, thereby reducing the impact on services. Click Add. Then, the Add Web App Firewall Exclusion dialog box appears. See the figure below.
Description: Specify a custom description.
Source: Specify the source IP address. You can select Network Objects or IP Address.
Dst IP: Specify the destination IP address.
Dst Port: Specify the destination port.
URL: Specify the URLs to be excluded.
Rule ID: Specify the rule ID.
Rule Type: Specify the rule type. You can add an exclusion for a specific type of rule.
Click Save. Then, the configuration is complete.
Click Save to save the settings of the web app firewall exclusion.

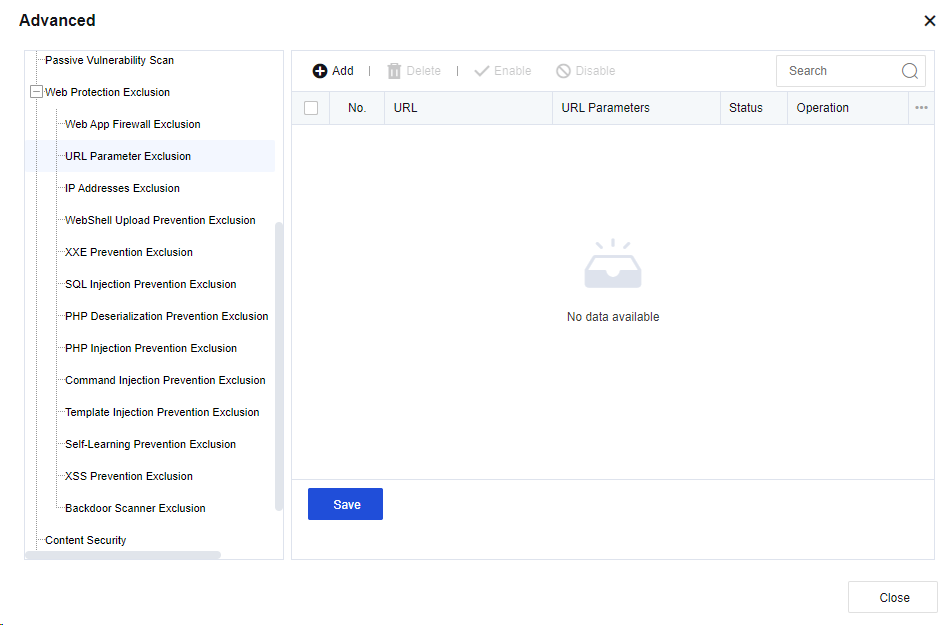

URL Parameter Exclusion: Add the URL parameters to be excluded. See the figure below.

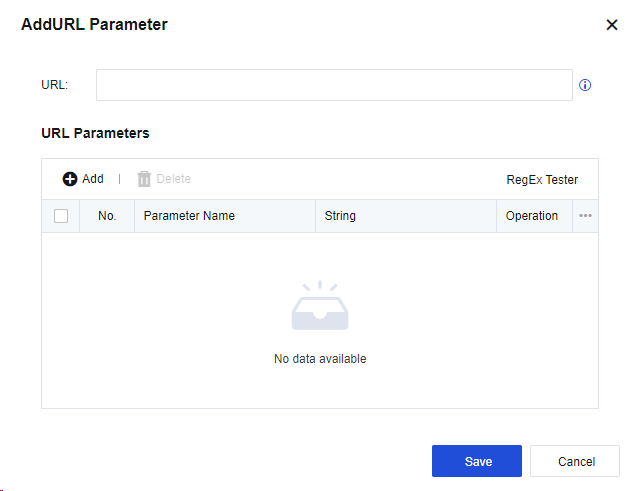

Click Add. Then, the AddURL Parameter dialog box appears. See the figure below.
URL: Specify the URL.
URL Parameters: Specify the parameter information.
Click Save. Then, the configuration is complete.
Click Save to save the settings of the URL parameter exclusion.

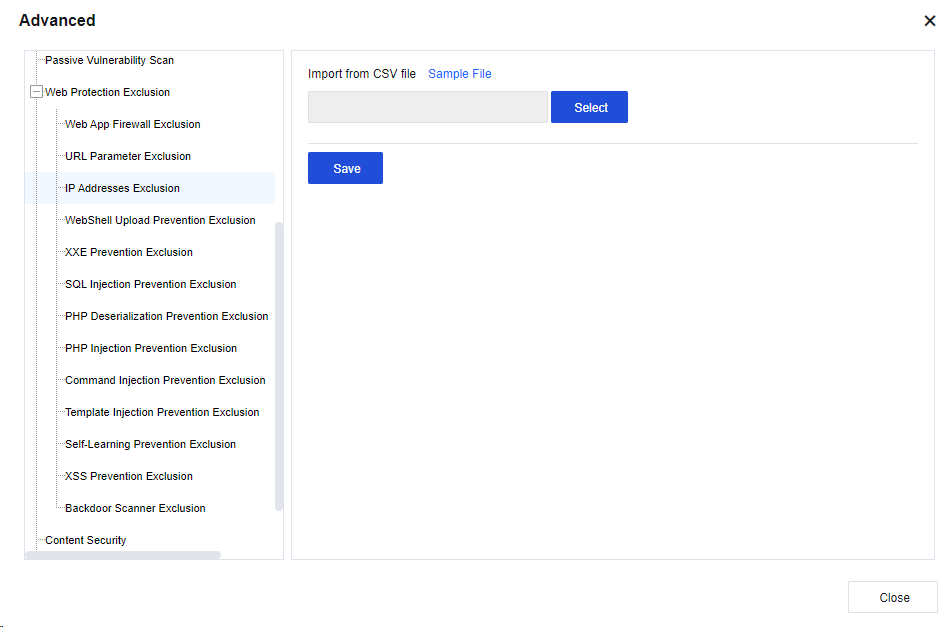

IP Addresses Exclusion: Exclude IP addresses. See the figure below.
Click Sample File to download the file template. Enter the IP addresses to be excluded in the required format and import the file.
Click Save to save the IP address exclusion settings.

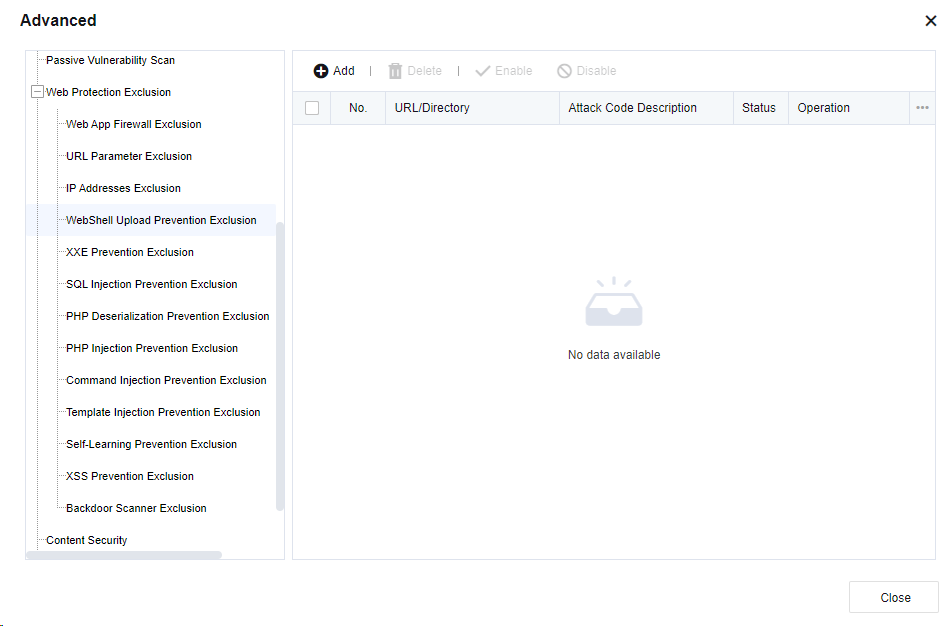

WebShell Upload Prevention Exclusion: If the WebShell upload detected by the smart web engine has a false positive, add WebShell upload prevention to the whitelist to reduce the impact caused by the false positive. See the figure below.
Click Add to go to the Security Logs tab and add an exclusion after the security log, which can be added to the whitelist.

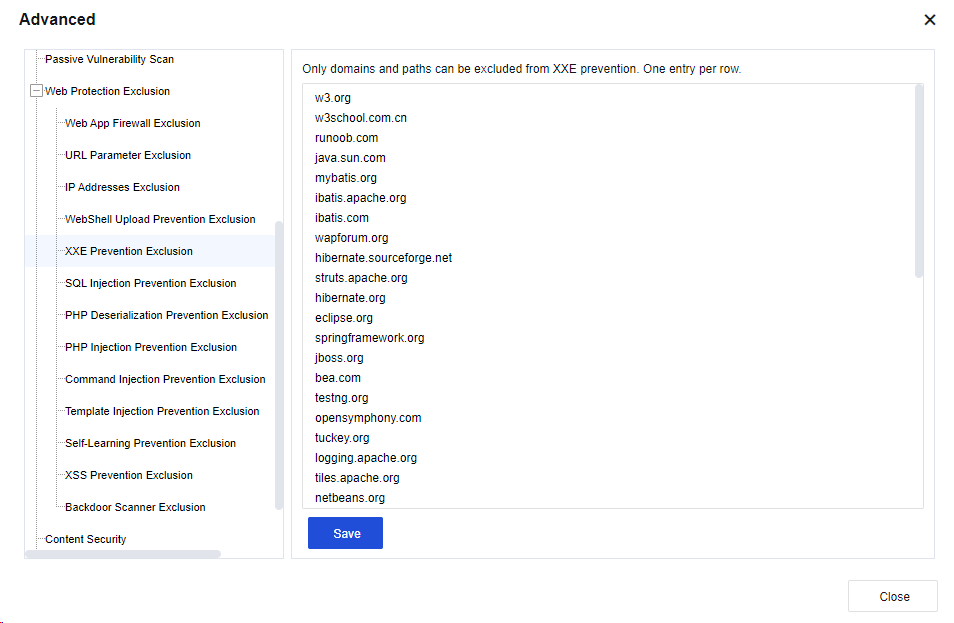

XXE Prevention Exclusion: If the XXE prevention detected by the smart web engine has a false positive, add the XXE prevention to the corresponding whitelist, as shown in the following figure.
Enter the corresponding domain name and click Save. Then, the configuration takes effect.

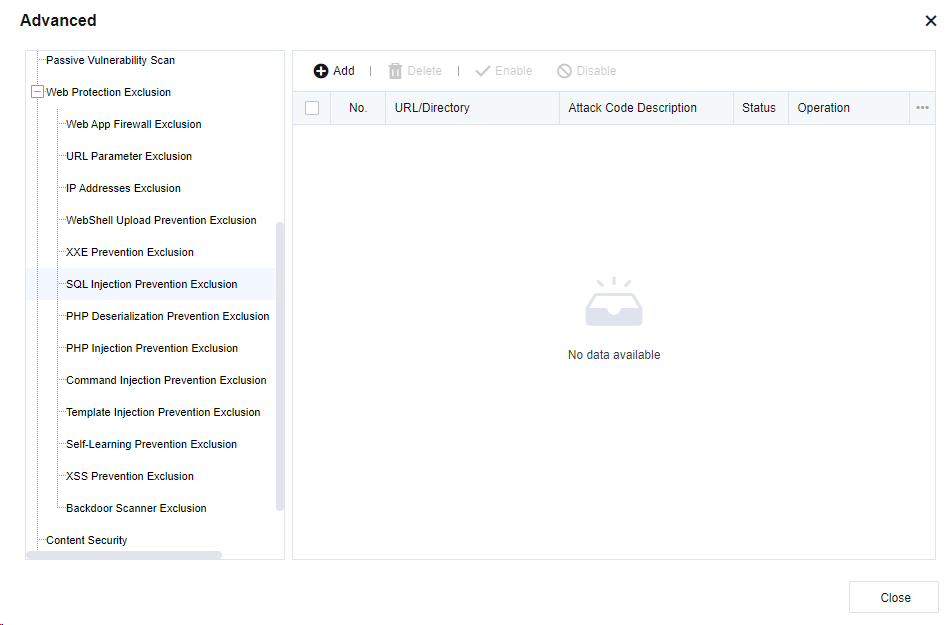

SQL Injection Prevention Exclusion: When the SQL semantics detected by the smart web engine has a false positive, add the SQL injection prevention to the whitelist to reduce the impact caused by the false positive. See the figure below.
Click Add to go to the Security Logs tab and add an exclusion after the security log, which can be added to the whitelist.

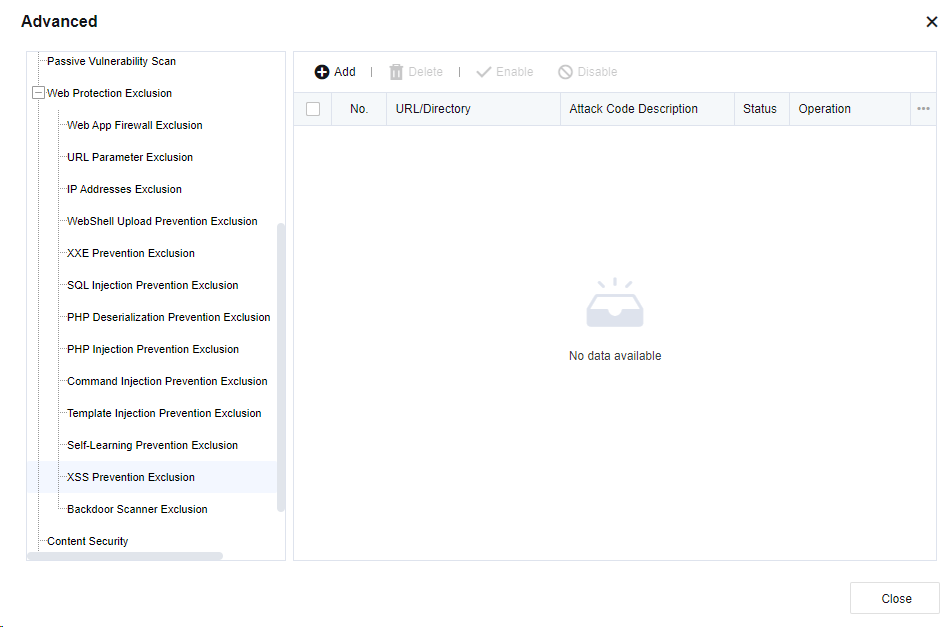

XSS Prevention Exclusion: If the XSS semantics detected by the smart web engine has a false positive, the XSS prevention can be added to the whitelist to reduce the impact caused by the false positive. See the figure below.
Click Add to go to the Security Logs tab, and add an exclusion after the security log, which can be added to the whitelist.

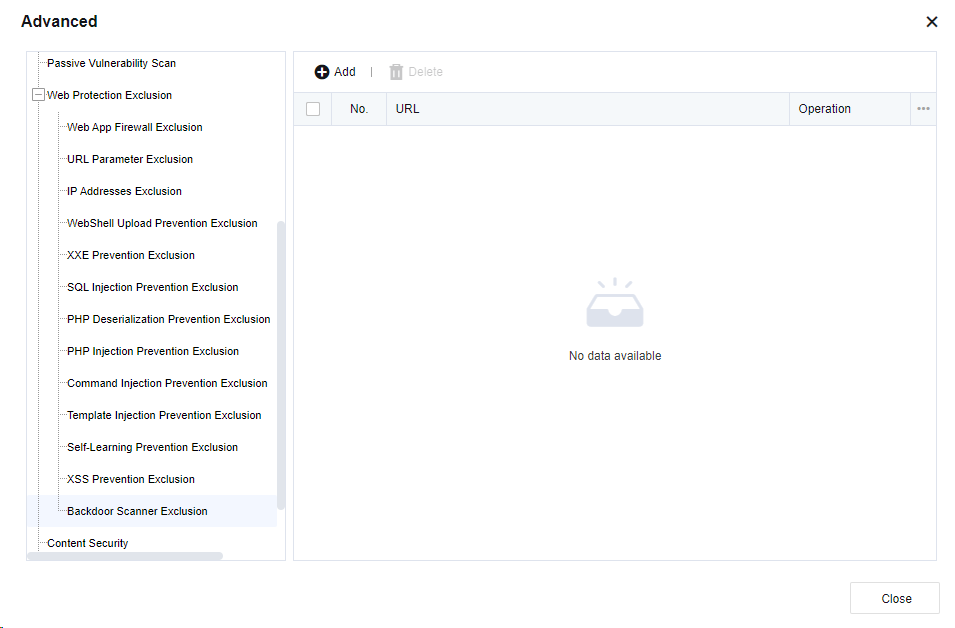

Backdoor Scanner Exclusion: If the backdoor scanning detected by the smart web engine has a false positive, the backdoor scanning can be added to the whitelist to reduce the impact caused by the false positive. See the figure below.
Click Add to go to the Security Logs tab and add an exclusion after the security log, which can be added to the whitelist.

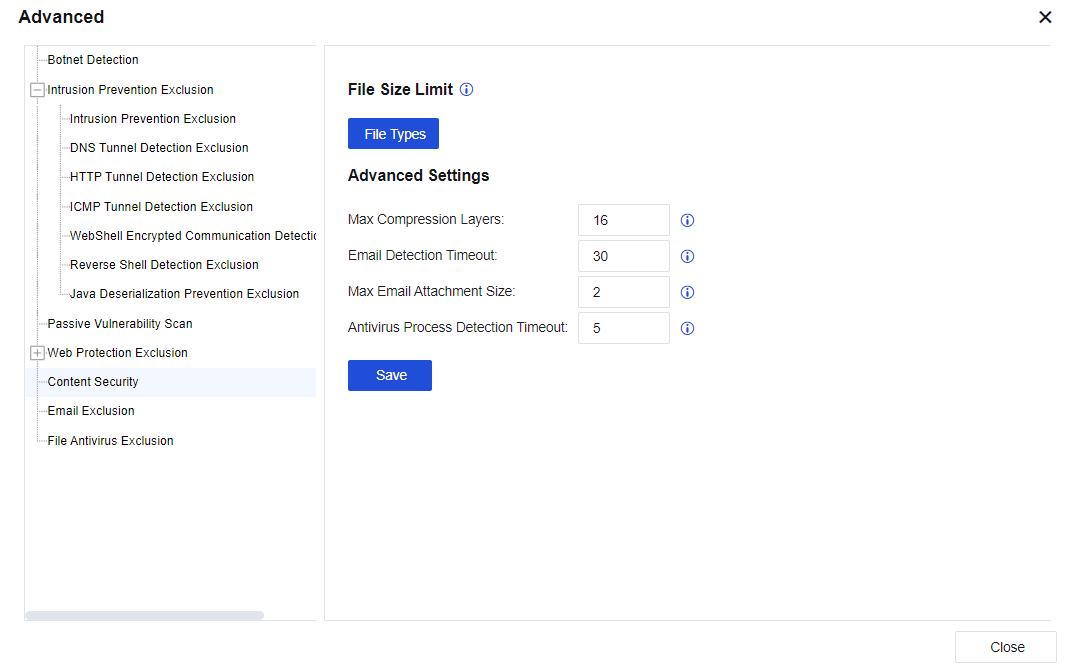

Content security mainly restricts the detection content of virus files, such as file size and compression degree, which can be adjusted accordingly. See the figure below.

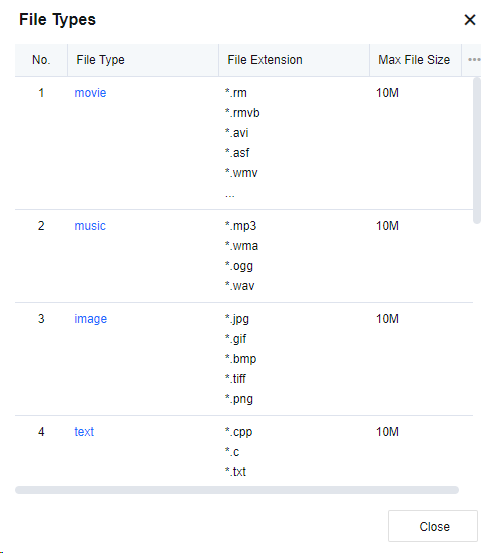

File Size Limit: Limit the size of the antivirus file. By default, the value is 10 MB. The maximum value is 20 MB. See the figure below.

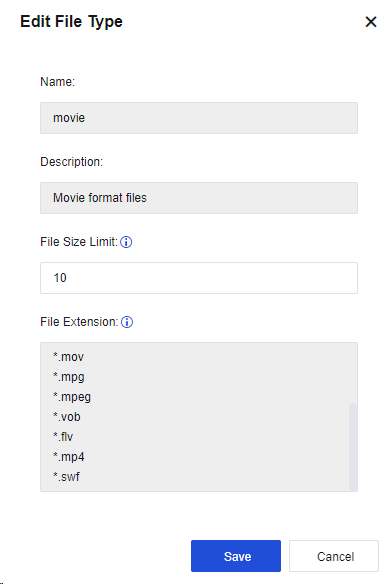

Click the name of the file type in the File Type column and change the file size, as shown in the following figure.
Max Compression Layers: Set the file's layers to be decompressed to detect viruses in the decompressed file. The default value of the Max Compression Layers parameter is 4, and the maximum value is 16.
The Max Layers parameter is 4, and the maximum value is 16.
Email Detection Timeout: Specify the email protection detection timeout period. If the timeout period is exceeded, it will not continue to detect.
Max Email Attachment Size: Set the maximum email attachment size that will be sent to Engine Zero for file verification.
Antivirus Process Detection Timeout: Set the timeout period for waiting for Engine Zero results. After the timeout, the result will not be continued.

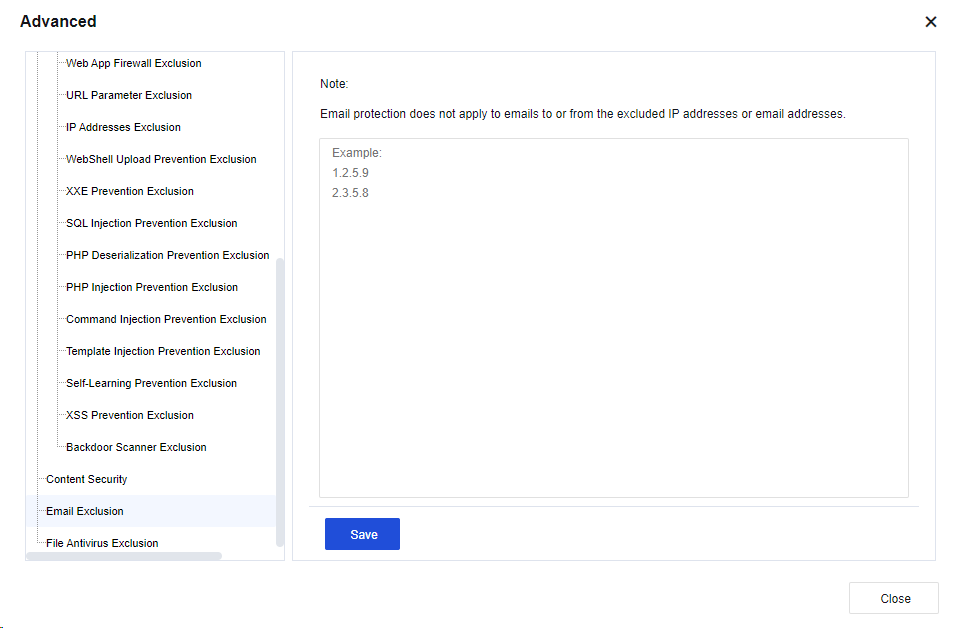

This can be set to exclude source IP addresses, destination IP addresses, recipient addresses, and sender addresses. For addresses added to the list below, all email security functions will be invalid. See the figure below.
Click Save to save the settings of email exclusion.

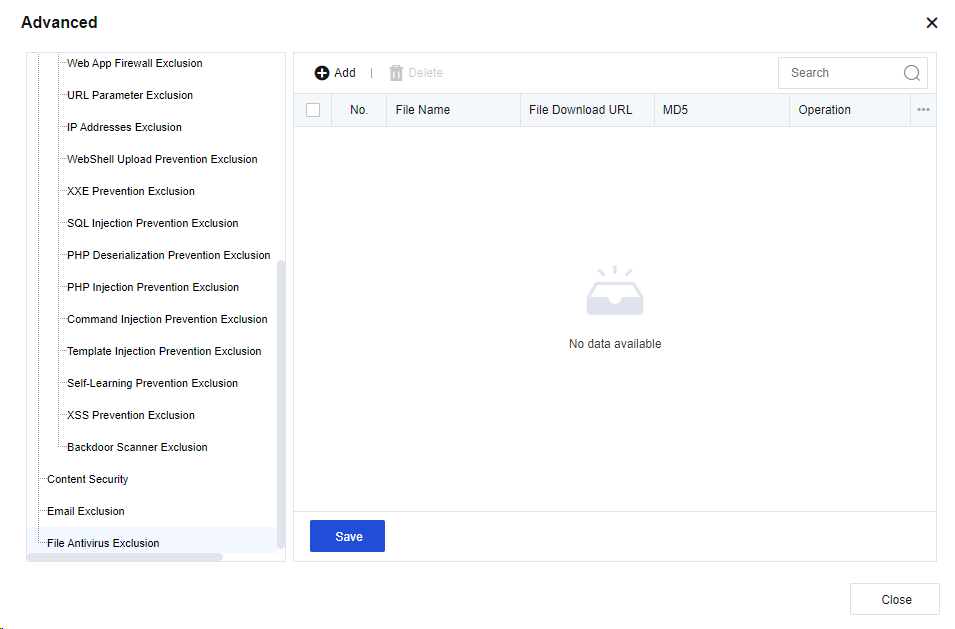

The specified file or URL is not subject to virus scanning and killing, as shown in the following figure.
Click Add. Then, the Add File Antivirus Exclusion dialog box appears. See the figure below.
File Name: Specify the file name of the object to be excluded.
MD5/URL: Specify the MD5 value of the object or a URL to be excluded. You can select MD5 or File Upload/Download.
Description: Specify the description of the object.
Click OK. Then, the configuration is complete.
Click Save to save the settings of file antivirus exclusion.
