Resource Options

{{ $t('productDocDetail.updateTime') }}: 2026-02-05

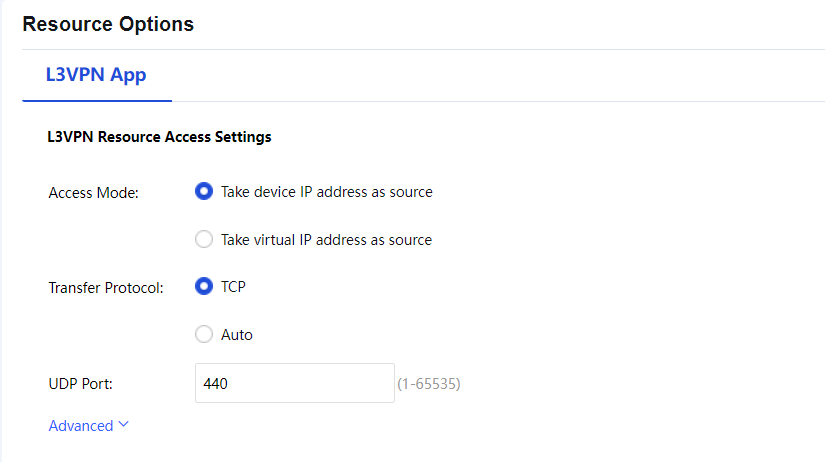

Resource options contain the parameters setting for L3VPN resources. The configuration page is as shown below:

Access Mode: SSL VPN user L3VPN resource access mode can be defined either by using the device IP address or virtual IP address as the source IP. If Take device IP address as source is chosen, the host/server in the internal network will receive the packets with the device IP address as the source IP address. If Take virtual IP address as source is chosen, the server will receive the packets with a virtual IP address as the source IP address. The virtual IP address is offered by the virtual IP pool mentioned in the previous section.

Transfer Protocol: To select the L3VPN application transfer protocol (TCP or UDP). Click the Advanced Options to configure the IP of the Local Virtual Adapter.
