Virtual IP Pool

{{ $t('productDocDetail.updateTime') }}: 2026-02-05

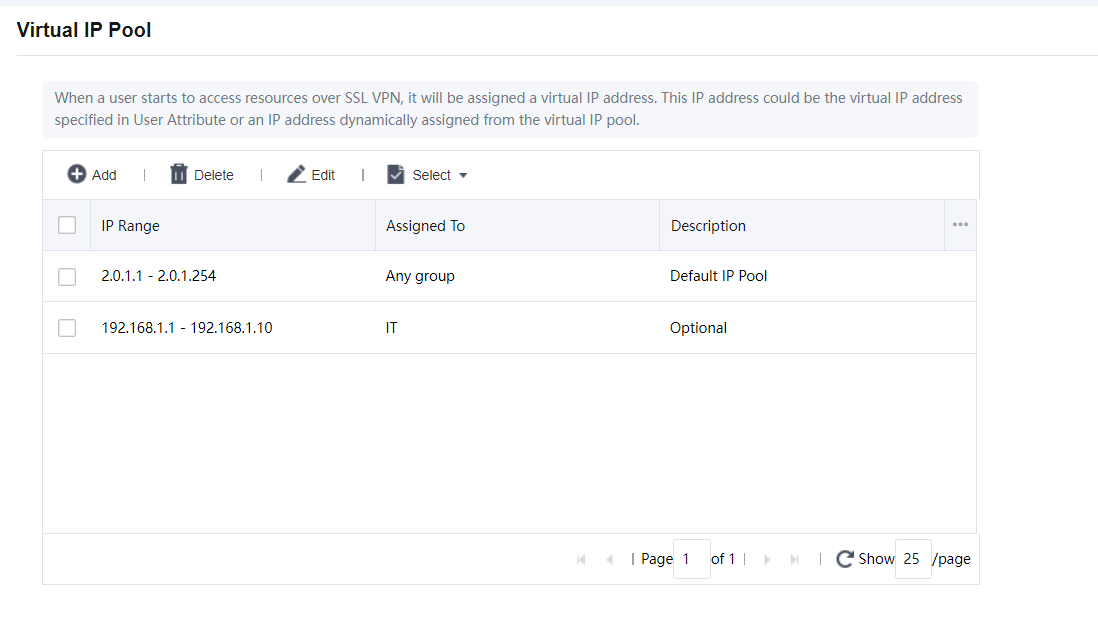

The virtual IP pool provides virtual IP addresses to the SSL VPN users who access via L3VPN resources, and the IP pool should not conflict with other intranet network segments. We recommend using isolated network segments or keeping the default IP pool. The page is shown below:

IP Range: IP pool configuration for the start IP to the end IP address.

Assigned To: Target SSL VPN user or group to assign with a selected IP range.

Description: Configure the description of the IP pool range.

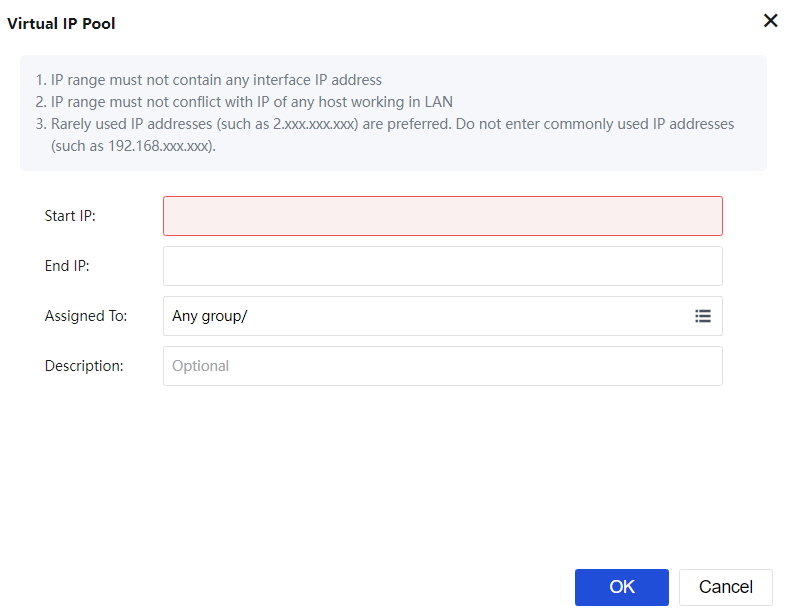

Click Add to create a new entry for the IP pool, as shown in the figure below:

1. IP segments in the virtual IP pool must not conflict with intranet IP segments.

2. The IP addresses in the virtual IP pool must not include the IP addresses configured on the other interfaces.
