Athena NGFW can be used in the following environments. To ensure the long-term stable operation of the system, the power supply should be properly grounded, and the operating environment features dustproof measures, smooth air, and stable room temperature. This product complies with the design requirements for environmental protection. The placement, usage, and abandonment of the product shall comply with relevant national laws and regulations where it is applied.
| Parameter |
Requirements |
| Voltage |
110V~230V |
| Temperature |
0~45°C |
| Humidity |
5~90% |
| Power supply |
110V AC to 230V AC: Please ensure the power supply has good grounding measures before switching on the power. |
Table 1:Operating Environment Requirements for Athena NGFW
Product Appearance
This section describes the appearance of the Athena NGFW device by using the AF-2000-B2150 model as an example.

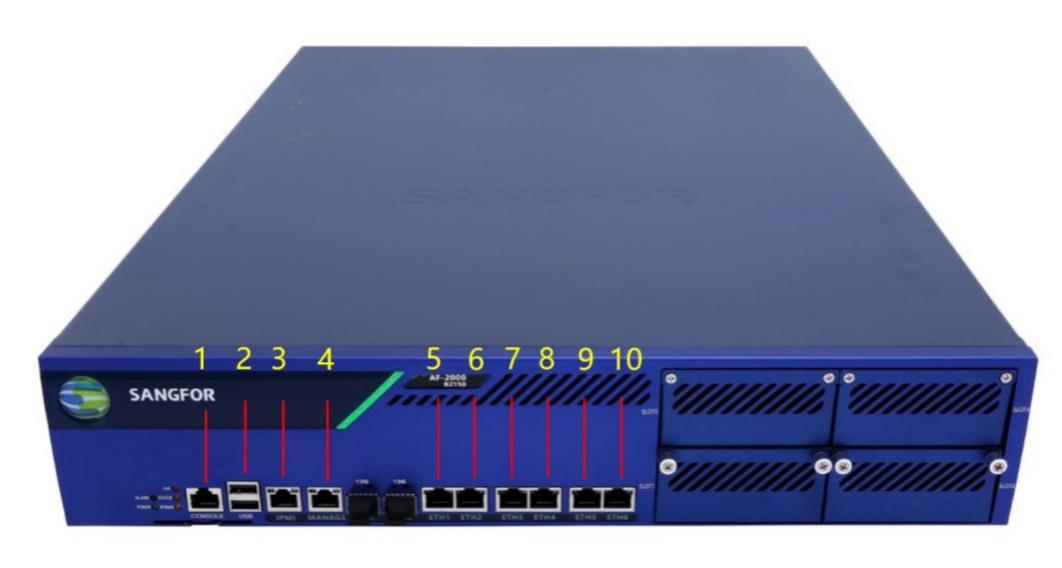

Front panel:
| Device Name |
No. (Front) |
Note |
| AF-2000-B2150 |
1 |
CONSOLE interface |
| 2 |
USB interface |
|
| 3 |
IPMI interface |
|
| 4 |
MANAGEMENT interface (ETH0) |
|
| 5 |
ETH1 |
|
| 6 |
ETH2 |
|
| 7 |
ETH3 |
|
| 8 |
ETH4 |
|
| 9 |
ETH5 |
|
| 10 |
ETH6 |
Table 2:Interfaces on the Front Panel (AF-2000-B2150)

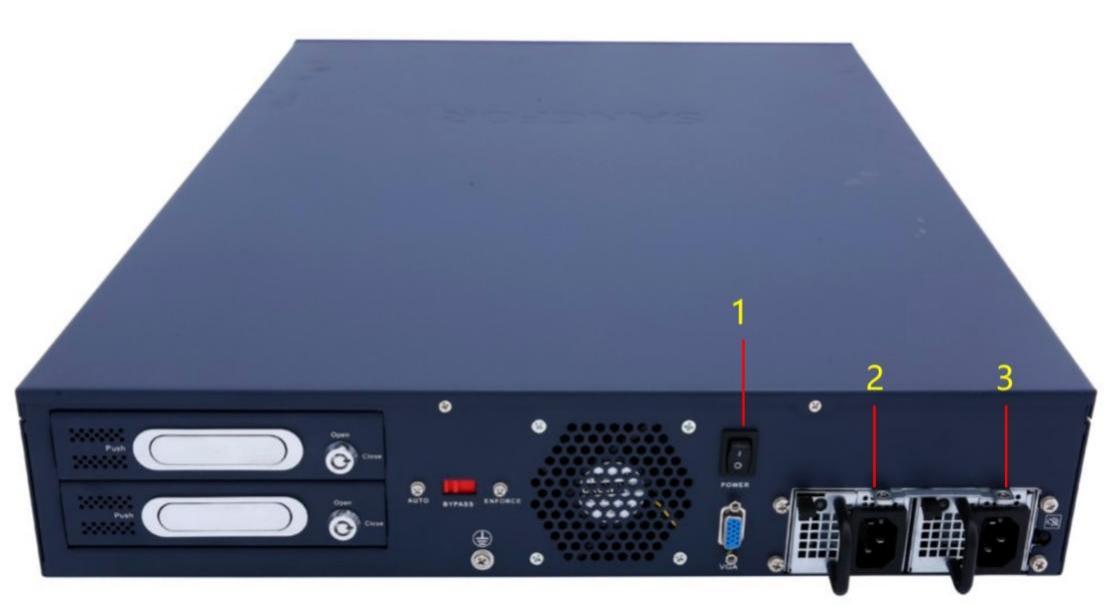

Rear panel:
| Device Name |
No. (Rear) |
Note |
| AF-2000-B2150 |
1 |
POWER button |
| 2 |
POWER interface |
|
| 3 |
POWER interface |
Table 3:Buttons and Interfaces on the Rear Panel (AF-2000-B2150)
Precautions:
1. The alarm indicator is steady red when the device is running. Generally, the red alarm indicator goes out after one or two minutes, indicating the device is successfully turned on. If the red alarm indicator does not go out for a long time, please turn off the device and wait for 5 minutes before turning it on.
2. If the red alarm indicator remains on, please contact Sangfor Technical Support to determine whether the device is damaged. After the normal startup, the indicator may blink red sometimes. It is normal as the device is generating a system log.
3. The CONSOLE interface is for development, testing, and debugging only. End-users need to access the device by the networking interface and log in to the console.
