Viewing VM Details

{{ $t('productDocDetail.updateTime') }}: 2026-01-09

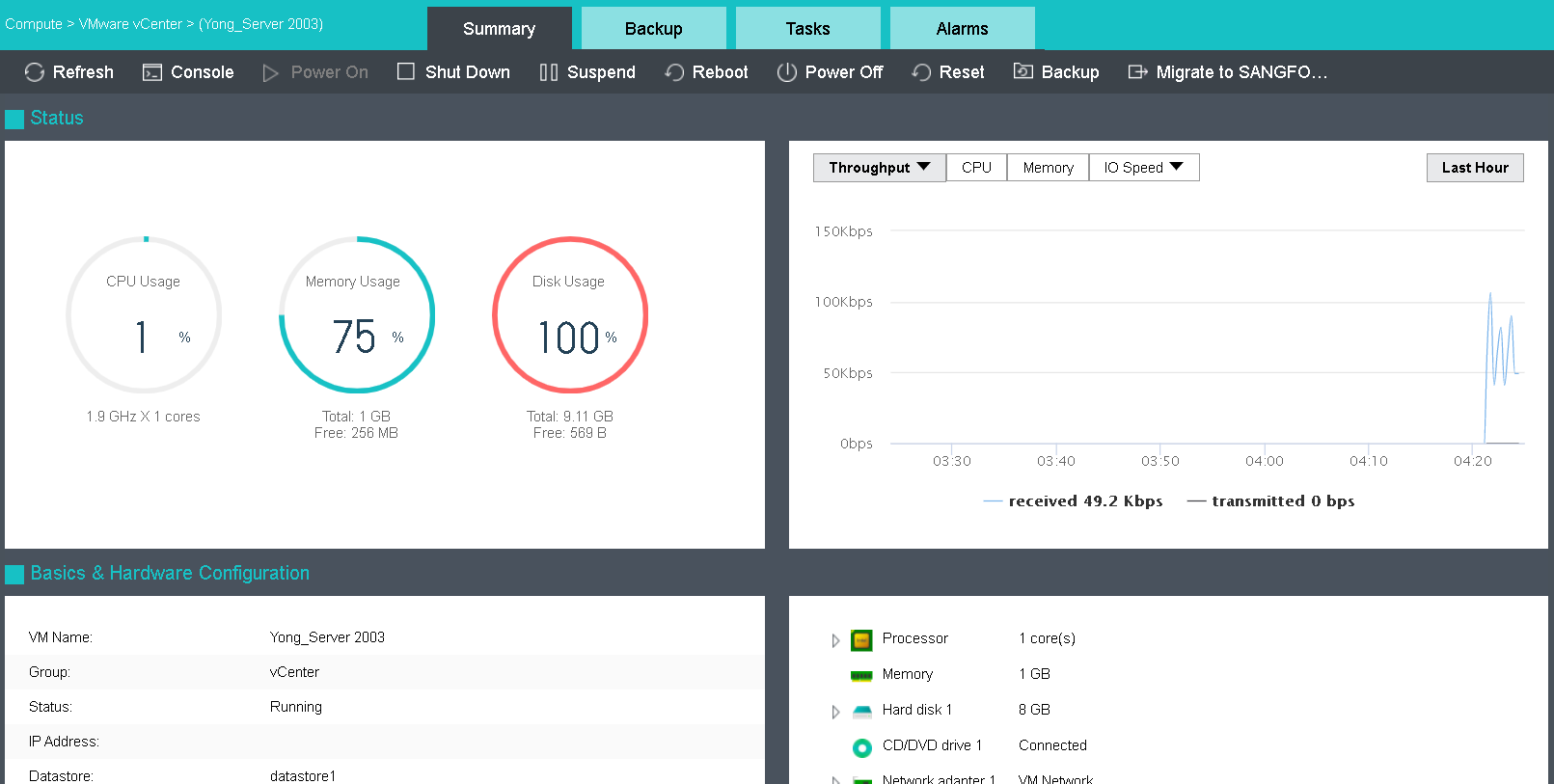

There are the following tabs: Summary, Snapshot, Backup/CDP, Permissions, Tasks and Alarms, as shown below.

On the Summary tab, you may perform such operations as Power On, Shut Down, etc, and view basic information and hardware configurations of virtual machine.

To refresh the Summary page, click on Refresh on the upper left corner.

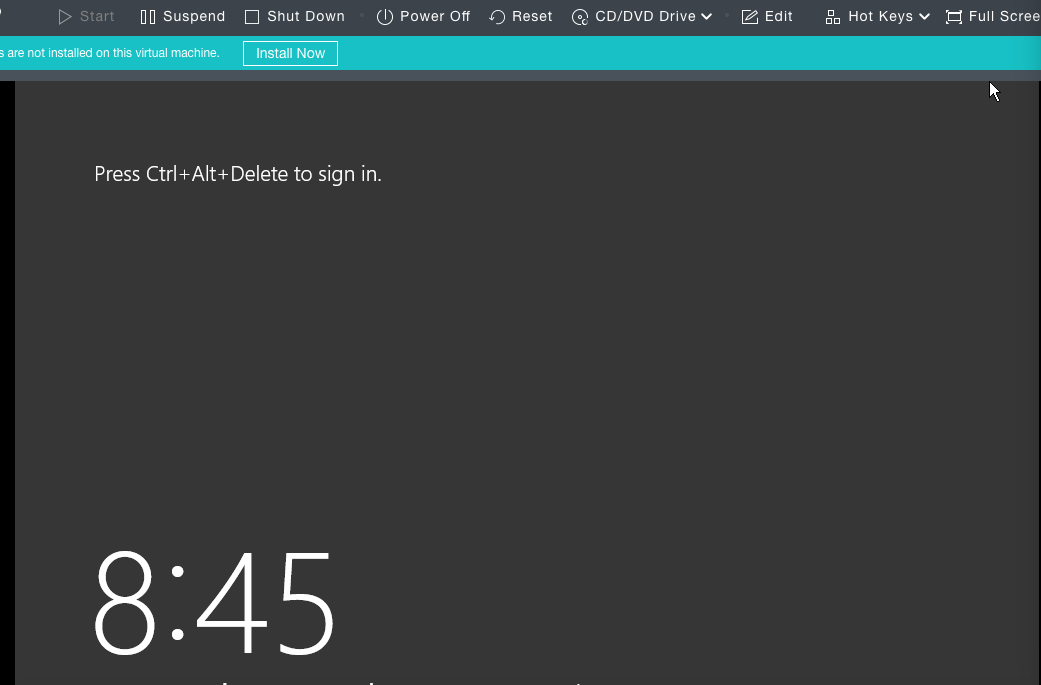

To open virtual machine’s console, click Console on the Summary page, or click on the Console button on the virtual machine panel to enter the following page. Before opening VMware vCenter administrator console, make sure the console plug-in has been installed, as shown below:

Click to send Ctrl+Alt+Delete command to guest OS.

Click to enter full screen, and press Ctrl+Alt+Enter to exit from full screen.

To power on virtual machine, you may click Power On.

To shut down virtual machine, you may click Shut Down.

To suspend virtual machine, you may click Suspend.

To restart a virtual machine, you may click Reboot.

When a virtual machine is in powered-on state, you can click Power Off to force it to be powered off.
To restart virtual machine, you may click Reset.

To back up virtual machine, you may click Backup.

To migrate the VM, you may click Migrate to SANGFOR HCI.
