In Compute, all VM groups can be expanded or collapsed by clicking on the following button.

To expand or collapse a specific group, click on the + & - button next to that group.

The number following a group name indicates the number of virtual machines in that group.

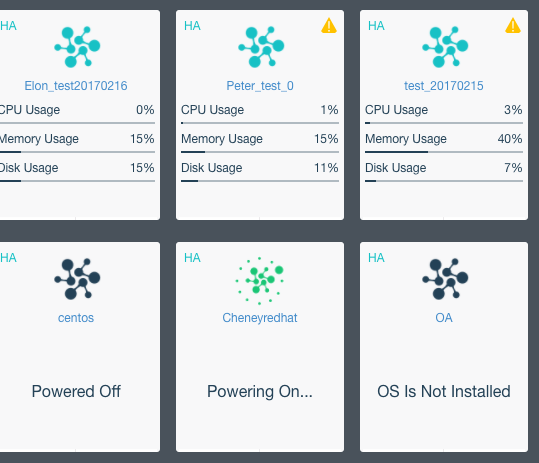

You can get the following information on virtual machine panel: power status(powered on or powered off), CPU, memory and disk usage. Blue VM icon indicates virtual machine is powered on, while gray VM icon indicates virtual machine is powered off.

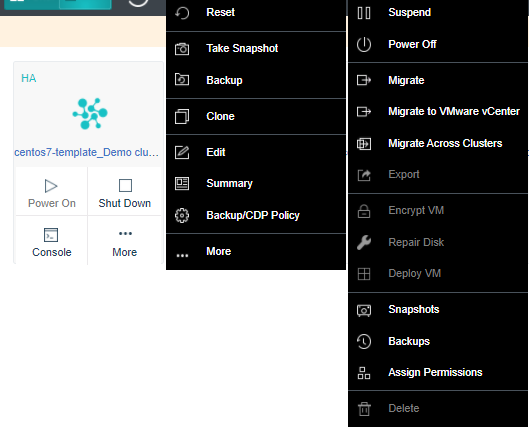

Move the cursor onto VM card and the following buttons will appear on that card, as shown in the following figure:

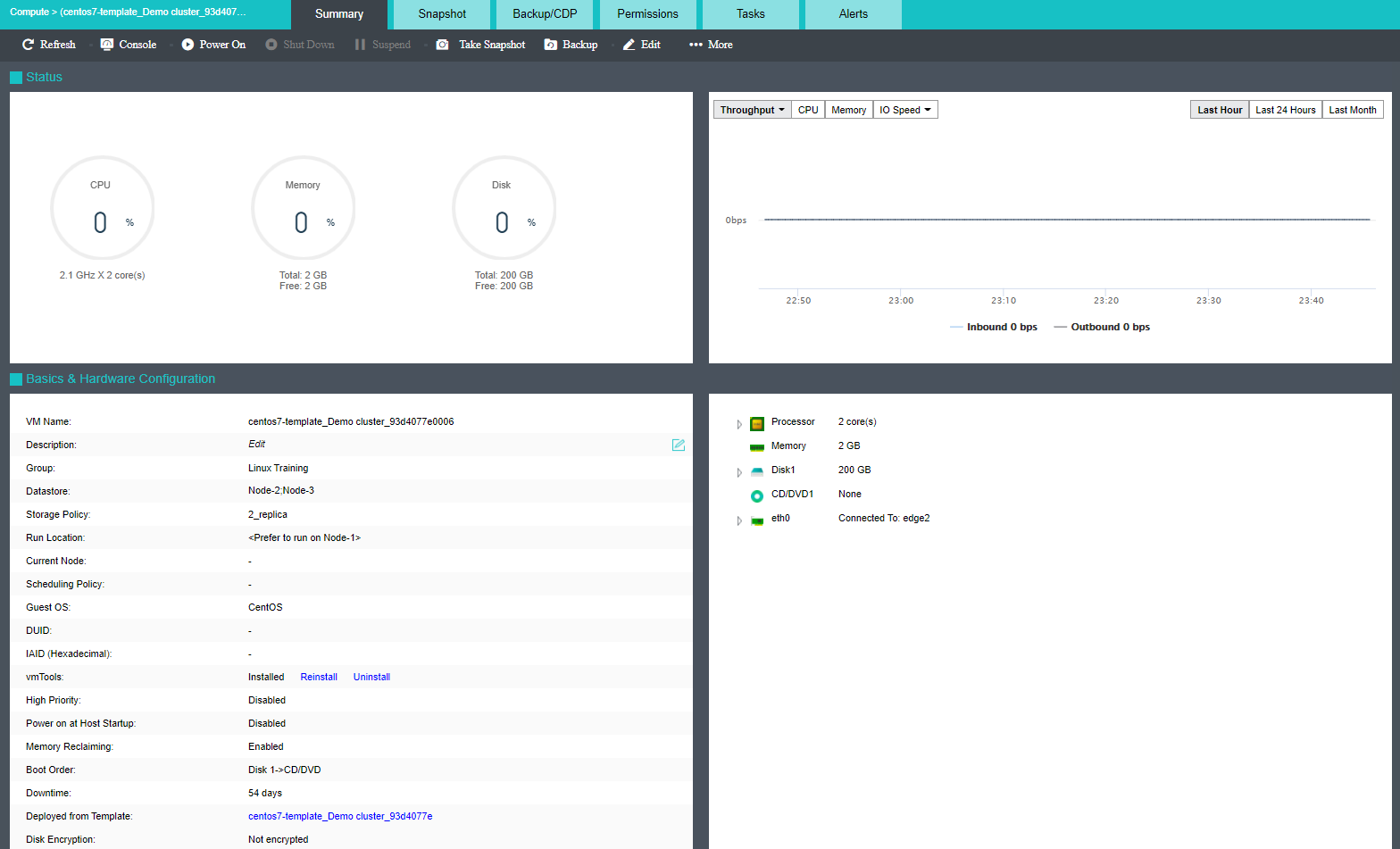

For virtual machine details, you may click on VM name to redirect to the Summary page, as shown below:

To perform more operations against virtual machine, click More, as shown below:

If VMware vCenter is not added to Sangfor HCI platform, the option Migrate to VMware vCenter will not be displayed.
