Function Description:

The shared service is to assign a fixed public service network gateway to each resource pool. After the setting is successful, the interface is connected by default when creating a public service, which is used for resource pool tenants to access resources in the public service area.

Prerequisite

1. The SCP cloud computing platform has managed the HCI cluster and created a resource pool.
2. The SCP cloud computing platform has been licensed for the cluster.

Precautions:

After the public service gateway is set, if you need to modify it, please delete all public services under the exit first.

Steps:

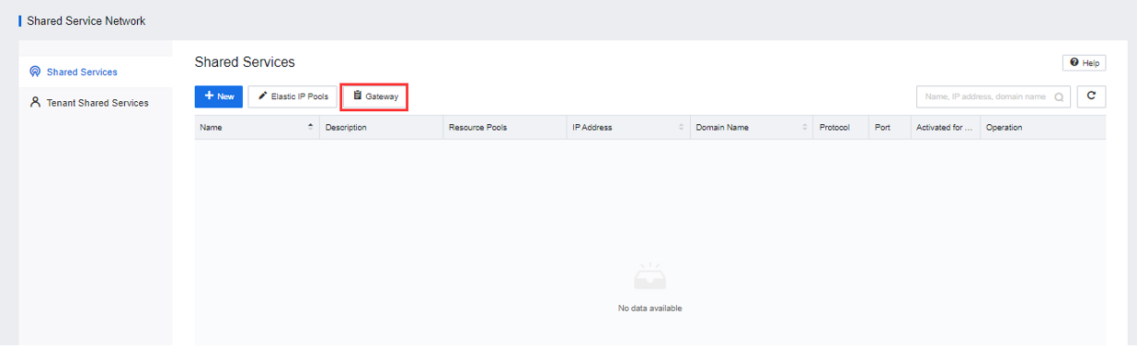

Step 1.Select Networking > Shared Service Network > Shared Services, and click Gateway.

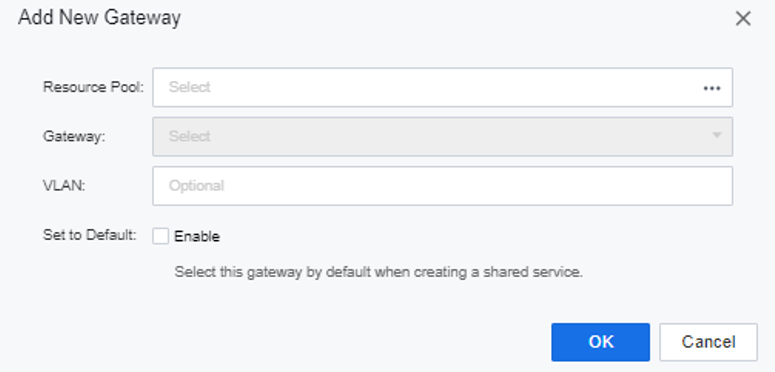

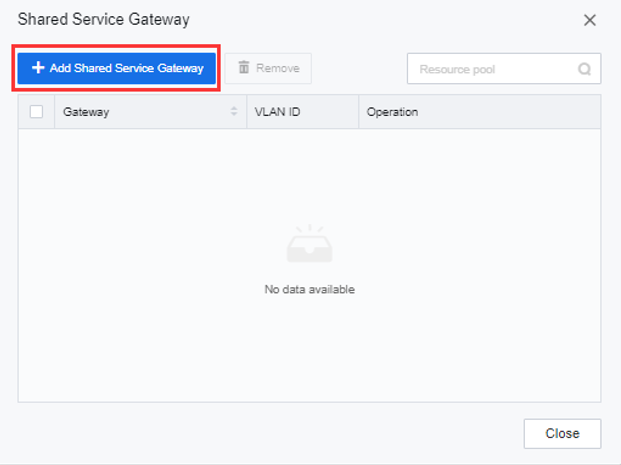

Step 2.Click Add Gateway to plan shared service exits for each resource pool.

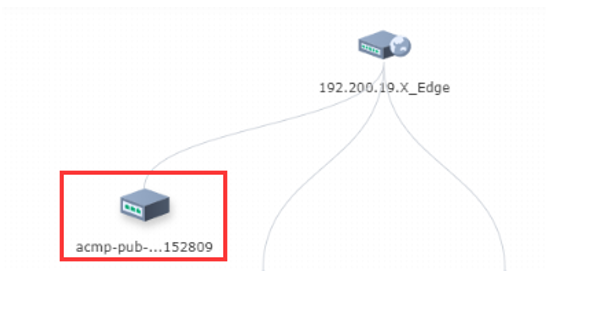

Step 3.After the deployment is complete, you can see the newly added public service outlet acmp-pub-trunk under the corresponding outlet in the network topology.
