Advanced capturing of packets is to capture packets by running the tcpdump command and store the captured packets to the console interface of the device. You must install the packet capturing software, such as Wireshark or Sniffer, on the computer to open the packets for analysis. In advanced capturing mode, you can capture all data transmitted through the NIC of the device.

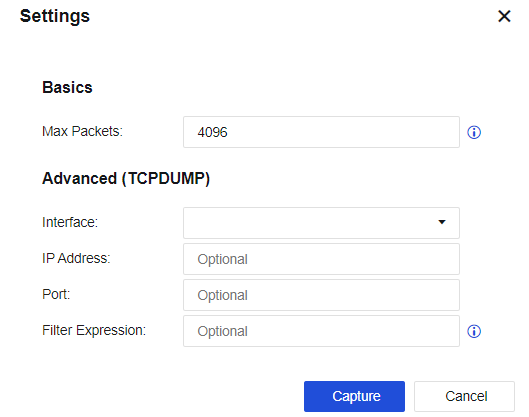

Choose System > Troubleshooting > Analysis Tool, click Package Capture and click Capture. On the Settings page, set the number of packets captured and port, and set packet capture conditions, as shown in the following figure.

The filter expression is the same as the tcpdump command. If you capture packets at the IP address 192.168.1.100, the filter expression for the packets at port 80 is as follows:

host 192.168.1.100 and port 80

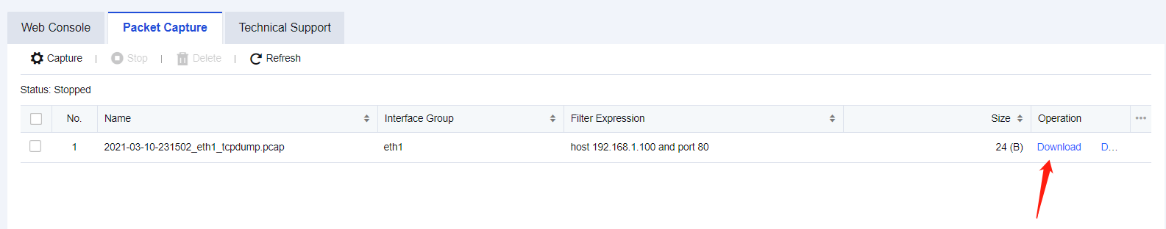

Click Capture. Then, the device starts to capture packets, and the captured packets can be downloaded from the page.
