Traffic statistics are used to count application traffic and perform ranking based on the traffic triggered by applications. In this way, it is clearer to see which application triggers the most traffic and which one triggers the least, and quickly distinguish which traffic is generated in the service.

Case of Viewing Traffic Statistics

An administrator in an enterprise needs to check the proportion of applications in service traffic frequently. The administrator sees that Web streaming media applications use more traffic and needs to make an analysis.

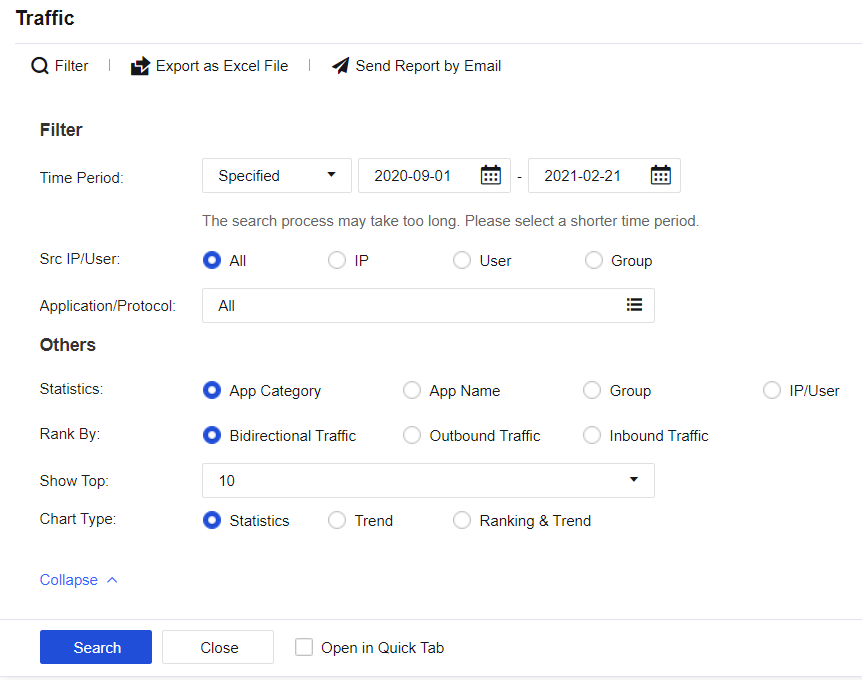

Step 1.Set the conditions according to needs, as shown in the following figure.

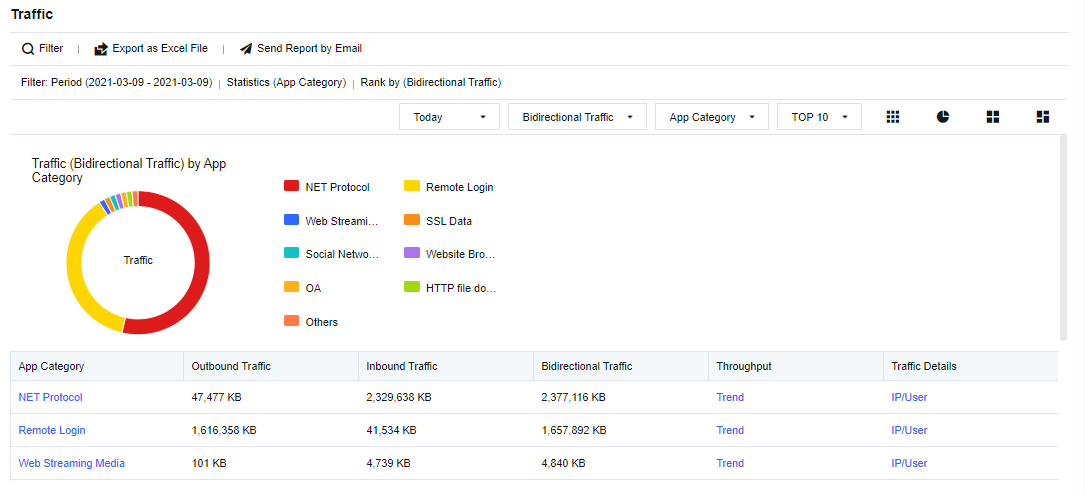

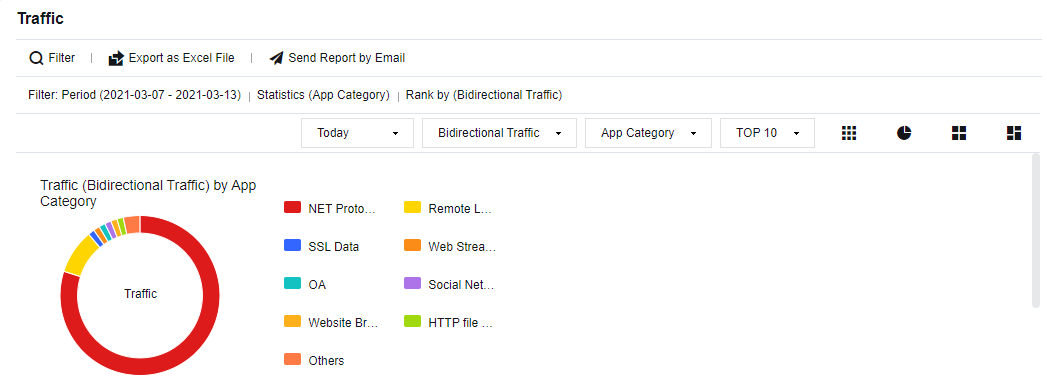

Step 2.Check the results, including App Category, Outbound and Inbound Traffic, Bidirectional Traffic, etc., as shown in the following figure.

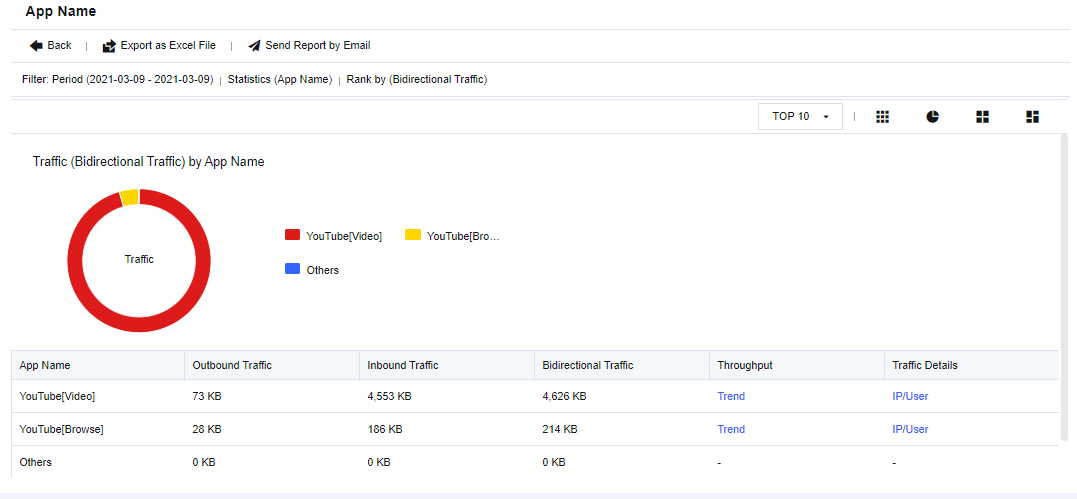

Step 3.Click Web Streaming Media to view the proportion of specific applications and traffic volume, as shown in the following figure.

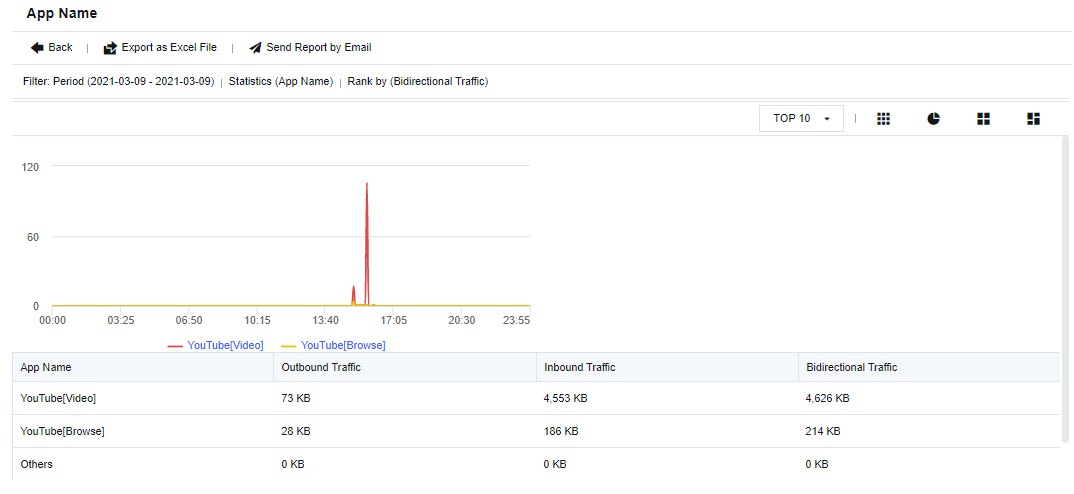

Step 4.Click Trend to view the specific traffic trend chart, as shown in the following figure.

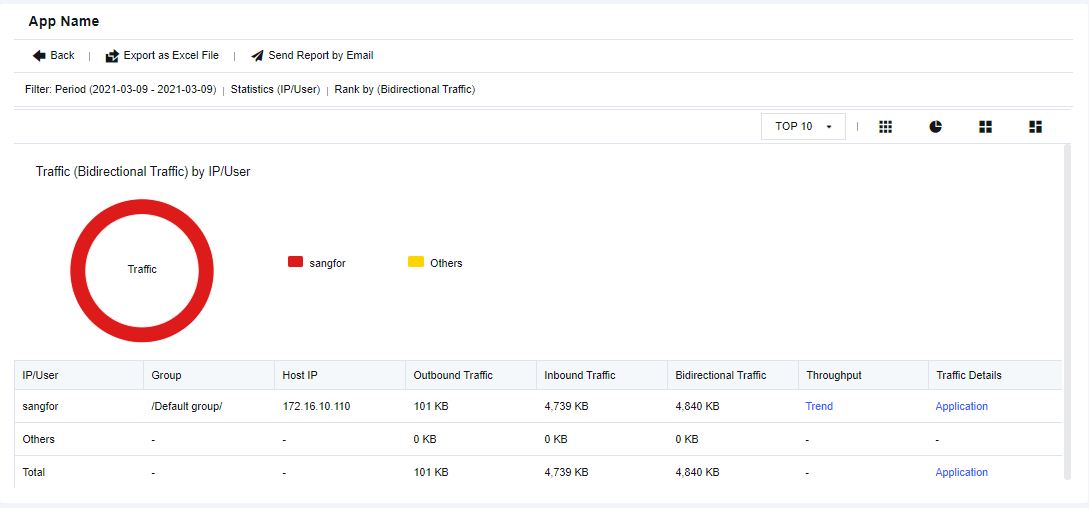

Step 5.Click IP/User to view the specific IP address or user which accesses the application, as shown in the following figure.
