System logs mainly record the logs generated when device administrators perform operations on devices, the local security logs generated when devices are under attack, and the local access control logs. These logs can be exported and provided to relevant personnel for analysis, as shown in the following figure.

Admin Operation Logs

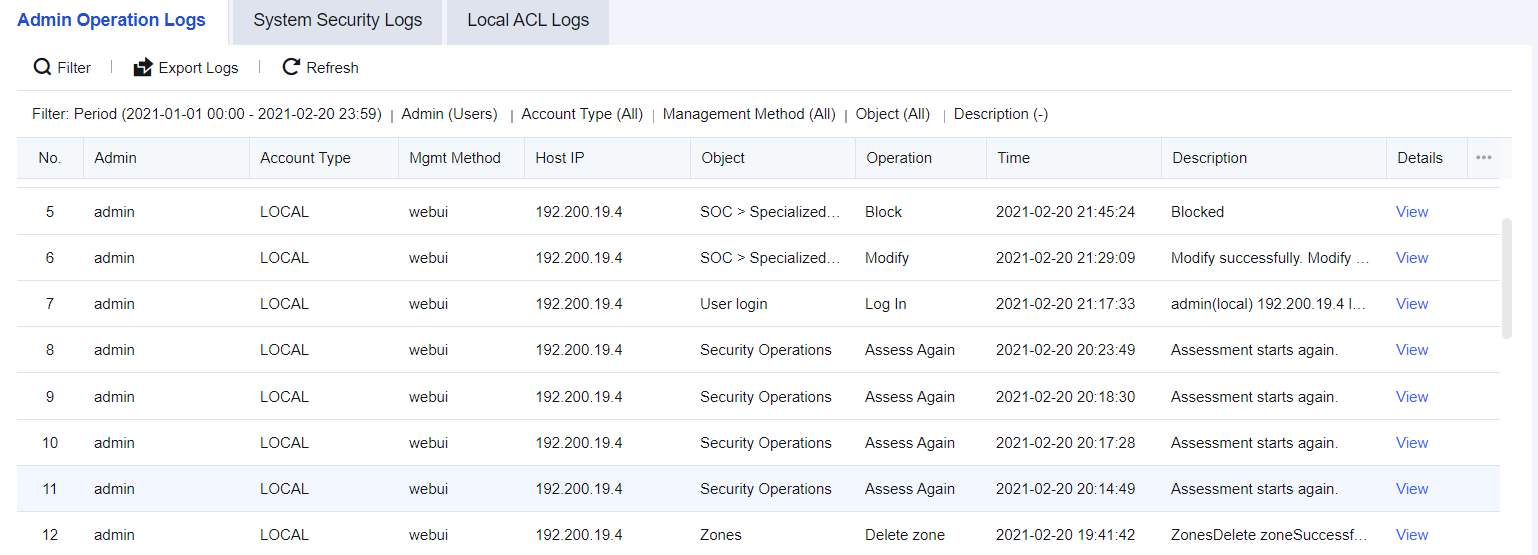

To query the login and logout logs of users logging into the control panel and the logs of all operations executed. For example, you can query the operations executed by the account Admin after logging in to the console on a particular day. The Admin Operation Logs page is shown below

Admin Operation Log Retrieval Case

It is necessary to retrieve which administrator accounts have been recently used to configure Zones for the network of a particular enterprise.

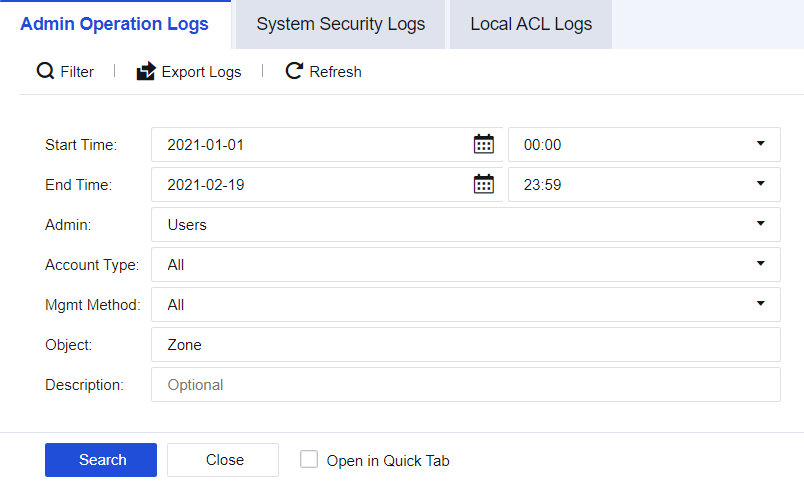

Step 1.Click Filter to retrieve the configuration details of Zones, as shown in the following figure.

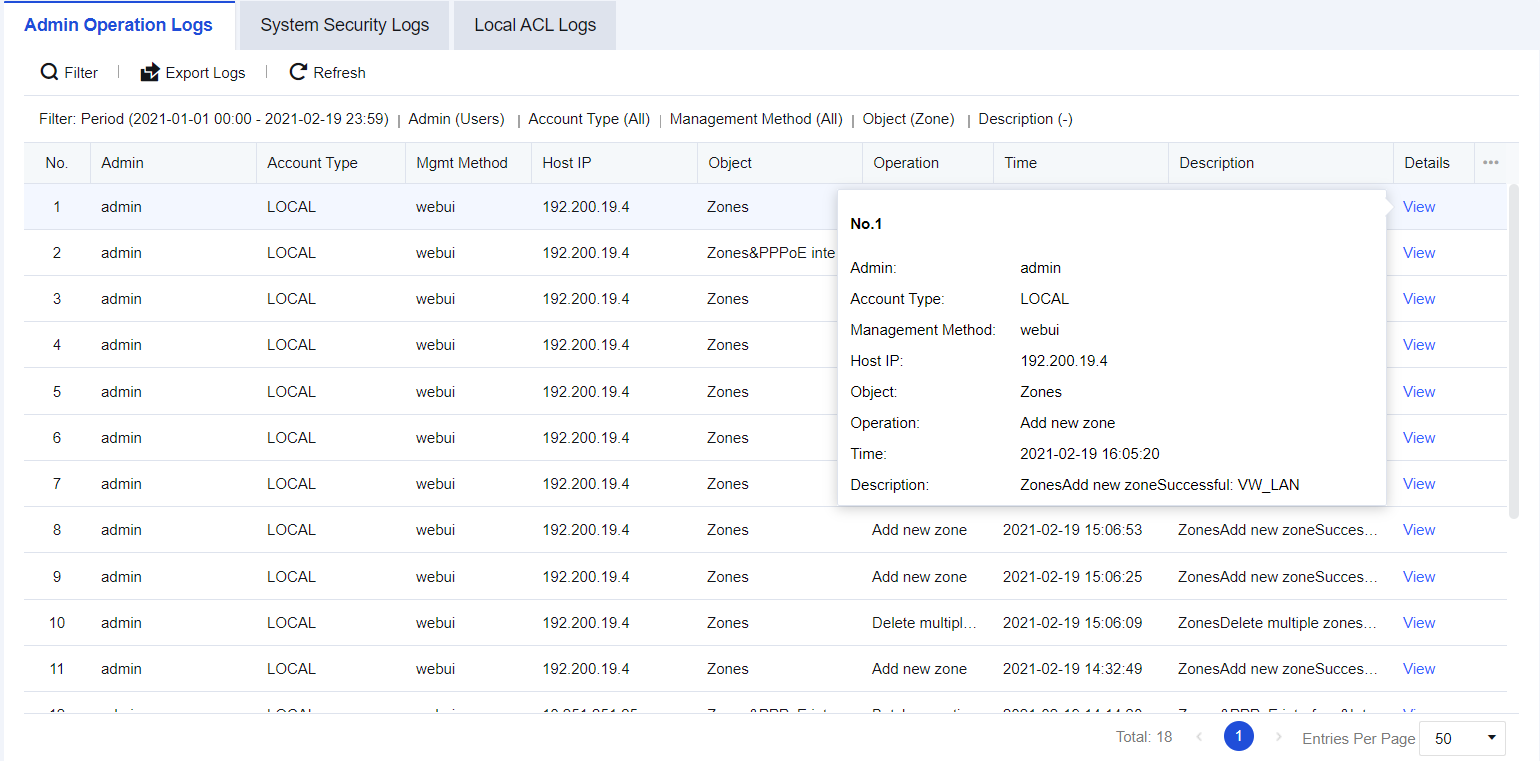

Step 2.View the results that list the Admin accounts used, operation time, hosts, and other information for Zone configuration.

System Security Logs

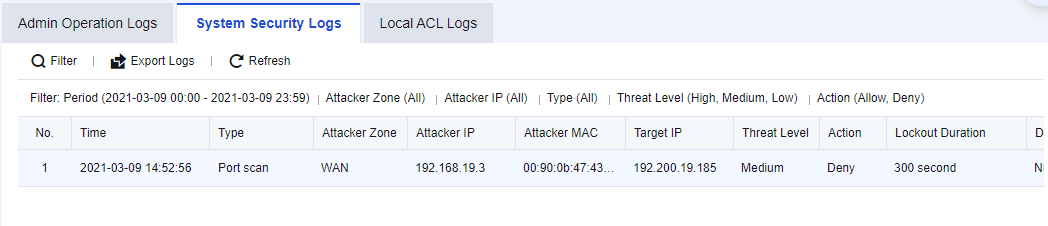

NGAF devices have the function of resisting penetration attacks. When a device suffers a malicious attack, you can view the system security logs and perform analysis. System security logs record detailed information about attacks suffered by NGAF devices. The interface is shown below.

System Security Log Retrieval Case

An enterprise needs to perform local device security protection to periodically check whether the devices are attacked. Therefore, administrators need to check all the system security logs to determine whether there are abnormalities in devices.

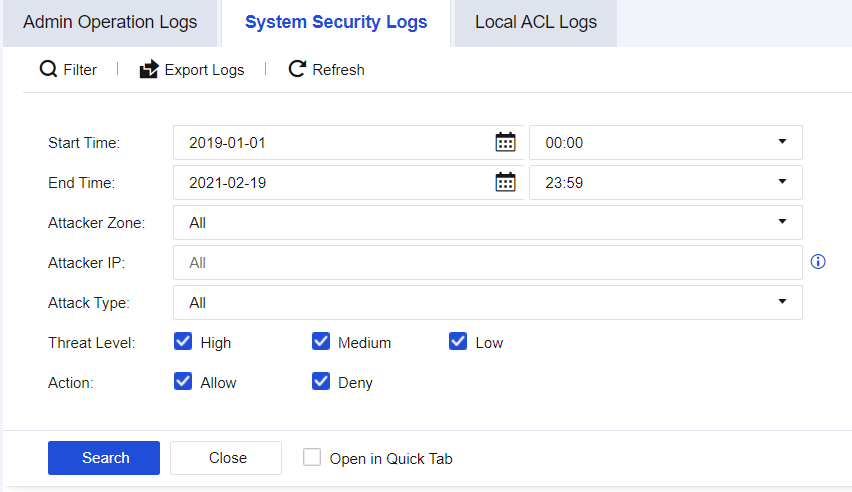

Step 1.Click Filter to perform log filtering according to needs, as shown in the figure below.

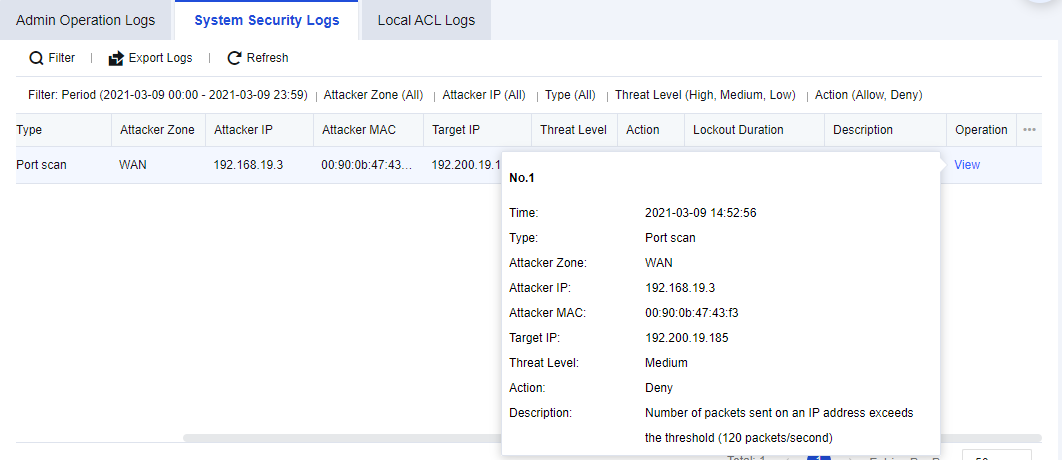

Step 2.View details of specific attacks, as shown in the figure below.

Step 3.The attack types that can be queried include port scanning, ICMP flood attack, UDP flood attack, SYN flood attack, DNS flood attack, and IP messages in the blacklist.

Local ACL

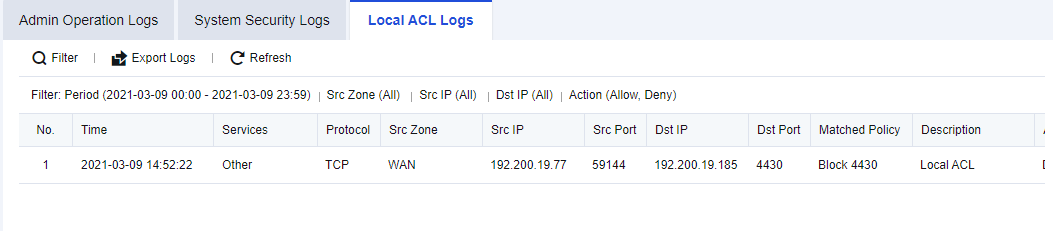

The NGAF device possesses its access control policy. It is a policy designed for endpoints accessing the NGAF. You can check which policies have been matched when endpoints access NGAF according to logs. The interface is shown below.

Local ACL Log Retrieval Case

An enterprise needs to check which endpoints have accessed the NGAF device and determine whether the access was normal.

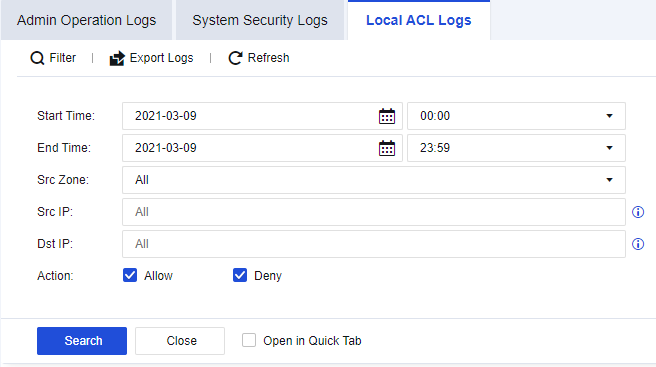

Step 1.Click Filter to perform log filtering according to needs, as shown in the figure below.

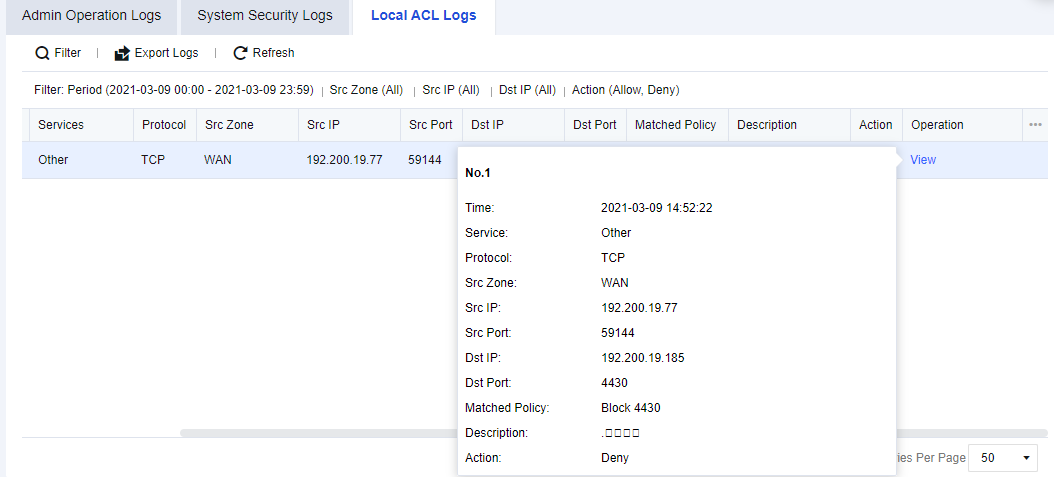

Step 2.You can check the source and destination IP addresses and other information about specific access from the results. Click View to view the details, as shown in the following figure.
