Static ARP Table

{{ $t('productDocDetail.updateTime') }}: 2026-01-07

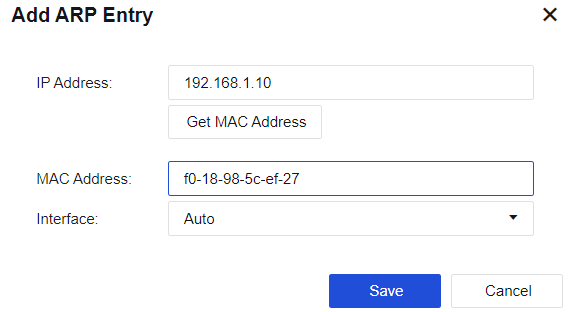

Static ARP Table is to set static binding IP/MAC entries for the device. Click Add to add a new static ARP entry, as shown in the following figure.

IP Address: Set the destination IP address of the static ARP entry that needs to be bound. The MAC address can be automatically filled in by clicking Get MAC Address.

MAC Address: Set the destination MAC address of the static ARP entry that needs to be bound.

Interface: Set the device interface that resides on the same network segment with the bound IP address.
