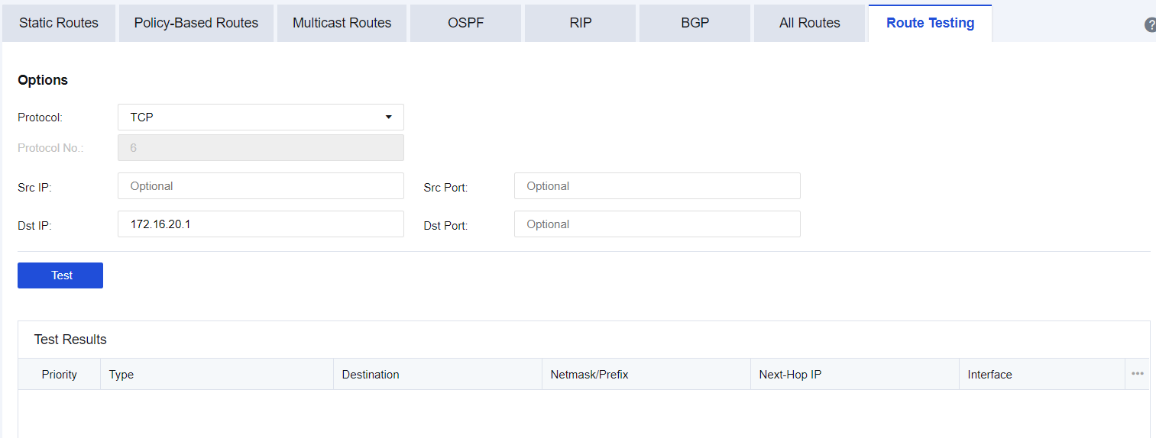

Simulate route matching by entering the IP addresses, protocols, or ports at the front end. The matched routes will be displayed by priority. See the figure below.

Protocol: Select the protocol for testing, such as TCP, UDP, ICMP, or Others.

Protocol No.: Enter the corresponding protocol number. This field can only be filled in if the option Other is selected in Protocol.

Src IP/Src Port: The source IP address or port to be tested.

Dst IP: The IP address of the destination network segment, which is required.

Dst Port: The port for the destination IP address.

After the testing is completed, the details of this route matching will be listed.
