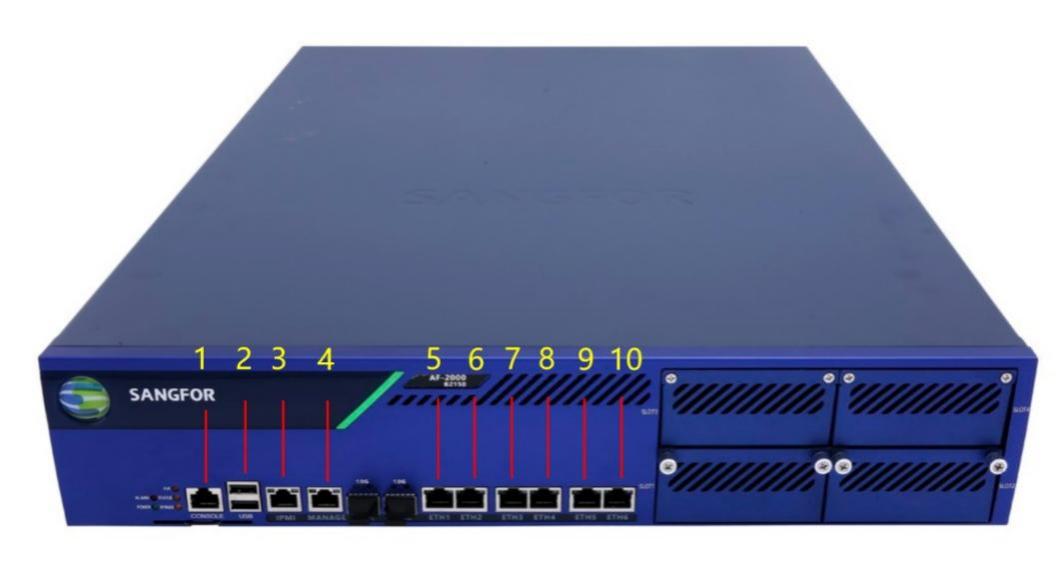

Network Secure's front panel is shown below (Network Secure-2000-B2150 as an example).
| Device Name |
No. (Front) |
Note |
| Network Secure-2000-B2150 |
1 |
CONSOLE interface |
| 2 |
USB interface |
|
| 3 |
IPMI interface |
|
| 4 |
MANAGEMENT interface (ETH0) |
|
| 5 |
ETH1 |
|
| 6 |
ETH2 |
|
| 7 |
ETH3 |
|
| 8 |
ETH4 |
|
| 9 |
ETH5 |
|
| 10 |
ETH6 |
Table 2:Networking Interfaces of Network Secure-2000-B2150

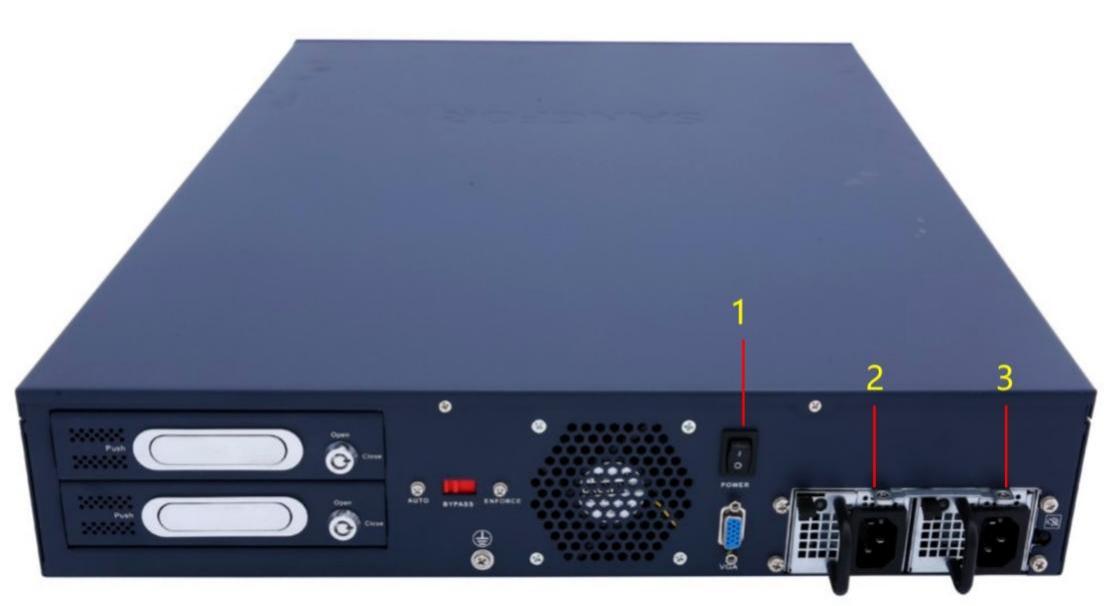

Network Secure's rear panel is shown below (Network Secure-2000-B2150 as an example).
| Device Name |
No. (Rear) |
Note |
| Network Secure-2000-B2150 |
1 |
POWER button |
| 2 |
POWER interface |
|
| 3 |
POWER interface |
Table 3:Interfaces on Rear Panel (Network Secure-2000-B2150)
Precautions:
1. The alarm indicator is steady red when the device is running. Generally, the red alarm indicator goes out after one or two minutes, indicating the device is successfully turned on. If the red alarm indicator does not go out for a long time, please turn off the device and wait for 5 minutes before turning it on.
2. If the red alarm indicator remains on, please contact Sangfor Technical Support to determine whether the device is damaged. After the normal startup, the indicator may blink red sometimes. It is normal as the device is generating a system log.
3. The CONSOLE interface is for development, testing, and debugging only. End-users need to access the device by the networking interface and logging in to the console.
