No.
Module name
Normal condition
Abnormal condition
1
Server switch button
NA
2
ID light and button
3
Reset key
4
LCD liquid crystal management module interface
5
System fault indicator
No light
When a fault occurs, it is always red
6
Memory fault indicator
Flashes red when a warning occurs
7
Fan fault indicator
8
Power failure indicator
9
System overheat indicator
10
Network status indicator (eth0 eth1)
plug-in cable
-
11

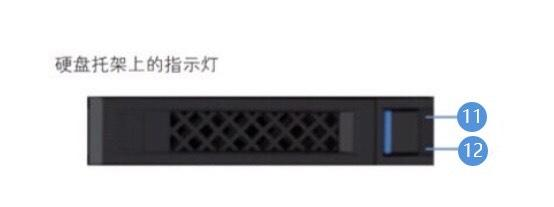

Hard drive activity indicator
green
12
Hard disk failure alarm indicator
Blinking green: Hard disk read and write activity.
Steady red: Hard disk failure
Steady blue: hard disk location
Steady purple: with RAID Rebuilding

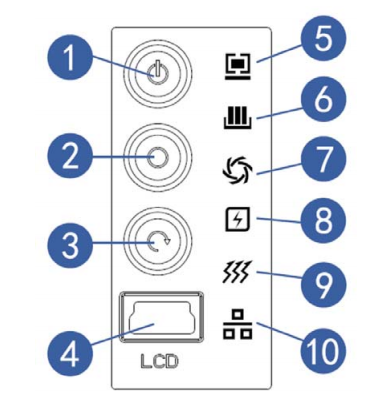

Table 19:Panel Indicators
