Console Packet Capture

{{ $t('productDocDetail.updateTime') }}: 2026-01-05

Application Scenario

It is convenient to capture packets from the node's interface through the web page, and the captured data packets can be downloaded to the local for analysis.

Steps

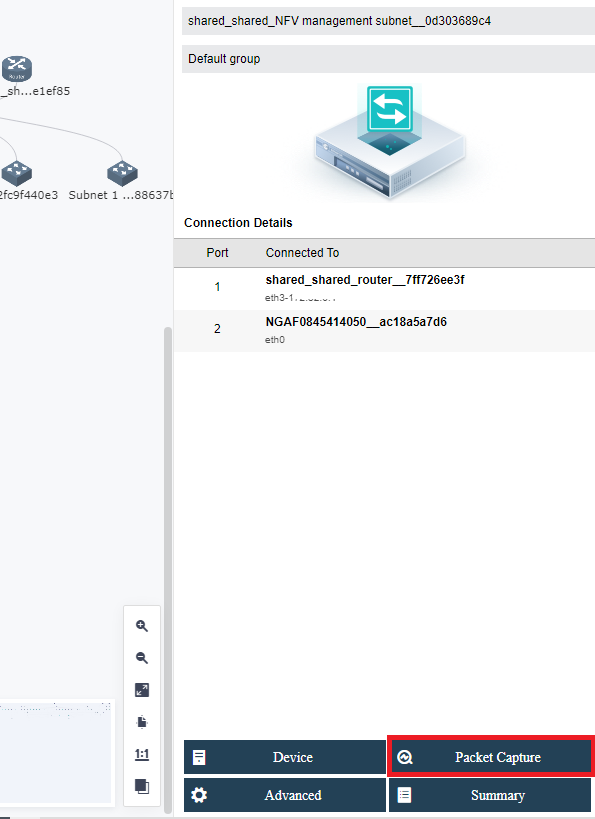

  1. Log in to the HCI console, navigate to Networking > Topology page, select the device that needs to capture packets, and click Packet Capture.

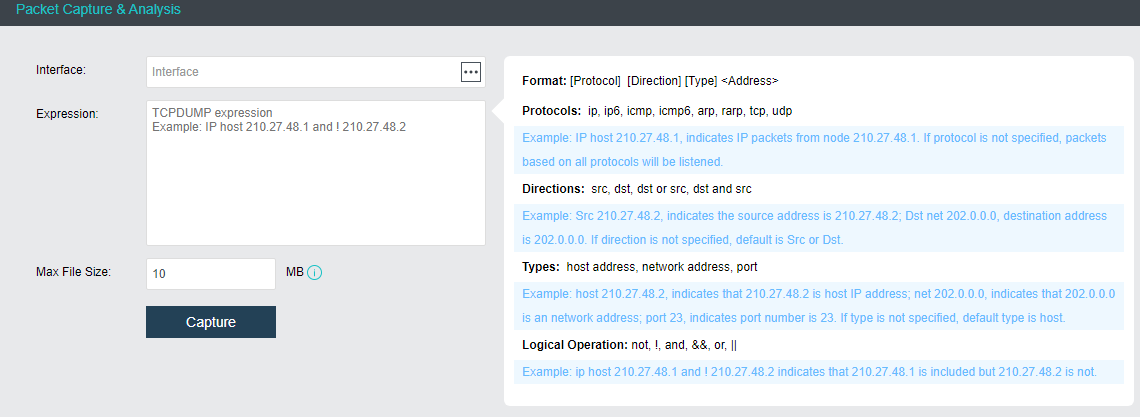

  1. Capture the data packets passing through the interface by specifying the virtual device's interface and conditions.

• Designated interface: Select the network port corresponding to the device that needs to capture packets.

• Condition: Configure the packet capture conditions. The conditional format supports Protocols, Direction, Type (address), and Logical Operation.
