Creating a new Shared Disk

{{ $t('productDocDetail.updateTime') }}: 2026-01-05

Description

The shared disk is mainly configured to use with Oracle RAC. Deployment using shared disks greatly simplifies the complexity and cost of Oracle RAC's traditional deployment mode and supports uninterrupted business switching of 100 shared disks.

Precautions

To configure Shared Disks on the HCI cluster, it is necessary to have at least three nodes or above.

Prerequisites

None.

Steps

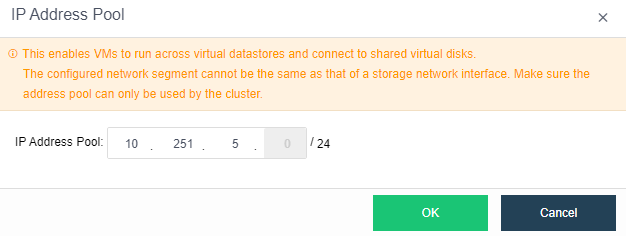

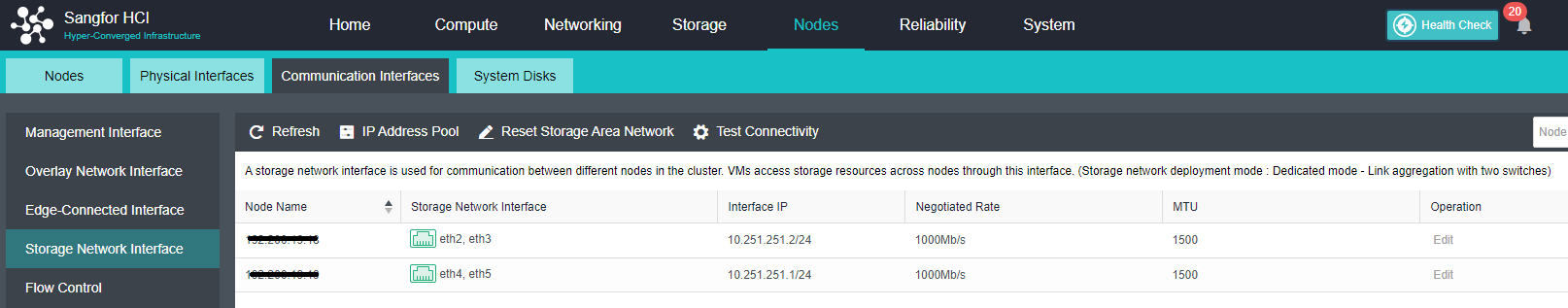

  1. Configure IP Address Pool: Go to Nodes > Communication Interface > IP Address Pool and click IP Address Pool to configure the address pool accordingly.

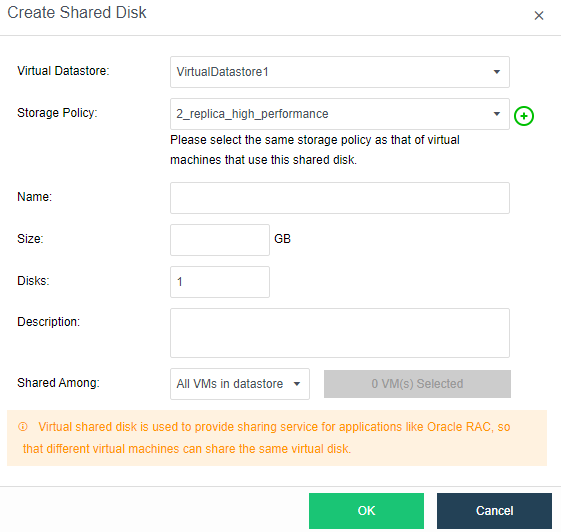

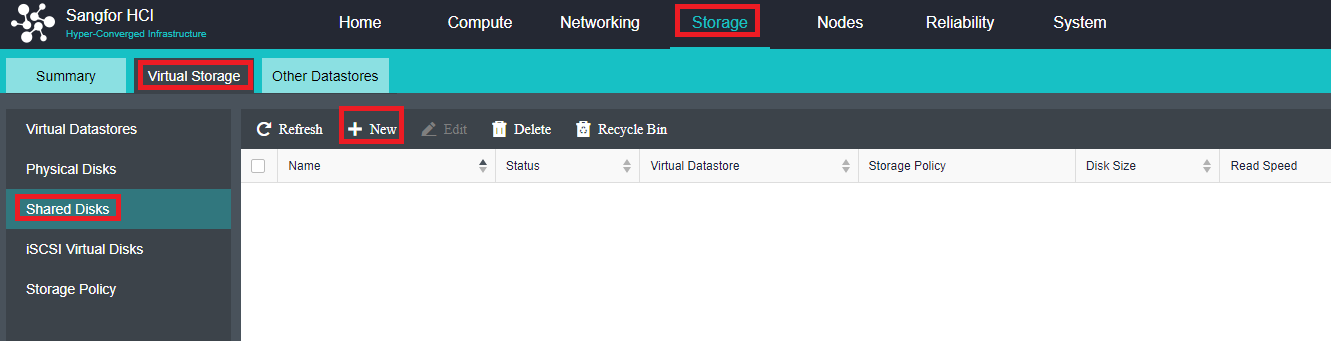

  1. Create new Shared Disks: Go to Storage > Virtual Storage > Shared Disks, click New to create a new Shared Disk.

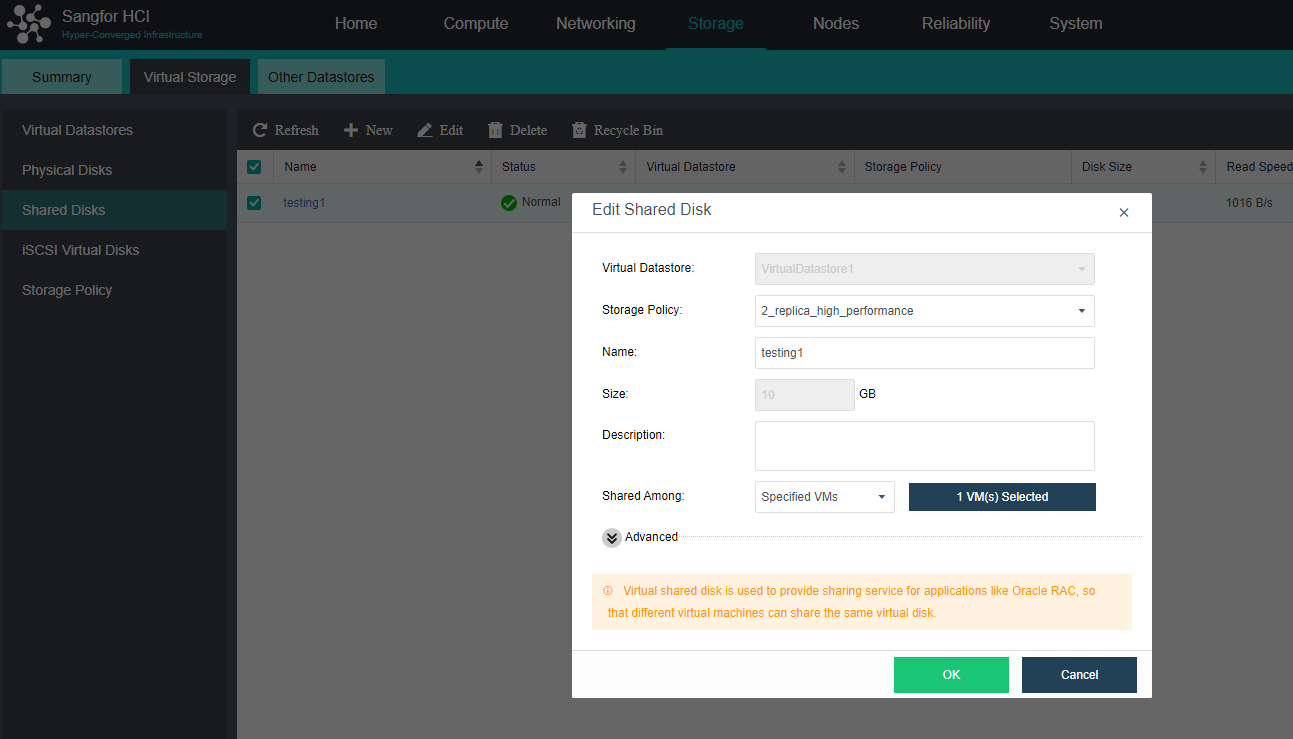

  1. Configure shared disk: Select the shared disk that needs to be modified, and press OK.
