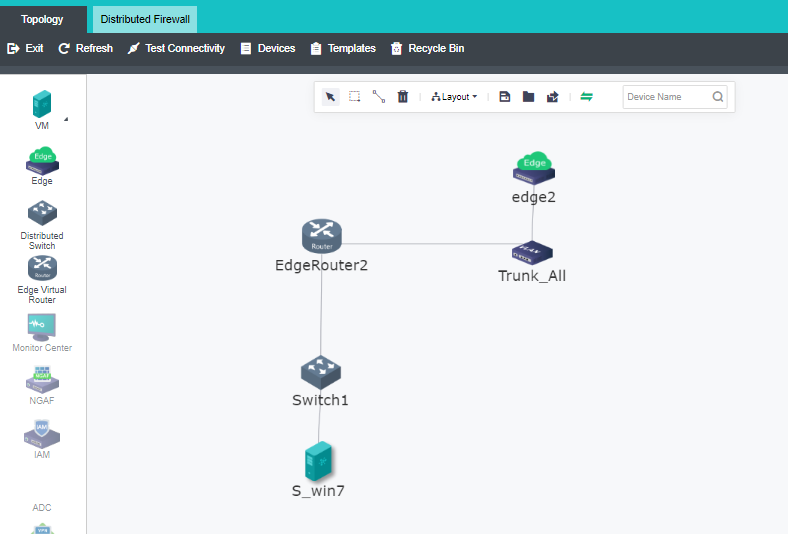

Topology of Virtual Switch Router

{{ $t('productDocDetail.updateTime') }}: 2026-01-05

Configuration instructions

  1. As a Layer 2 device, the switch connects the virtual machine and the router and configures the service network IP for routing to connect with the external service gateway.
  1. Configure routing and NAT policies on the router to enable internal virtual machines to communicate with the outside world.
