Description

This allows the administrator to create a physical outlet for a single network segment port group.

Precautions

1. The switch at the opposite end of the server interface associated with the physical interface of the non-multiple segment port group must be configured as access. The VLAN allowed by the switch port is the pvid VLAN set by the physical interface associated port group. This type of port group only allows users to use one service interface segment.

13. The physical interface supports a single interface and link aggregation. Link aggregation needs to be configured in the physical machine's physical network, and the switch's port also needs to be configured with the corresponding link aggregation mode.

The pvid of the port group of the same physical interface is the same as the switch.

Prerequisites

Complete switch configurations in accordance with Precautions.

Steps

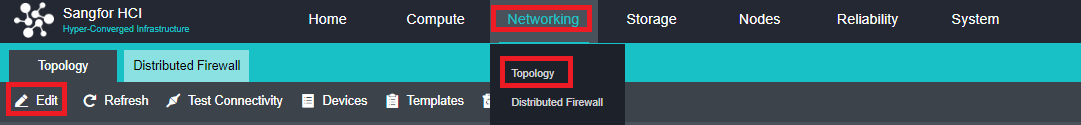

1. Navigate to Networking > Topology, and click Edit.

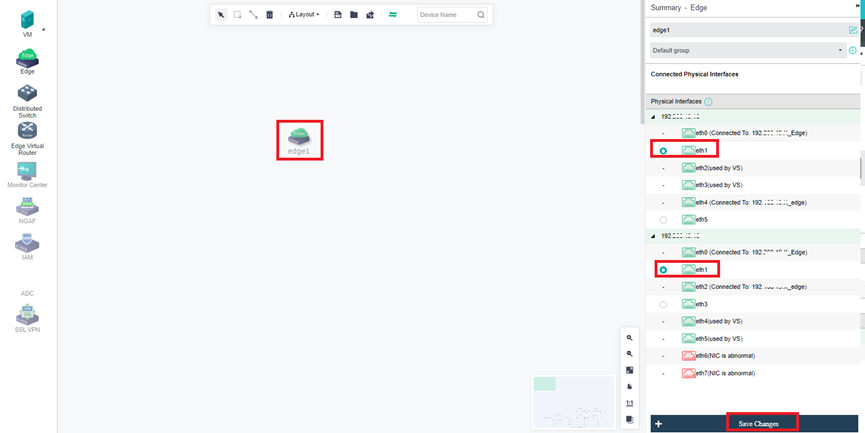

2. Drag the Edge network from the network device on the left to the network topology, and then select the corresponding physical interface from the server on the right.

3. Click Save Changes and click Exit in the upper left corner to complete the Edge network.

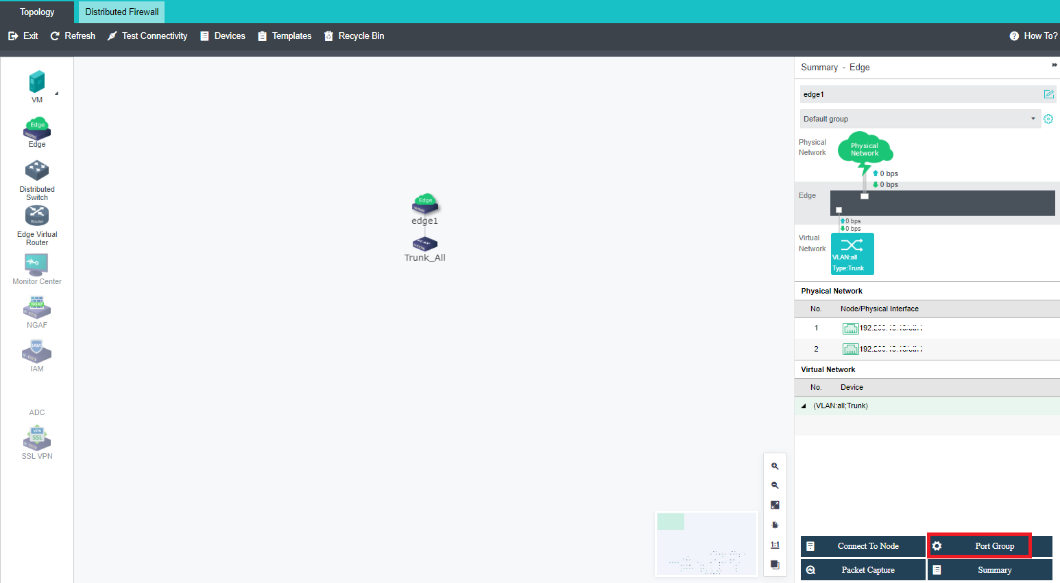

4. Select the created Edge network, and select Port Group to enter the settings page.

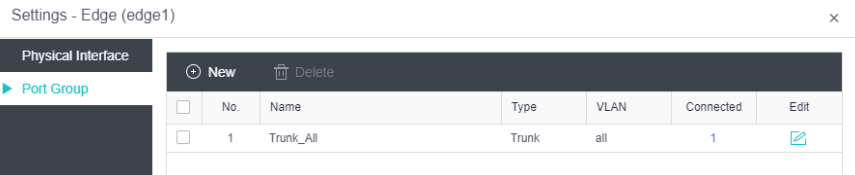

5. Select Port Group and click the edit icon. (You can also add a trunk-type port group yourself).

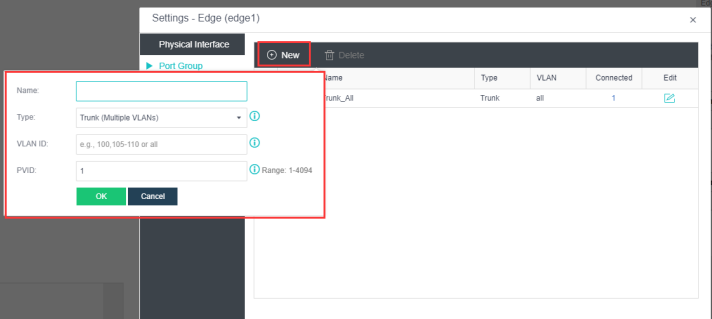

6. Configure VLAN ID and PVID VLAN. Click OK to save the configuration.

7. Verify the port group created.
