Description

It allows the administrator to create an Edge for a multi-segment port group. This type of port group allows virtual machines to access multiple network segments.

Precautions

4. The opposite end of the Edge interface associated with the multiple-segment port group must be configured as a trunk, and the pvid of the switch port is the pvid VLAN set by the port group associated with the physical network. This type of port group allows users to use multiple business network segments.
5. The physical network supports a single interface, a dual interface for link aggregation, and four interfaces for link aggregation. Link aggregation needs to be configured in the physical network of the physical machine details, and the port of the switch also needs to be configured with the corresponding link aggregation mode.
6. The pvid of the same port group is consistent with the switch.

Prerequisites

Complete switch configurations in accordance with Precautions.

Steps

1. Navigate to Networking > Topology, and click Edit.

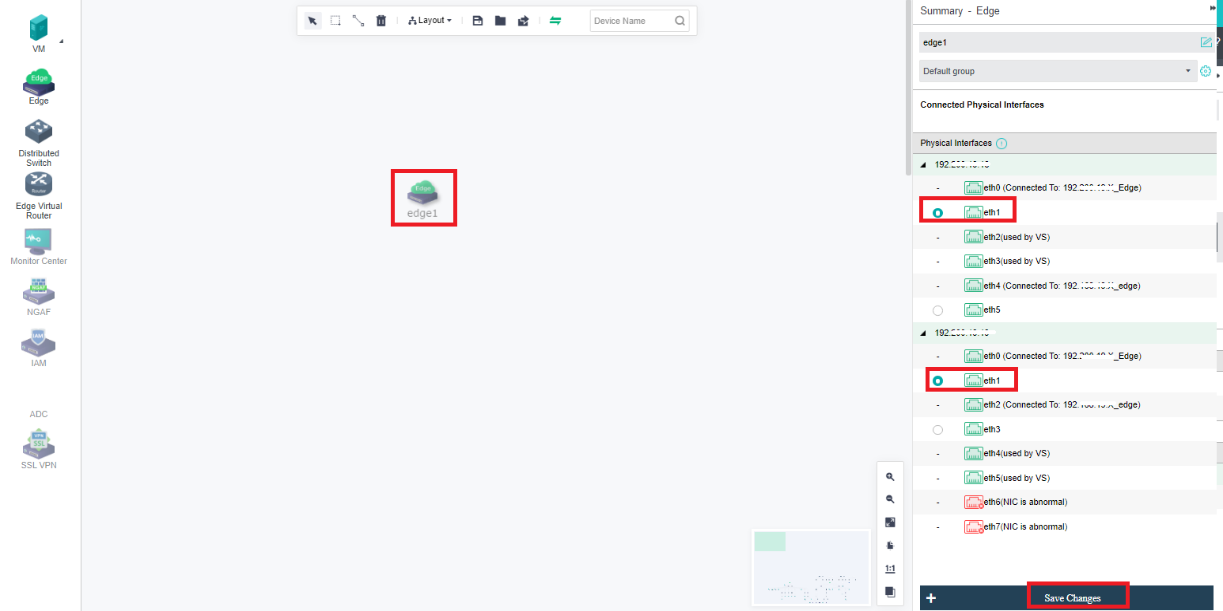

7. Drag the Edge network from the network device on the left to the network topology, and then select the corresponding physical interface from the server on the right.

8. Click Save Changes and click Exit in the upper left corner to complete the Edge network.

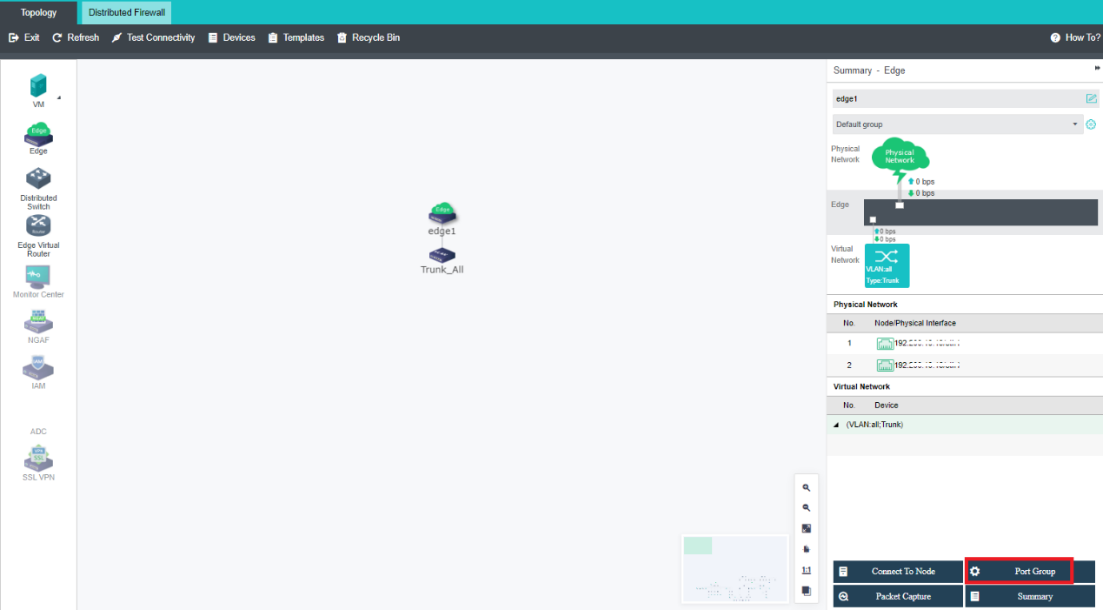

9. Select the created Edge network, and select Port Group to enter the settings page.

10. Select Port Group and click the edit icon. (You can also add a trunk-type port group yourself).

11. Configure VLAN ID and PVID VLAN. Click OK to save the configuration.

12. Verify the port group created.
