Management Port Switch without IP Address

{{ $t('productDocDetail.updateTime') }}: 2026-01-05

Description

Through the management interface, the cluster can manage the node. When the management network is re-planned, it can switch the management network port without IP address in batches to realize the smooth switching of the management network.

Precautions

  1. When the cluster is configured with a cluster IP and the management interface is on the same network segment, it is not supported without IP switching. Instead, only a management interface with IP switching is allowed.
  2. After modifying the management interface for the non-cluster controller without IP and making the non-cluster controller offline, log in to the non-cluster controller separately to switch the management interface back. You need to log in to the non-cluster controller background to call the interface for switching the management interface and switch the management interface back to the network.
  3. If the new management interface's IP information is empty, the old network interface's information will be brought to the new NIC when switching the management interface.

Prerequisites

None.

Steps

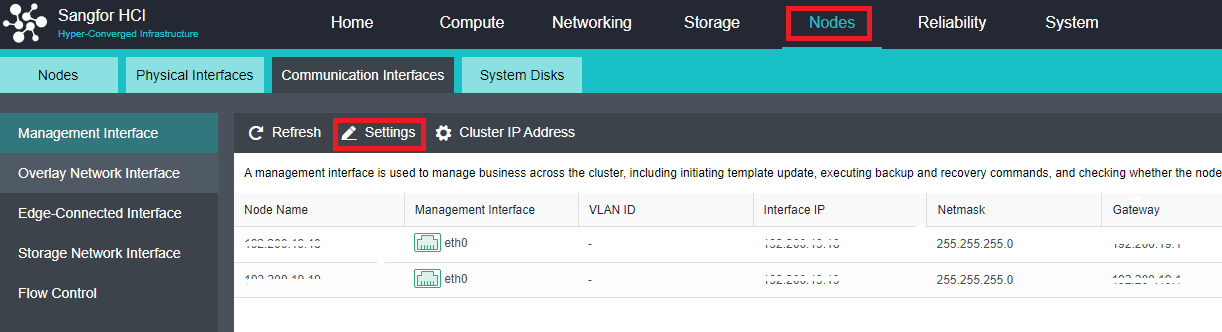

  1. Navigate to Nodes > Communication Interfaces > Management Interface, and click Settings.

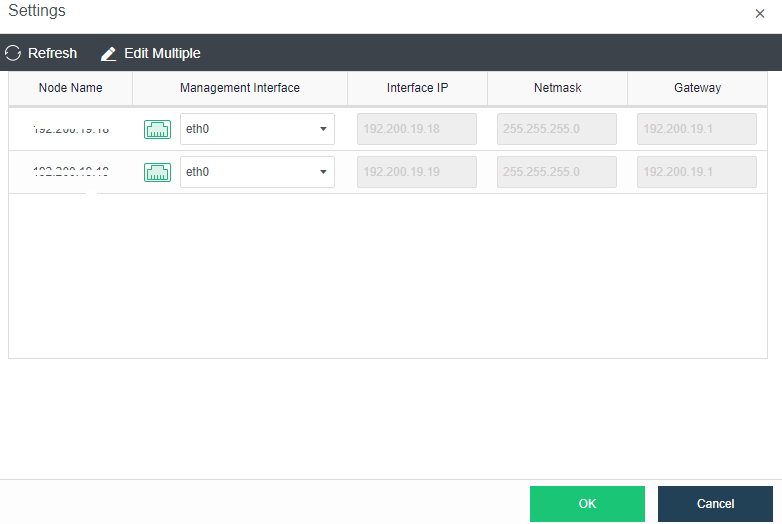

  1. Select the new management communication interface, and click OK.

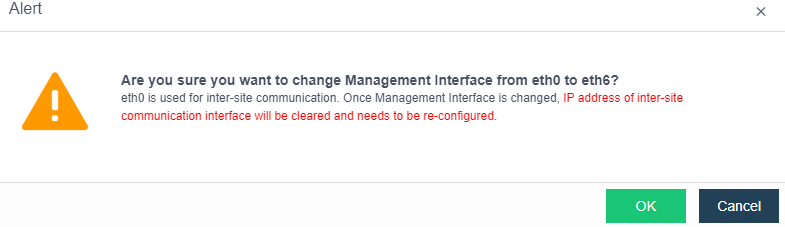

  1. Click OK on the prompt.

  1. After clicking OK, select whether to switch the management interface with an IP address in the pop-up confirmation option box and click OK.
