Description

NFV starts, shuts down, powers off, migrates, deletes operations, and supports the simultaneous operation of multiple devices.

Precautions

1. The name of the vAF virtual machine contains the word server, and the single sign-on will be intercepted by vAF and recognized as SQL injection. The name of the vAF virtual machine should not have the word server, and it should be changed to another name.

1. Opening vSSL VPN and vAF console at the same time will affect each other, failing of single sign-on. If you need to open at the same time, please use different browsers to open vAF and SSL VPN for single sign-on.
2. Do not deploy multiple vAFs in the transparent mode in a broadcast domain, which will cause MAC address conflict.
3. Try not to pass the vAF for east-west traffic. The reason is that the east-west traffic will be relatively large, and the performance of vAF is much lower than that of physical AF. Once a performance bottleneck is encountered, the network will slow down. There is no need to perform Layer 7 cleaning for east-west traffic, and the distributed firewall of aNET can meet the requirements. It is recommended to deploy vAF at the egress of north-south traffic.
4. After the cluster deployment is completed, if NFV is used (such as vAD, vAF, etc.), it is not recommended to modify the CPU cores consumed by network forwarding and memory consumed by network forwarding in the host. In this case, the network cables of all virtual network devices must be manually deleted and reconnected to recover.
5. The clone deployment of NFV is not supported, and a new deployment needs to be added from the Network Topology.

Prerequisites

None.

Steps

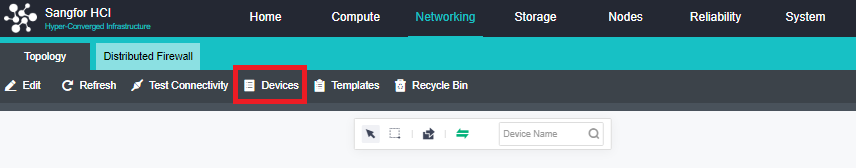

1. On the [Networking] page, click [Devices] to enter the virtual network device management page.

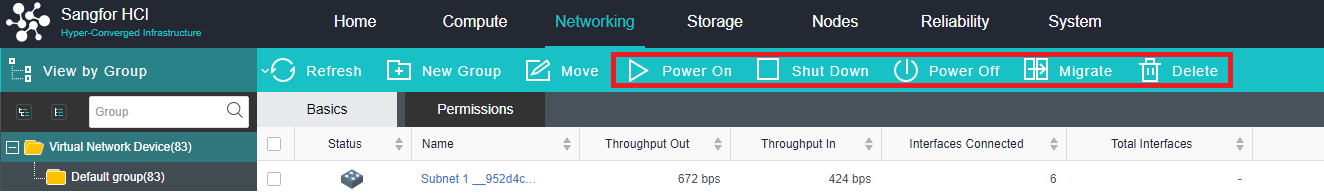

2. Check one or more NFV devices to be managed, and then click the desired operation.
