Description

In the operation and maintenance scenario, the production virtual machines' network traffic must mirror the security auditing device to achieve traffic filtering and monitoring. Sangfor HCI supports replicating and forwarding virtual machines/network traffic to the egress interface to mirror external devices. It requires configuring traffic mirroring on the intermediate switch.

Precautions

1. A mirror source policy object can select up to 1024 network interfaces.

2. The mirror target object can only select one virtual machine or network device network interface.
3. If a virtual machine/network device network interface or physical node edge interface is used as a mirror source object, it can only belong to one traffic mirroring policy; if it is used as a mirror target object, it can belong to multiple traffic mirroring policies.
4. Traffic mirroring from the physical network to the virtual network is not supported.
5. As the number of policies increases, the latency of production network traffic increases, and the throughput decrease. It is recommended to configure less than 100 policies.
6. The virtual machine referenced by the traffic mirroring supports intra-cluster migration, and the traffic mirroring would still take effect after the migration.
7. Support configuring traffic mirror for separate physical egress interface. In the scenario of mirroring virtual network traffic to an external device, the mirrored traffic utilizes the edge interface; when mirroring across nodes in a cluster, the mirrored traffic utilizes the VXLAN interface. Planning an independent physical interface for traffic mirroring and forwarding is recommended.
8. When the traffic mirroring is through the physical edge interface, a VLAN must be configured, and the VLAN must be the same as the VLAN allowed on the physical switch (truck port) connected to the physical egress interface. The mirrored traffic cannot include the traffic of this VLAN.
9. When the edge-connected interface to the physical egress interface is used in the mirroring policy, when the edge-connected interface to the physical egress is modified, the corresponding physical egress interface in the traffic mirroring policy is also changed.
10. Cross-resource pool mirroring is only supported in connected domain scenarios.
11. Even traffic intercepted by DFW and traffic restricted by QoS will be captured and forwarded by traffic mirroring.
12. When the network interface is multiplexed, and the network interface is used as the mirror source, only edge traffic is captured.

Prerequisites

N/A.

Steps

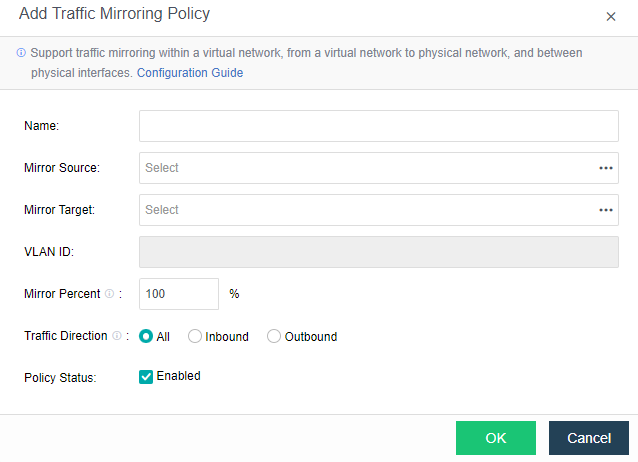

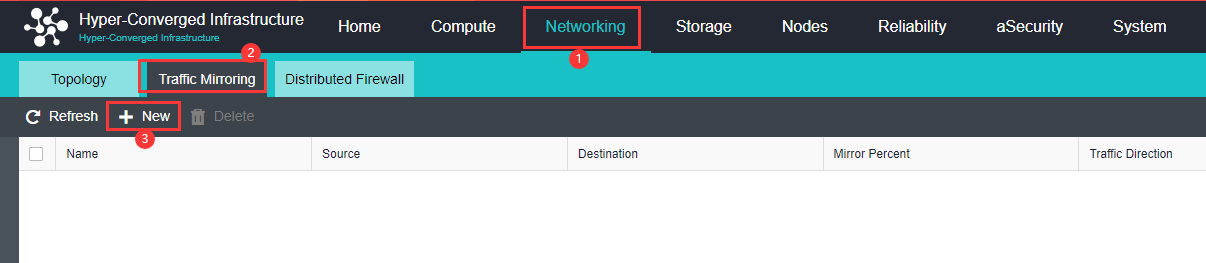

1. Navigate to Networking, click Traffic Mirroring, and then click New to create the traffic mirroring policy.

2. Sangfor HCI supports configuring three traffic mirroring policies: VM Interface, NFV Device Interface, and Edge-connected Interface.

• Mirror Source:

VM Interface: Specify the network interface of the virtual machine/network device.

NFV Device Interface: specify the virtual machine/network device network Interface.

Edge-Connected Interface: Specify the edge interface of the physical node.

• Mirror Target:

VM Interface: Specify the network interface of the virtual machine/network device.

NFV Device Interface: specify the virtual machine/network device network Interface.

Edge-Connected Interface: Specify the edge interface of the physical node.

• VLAN ID:

VM Interface: not required.

NFV Device Interface: Specifies the VLAN ID tagged in the mirrored packets.

Edge-Connected Interface: Specifies the VLAN ID tagged in the mirrored packets.

• Mirror Percent:

Percentage of the traffic to be mirrored. By default, it is 100%, which means all the traffic will be mirrored.

• Traffic Direction:

The direction of the source object's traffic.

All: Mirroring the traffic received and sent by the source object.

Inbound: Only mirroring the traffic received by the source object.

Outbound: Only mirroring the traffic sent by the source object.

• Policy Status:

Check Enabled to enable the policy to take effect.

3. After the policy configuration is complete, the network traffic at the source can be monitored on the destination device.
