Description

Applicable to VDI scenarios, the platform supports scaling endpoint communication interfaces for aDesk/VDI services separately for the communication between aDesk/VDI clients and servers.

Precautions

1. It is recommended to prioritize using the idle physical network interface of HCI and configure a static route on the HCI platform so that the IP on the endpoint communication interface can communicate with the network where the user endpoint is located (direct connection mode) or the AD device serving as a proxy gateway (AD proxy mode).
2. In the scenario where the HCI cluster only runs VDI services, in consideration of simplified deployment, the aDesk communication interface and the management interface can be multiplexed. In this case, the configuration of the management interface should be at least dual Gigabit link aggregation mode.
3. The end user's internal network security device needs to allow the traffic for aDesk network and proxy devices (such as AD proxy gateway, aTrust proxy gateway) to access the aDesk and node communication interface TCP&UDP 5500, 8888, 13500-13999 communication permissions.
4. It is forbidden to use Round robin among interfaces for aDesk communication interface.

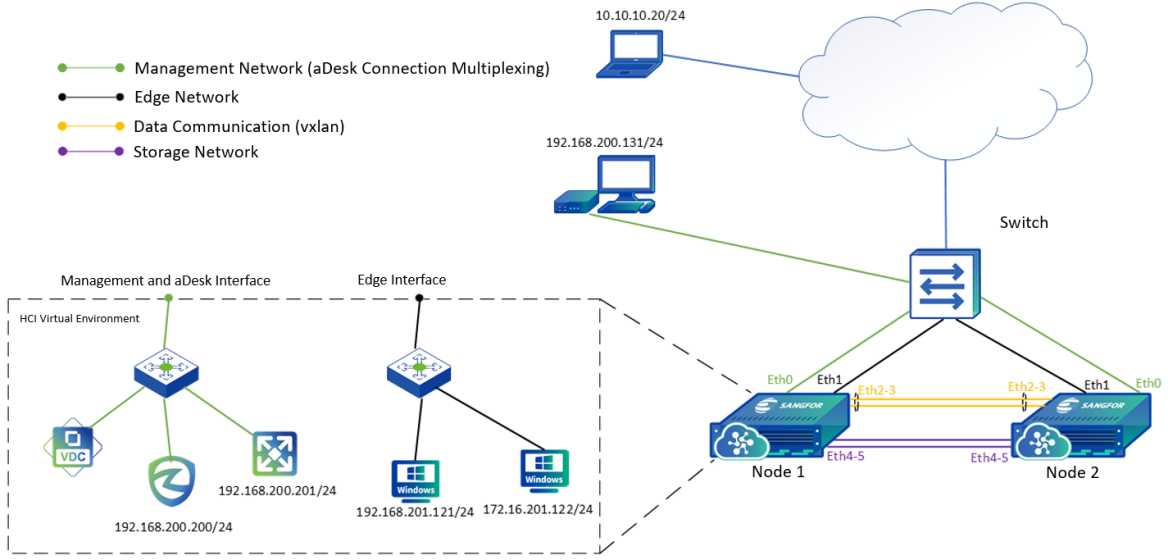

Topology

Steps

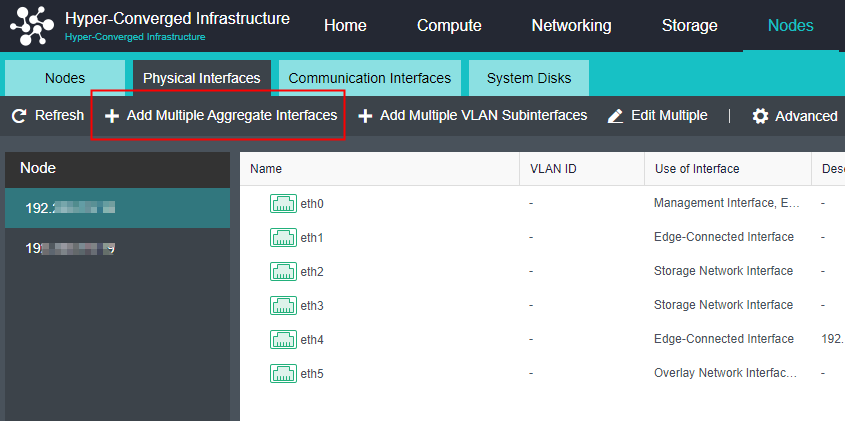

1. It is recommended to use aggregated network interface: in the HCI WebUI console, navigate to Nodes > Physical Interfaces then click Add multiple aggregate interfaces, and select two network interfaces. For example, eth2 and eth3, and the load balancing mode of aggregate interface support selecting Static Aggregation and LACP mode. If it is standard link aggregation, it is recommended to select the Layer 4 load balancing mode. If the switch does not support the Layer 4 load balancing, then it is recommended to select the load balancing mode Based on MAC address.

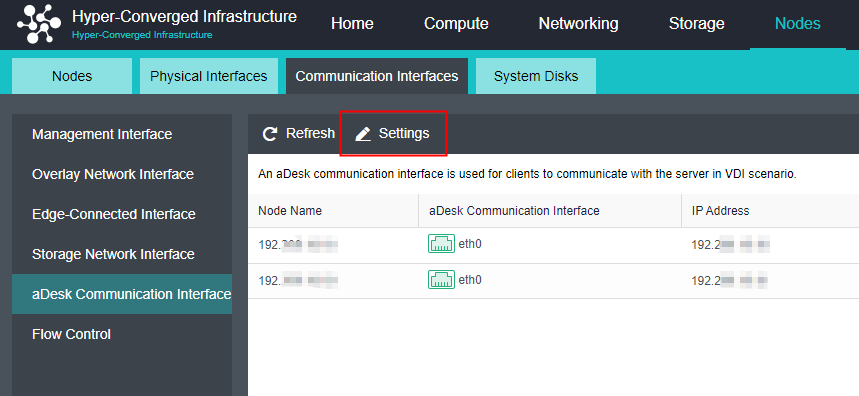

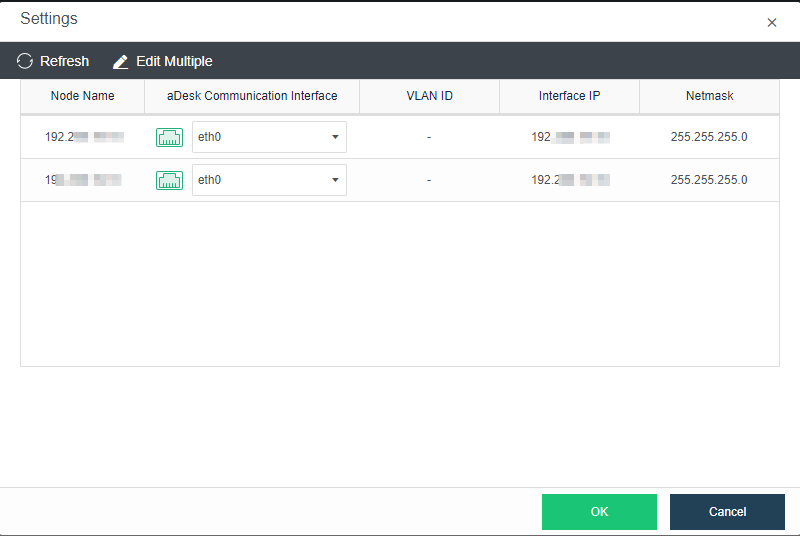

2. In the HCI WebUI console, navigate to Nodes > Communication Interfaces, click the aDesk Communication Interface, and click Settings to enter the configuration page, where you can modify the aDesk Communication Interface.
