Manage Communication Port Configuration

{{ $t('productDocDetail.updateTime') }}: 2026-01-05

Scenario

It is recommended to use the aggregation interface as the management communication port to increase the bandwidth and improve the network stability of the platform.

Precautions

  1. The peer switch needs to configure the corresponding interface aggregation mode when using the aggregation interface. Otherwise, the network will be blocked, and the HCI management interface cannot be logged in.
  1. The aggregation of the network interface is not supported.
  2. Direct aggregation of two interfaces with different roles is not supported. Aggregation can be performed after canceling one interface role. For example, eth0 (management interface) and eth1 (VXLAN interface) cannot be aggregated directly. The VXLAN interface can be adjusted to eth2. At this time, eth0 (management interface) and eth1 (no role) can be aggregated.

Steps

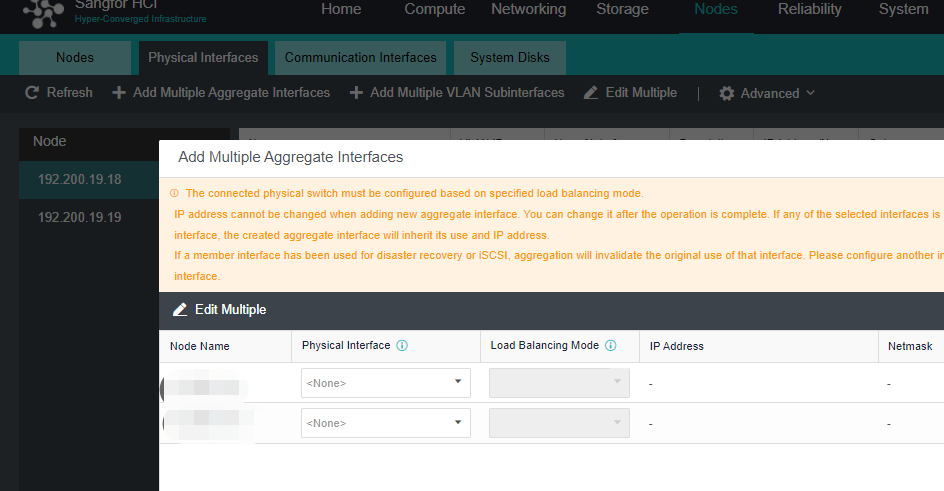

  1. Click Nodes > Physical Interface on the HCI console, click Add Multiple Aggregate Interfaces, and select two interfaces. The aggregation mode recommends loading according to MAC or IP address.

  1. Click Nodes > Communicate Interface in the HCI console. Among the four interface roles, click Management Interface, click Setting to enter the configuration page, and select the management interface as the added aggregation port.
