Resource Options

{{ $t('productDocDetail.updateTime') }}: 2026-01-05

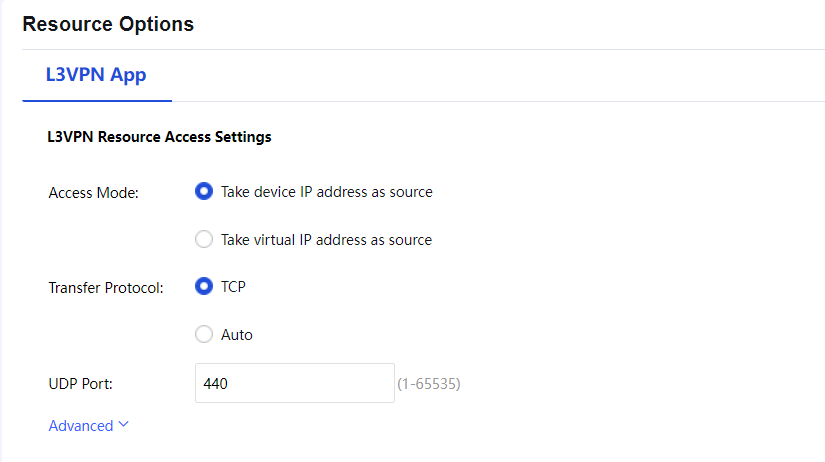

Resource options contain the parameters setting for L3VPN resources. The configuration page is shown as below:

Access Mode: SSL VPN user L3VPN resource access mode can be defined either by using device IP as the source IP address or virtual IP address as source IP. If Take device IP address as source is chosen, the host/server in the internal network will receive the packet with the device IP address as the source IP address. If Take virtual IP address as source is chosen, the server will receive packets with a virtual IP address as the source IP address. The virtual IP address is offered by the virtual IP pool mentioned in the section above.

Transfer Protocol: To select L3VPN applications transfer protocol (TCP or UDP). Click on the Advanced option to configure the IP of the Local Virtual Adapter.
