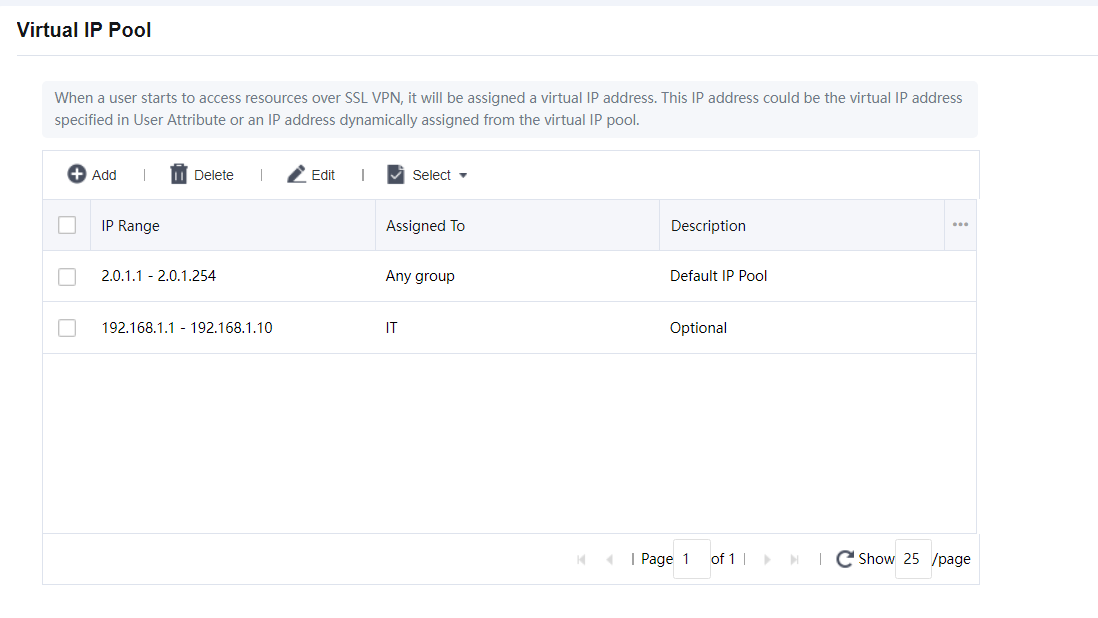

The virtual IP pool provides virtual IP addresses to the SSL VPN user access via L3VPN resources, and the IP pool shouldn’t conflict with other intranet network segments. We recommended using isolated network segments or keep the default IP pool. The page is shown as below:

IP range: IP pool configuration for start IP to the end IP address.

Assigned To: Target SSL VPN user or group to assign with a selected IP range.

Description: Configure description for the IP pool range.

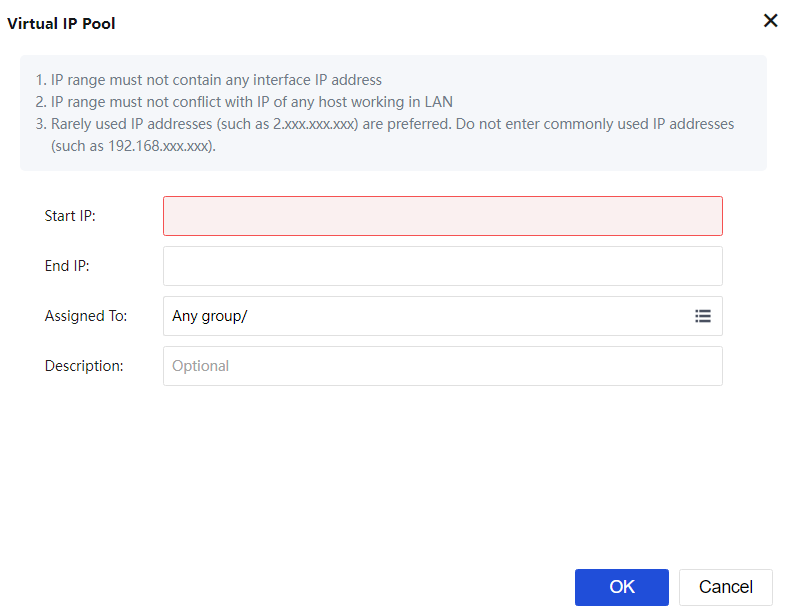

Select Add option to create a new entry for the IP pool, and the interface is shown below:

IP segments in the virtual IP pool cannot conflict with intranet IP segments.

The IP address in the virtual IP pool cannot include the IP address configured on the other interfaces.
