It consists of the Schedule and Algorithm sub-modules.

Schedule

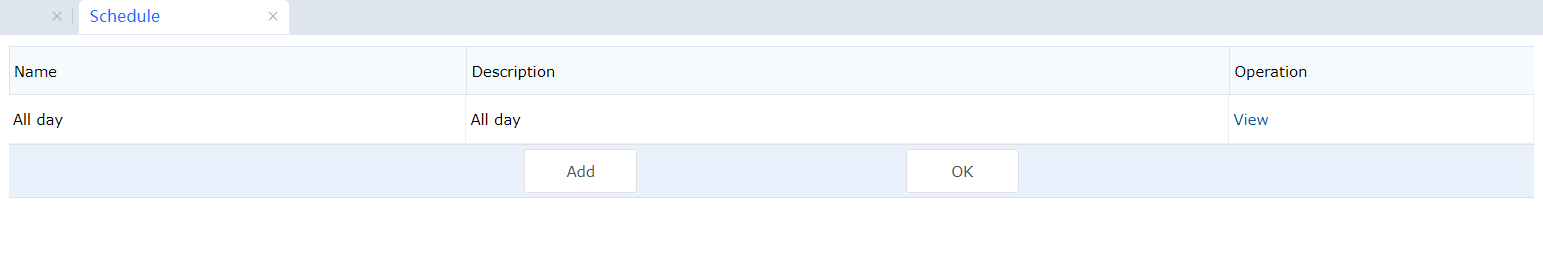

Define the common period combinations, which can be used in the User Management and Intranet Permissions windows. The current time of the IAG prevails. See the following figure.

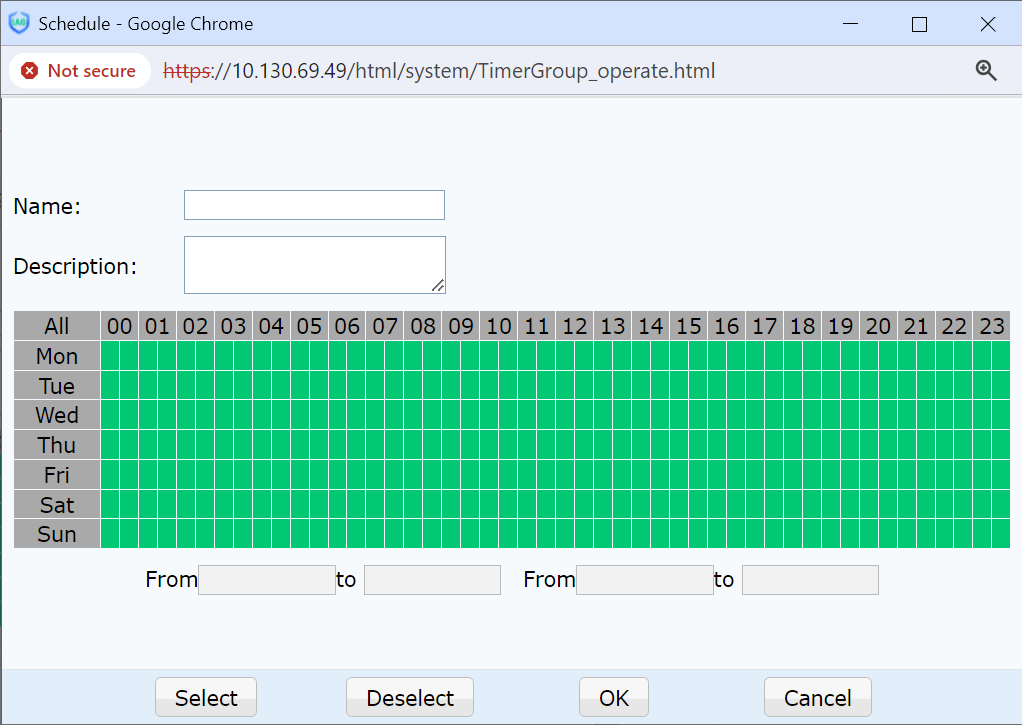

When you click Add, the Schedule dialog box is displayed. See the following figure.

In this example, a period called Business Hours is defined. Select period combinations and click Invalidate Rule. (By default, all periods are valid.) In this case, rules are ineffective in the selected periods. Click Save.

Algorithm

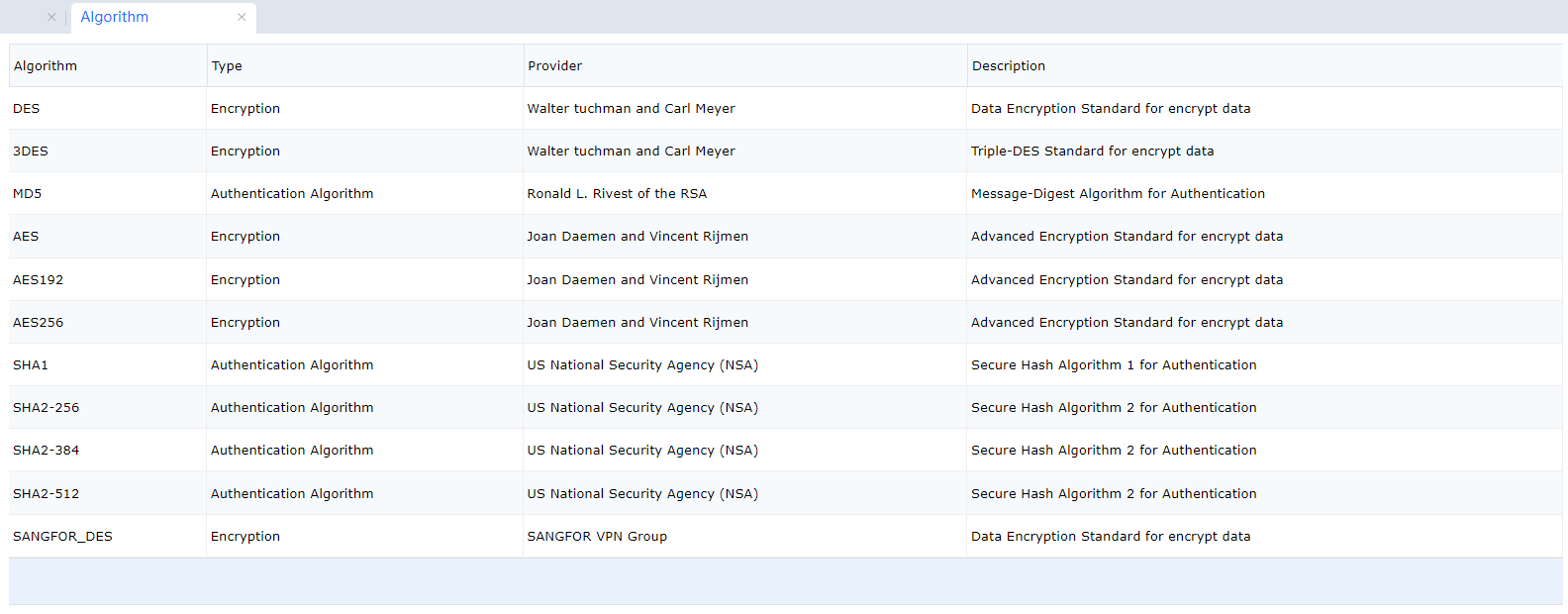

View and add data encryption algorithms supported by the IAG. The algorithms encrypt the data transferred in the VPN network set up by the hardware device to ensure data security. See the following figure.

The IAG provides the DES, 3DES, MD5, AES, SHA-1, SINFOR_DES, SCB2, SM2, SM3, and SM4 encryption and authentication algorithms. You can add other algorithms as required. Before adding them, contact Sangfor service support.
