Drop DNS Packet

{{ $t('productDocDetail.updateTime') }}: 2025-12-29
  1. Prepare an IAG device configured with routing or bridge mode.
  1. Discard access to specific domain names, which is mandatory.
  2. Directly discard the user's access to the domain name www.Sangfor.com.cn.

Configuration:

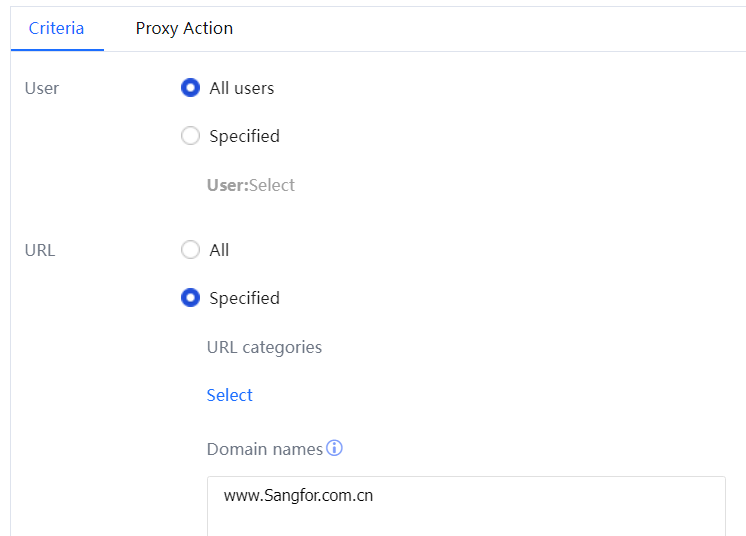

  1. Configure DNS Proxy > Add > Criteria

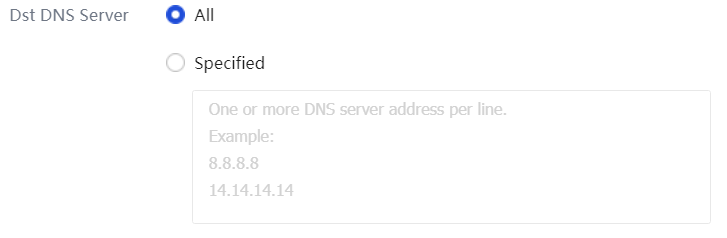

For all users, define the access domain name as www.Sangfor.com.cn and the tested user PC's DNS destination DNS server as All.

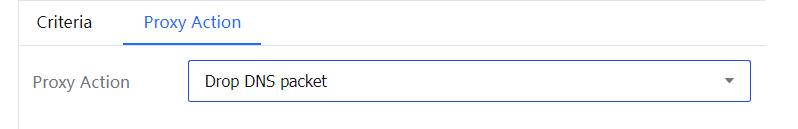

  1. Configure Proxies. Select Drop DNS packet[LCH129][A130].

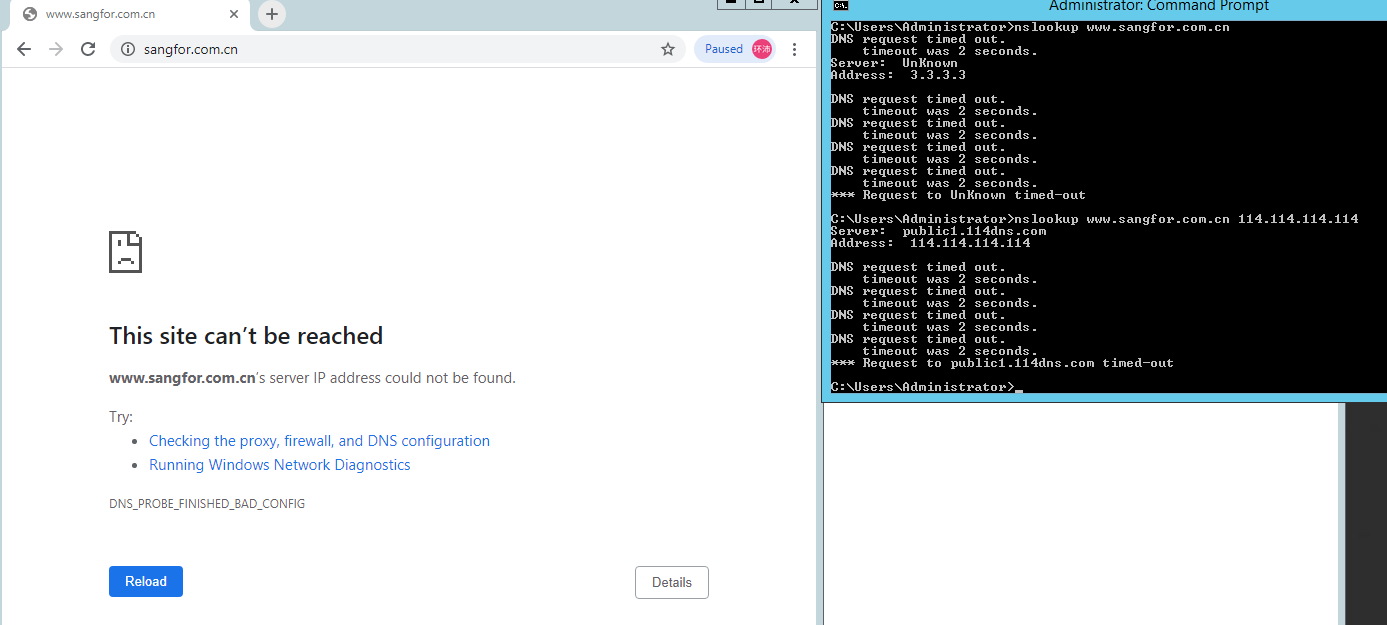

Look up the domain name www.Sangfor.com.cn directly using the nslookup command on the tested PC or access the website directly via a browser. P4260#yIS1
