Sangfor IAG Hardware Device

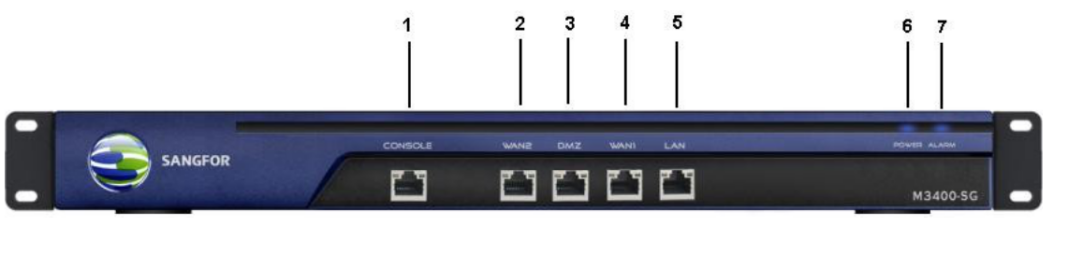

The foregoing figure shows the front panel of the Sangfor IAG device. The interfaces or indicators on the front panel are described respectively in the following table.
| No. |
Interface/Indicator |
Usage |
| 1 |
CONSOLE Interface |
The interface used for Bypass Switch and SMS modem connectivity. |
| 2 |
WAN2 (eth3) |
The network interface to be defined as WAN2 interface. |
| 3 |
DMZ (eth1) |
The network interface to be defined as DMZ interface. |
| 4 |
WAN1 (eth2) |
The network interface to be defined as WAN1 interface. |
| 5 |
LAN (eth0) |
The network interface to be defined as LAN interface. |
| 6 |
POWER Indicator |
The power indicator of the IAG gateway device. |
| 7 |
ALARM Indicator |
The alarm indicator of the IAG gateway device. |
Table 1:Interface Description 1
The CONSOLE interface is only for debugging by technical engineers. The end-users connect to the device via the network interfaces.
