Application Statistics Query Case

{{ $t('productDocDetail.updateTime') }}: 2025-12-25

An administrator needs to perform statistical analysis on the traffic of applications in a particular enterprise network to know which applications occupy the higher bandwidth.

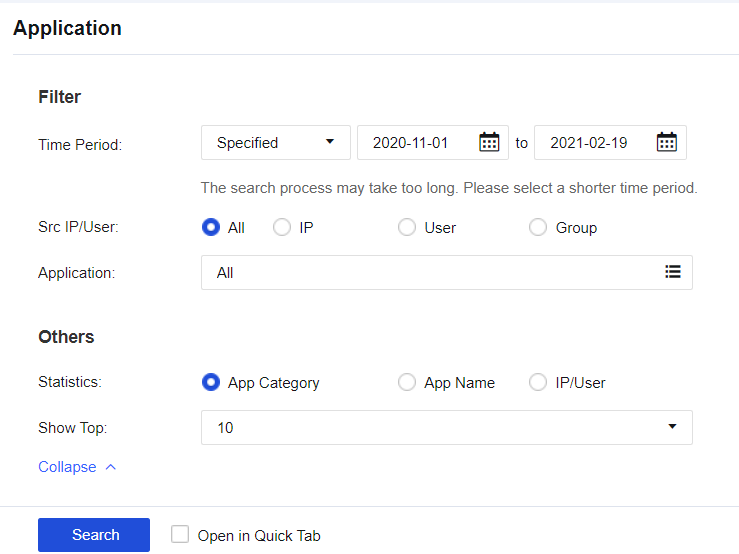

Step 1.Click Filter to perform application filtering according to needs, as shown in the figure below.

A screenshot of a computer

Description automatically generated

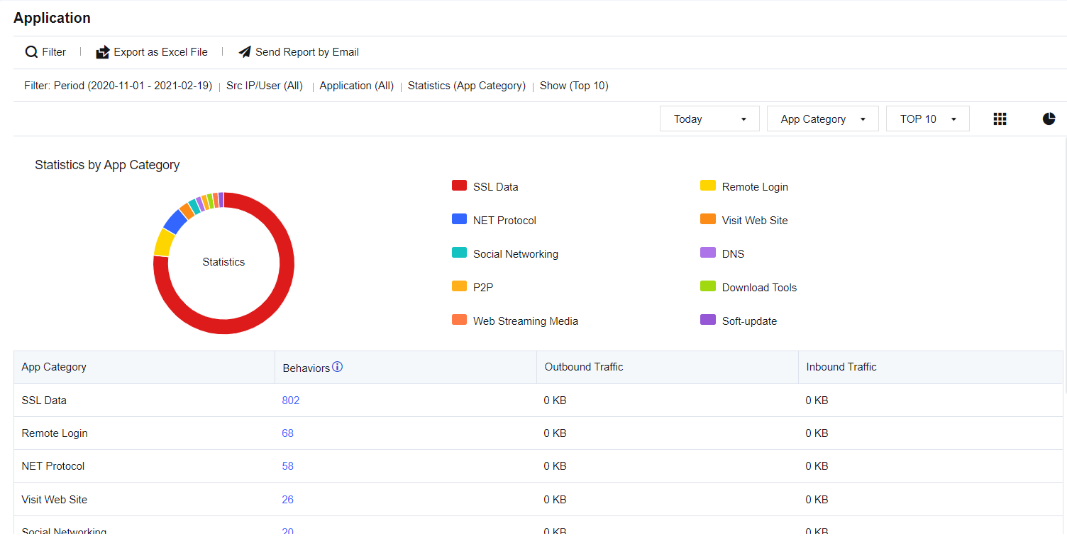

Step 2.View the query results that list which applications have the highest number of behaviors, as shown in the following figure.

A screenshot of a computer

Description automatically generated

Step 3.Click Behaviors to view the application control logs triggered by the application.

A black and white logo

Description automatically generated

It is necessary to enable the Log events function for Policy under Application Control Policy to log the application statistics.
