Athena NGFW (Next-Generation Firewall)

Athena NGFW (previously known as Network Secure) provides comprehensive protection for every network perimeter, ensuring the safety of your valuable assets, data, and users from emerging threats.
{{ $t('productDocDetail.guideClickSwitch') }}
{{ $t('productDocDetail.know') }}
{{ $t('productDocDetail.dontRemind') }}
8.0.95
{{sendMatomoQuery("Athena NGFW (Next-Generation Firewall)","Configuration Case")}}

Configuration Case

{{ $t('productDocDetail.updateTime') }}: 2025-12-25

The Network Secure deployed for an enterprise has been running stably. Now, this enterprise wants to view the risks of itself and its business assets detected by Network Secure to predict and identify the security risks of devices and business assets in time.

Configuration Steps:

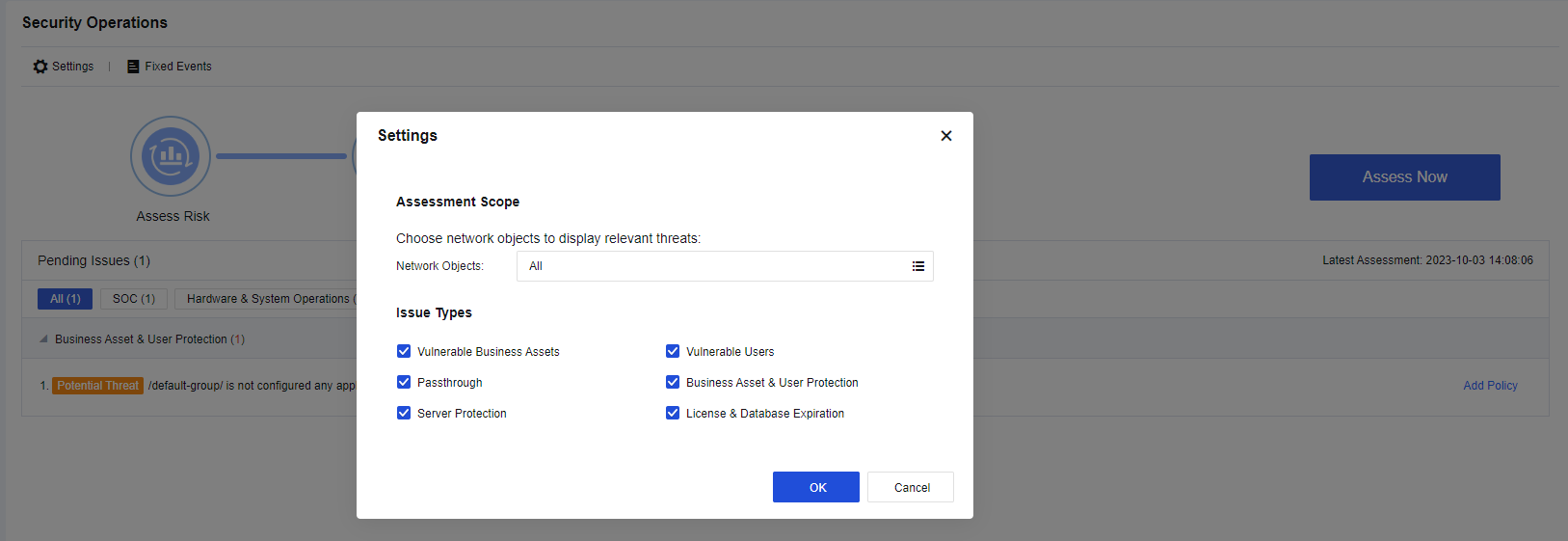

Step 1.Click Settings to set the assessment scope, as shown below.

A screenshot of a computer

Description automatically generated

Step 2.Click Access Now to assess the set assessment scope, as shown below.

A screenshot of a computer

Description automatically generated

A screenshot of a computer

Description automatically generated

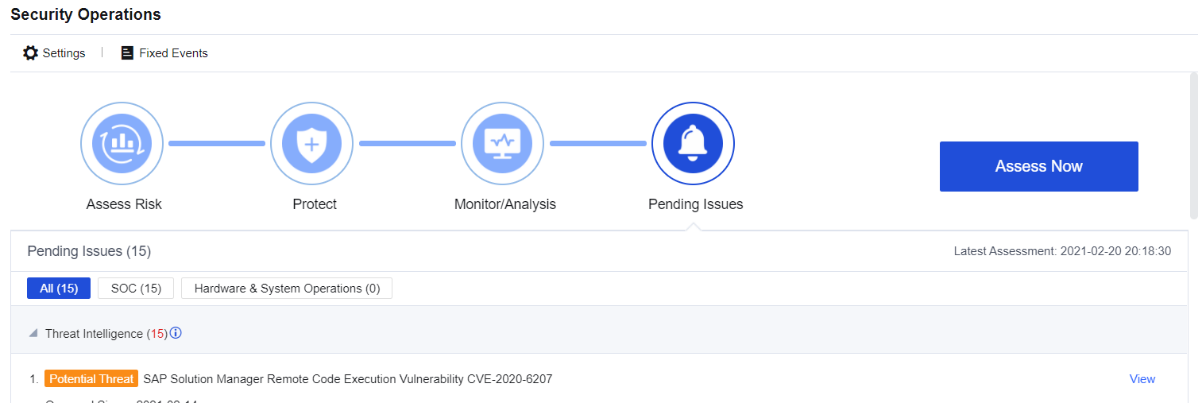

Step 3.After completing the assessment, view the assessment results, as shown below.

A screenshot of a computer

Description automatically generated

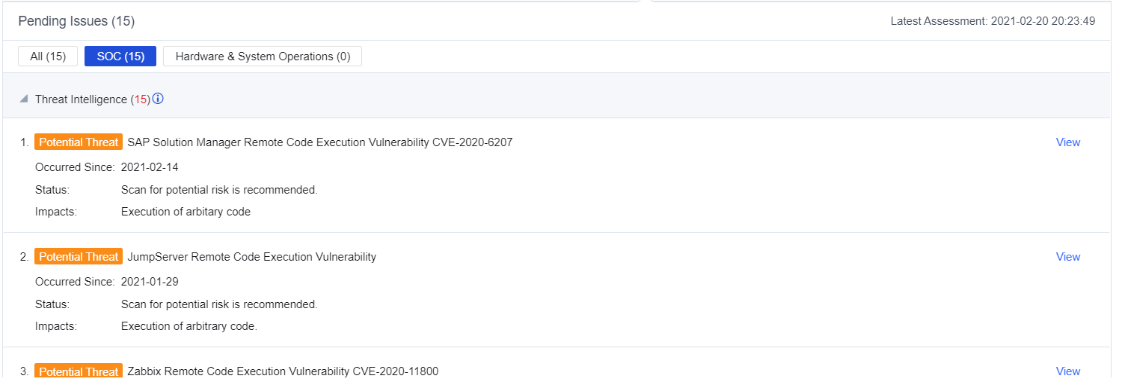

Step 4.Click SOC to query early warnings and resolutions for matched hot events, as well as business and user intrusion risks. This enables you to quickly identify high-risk businesses in the network and problems that need to be solved in time, as shown below.

A screenshot of a computer

Description automatically generated

Step 5.If an event has been processed or is a false positive, you can click Mark as fixed, and then you will not see the corresponding alarm later. Additionally, you can view Fixed Events in the processing records, as shown below.

A screenshot of a computer

Description automatically generated

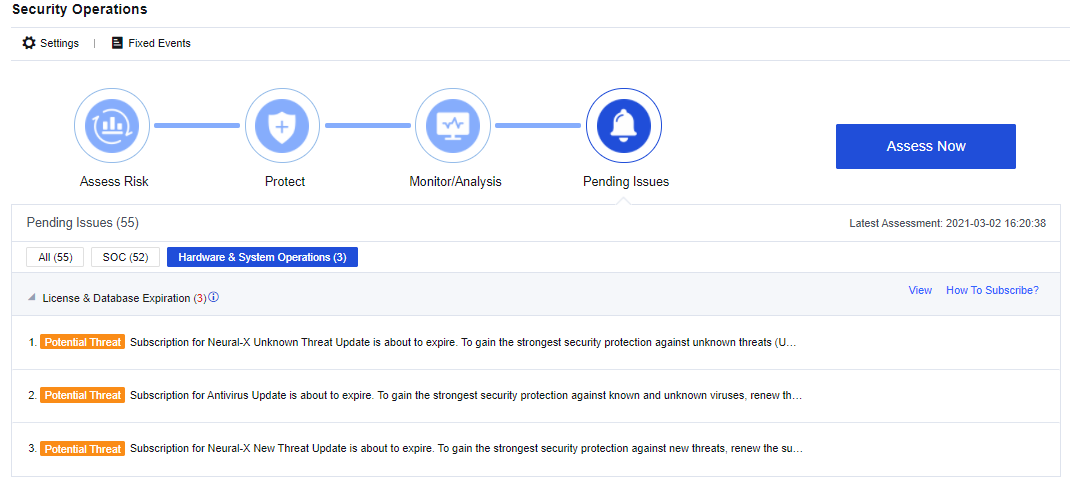

Step 6.Click Hardware & System Operations. You can view the problems existing in the system (such as License & Database Expiration), as shown below.

A screenshot of a computer

Description automatically generated

Step 7.You can fix the identified risks accordingly. For example, if the license is about to expire, you need to apply for a new license in time to prevent the rule database from not being updated.
